SCHNEIDER ELECTRIC XPSUAK32AP Force, DIN-Rail Relay Mounting, 16 Pins/Terminals, 48 to 240 VAC/DC, 2 Inputs
Item: CU2DFDModel: XPSUAK32APCross Ref: 787DL4
7 In Stock
Ships within 2 days via
10.00% off
€363.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Ac Contact Rating | 8A @ 250V |
| Application | Emergency Stops |
| Body Depth | 4 18/25" |
| Body Depth - Relay | 4 18/25" |
| Body Height | 3.94" |
| Body Width | 0.89" |
| Conventional Free Air Thermal Amps | 8A |
| Dc Contact Rating | Not Available |
| Delay Time | None |
| Delay Type | Fixed |
| Depth | 120 mm |
| Electrical Connection | Screw , Screw Terminal, Terminal Block Removable , Terminal Block Removable |
| Electrical Connection Type | Screw |
| Environmental Protection | Dust, Splash Resistant |
| For Use With | Emergency Stop, Guard Switch, Magnetic Switch, NPN Sensors, PNP Sensors, Proximity Safety Switch, RFID Safety Switch, Safety Light Curtain Or Sensing Mat/Edges |
| Frequency | 50/60 Hz |
| Height | 100 mm |
| Input Power Consumption (burden) | 3 W |
| Input Protection Type | Electronic, Internal |
| Input Voltage | 48-240V AC/DC |
| Ip Rating | IP20, IP40, IP54 |
| Max. Operating Temp. | 131°F |
| Maximum Line Resistance | 500 ohms |
| Minimum Operating Temperature | -13°F |
| Number Of Input Channels | 2 |
| Number Of Inputs | 2 |
| Number Of Pins | 16 |
| Number Of Pins - Relay | 16 |
| Number Of Terminals | 16 |
| Output Switch Configuration | (1) NC, (2) NO |
| Overall Depth | 3.9" |
| Overall Height - Relay | 3.93" |
| Power Consumption | 3 W |
| Product Type | Safety Module |
| Relay Mounting Style | Din Rail |
| Safety Reliability Data | DCAVG >= 99% Conforming To ISO 13849-1, HFT = 1 Conforming To IEC 62061, MTTFD > 30 yrs. Conforming To ISO 13849-1, PFHD = 1.61E-09 Conforming To IEC 61508-1, PFHD = 1.61E-09 Conforming To IEC 62061, PFHD = 1.61E-09 Conforming To ISO 13849-1, SFF > 99% Conforming To IEC 61508-1, SFF > 99% Conforming To IEC 62061HFT = 1 Conforming To IEC 61508-1, TYPE = B Conforming To IEC 61508-1 |
| Width | 22.5 mm |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 10.01 |
| Ship length (cm) | 11.99 |
| Ship width (cm) | 2.26 |
| Country of Origin | ID |
Product Variants
| Product | Model | Ac Contact Rating | Dc Contact Rating | Power Consumption | Body Width | Input Voltage | Delay Type | Number Of Input Channels | Number Of Inputs | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XPSUAF33AP | 8A @ 250V | Not Available | 3 W | 0.89" | 48-240V AC/DC | Fixed | 2 | 2 | €456.69 | |
 |
XPSUAF13AP | 8A @ 250V | Not Available | 2 W | 0.89" | 24V AC/DC | Fixed | 2 | 2 | €345.85 | |
 |
XPSUAK12AP | 1A @ 15V (NC), 3A @ 15V (No), 3A @ 1V (NC), 5A @ 1V (No) | 1A @ 13V (Nc), 3A @ 13V (No), 3A @ 1V (Nc), 5A @ 1V (No) | 2 W | 0.89" | 24V AC/DC | Adjustable | 2 | 2 | €367.50 | |
 |
XPSUS12AP | 1A @ 15V (NC), 3A @ 15V (No), 3A @ 1V (NC), 5A @ 1V (No) | 1A @ 13V (Nc), 3A @ 13V (No), 3A @ 1V (Nc), 5A @ 1V (No) | 2 W | 0.89" | 24V AC/DC | Adjustable | 2 | 2 | €455.00 | |
 |

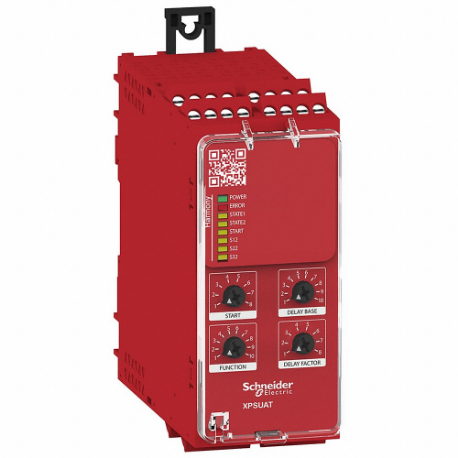

XPSUAT13A3AP | 1A @ 15V (NC), 3A @ 15V (No), 3A @ 1V (NC), 5A @ 1V (No) | 1A @ 13V (Nc), 3A @ 13V (No), 3A @ 1V (Nc), 5A @ 1V (No) | 3 W | 1.77" | 24V AC/DC | Adjustable | 1 | 3 | €668.18 | |
 |
XPSUDN13AP | 1A @ 15V (NC), 3A @ 15V (No), 3A @ 1V (NC), 5A @ 1V (No) | 1A @ 13V (Nc), 3A @ 13V (No), 3A @ 1V (Nc), 5A @ 1V (No) | 4.5 W | 1.77" | 24V AC/DC | Adjustable | 6 | - | €519.29 |
