SCHNEIDER ELECTRIC XB6DF3B1B Illuminated Push Button
Item: CU2BTLModel: XB6DF3B1BCross Ref: 55WU47
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Illuminated Push Button |
| Ac Contact Rating | 1.5A @ 240V, 3A @ 120V |
| Action | Maintained |
| Action Type | Momentary |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Color | Green |
| Contact Form | 1 NO |
| Dc Contact Rating | 0.1A @ 250V, 0.22A @ 125V |
| Display Qty | 1 |
| Head Material | Plastic |
| Head/lens Color | Green |
| Ip Rating | IP65 |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 12-24V AC/DC |
| Lamp Voltage | 12-24V AC/DC |
| Lamp Voltage - Maximum | 24V AC/DC |
| Legend | No Legend |
| Legend/background Color | No Legend |
| Maintained Action Release | Push |
| Manufacturer Warranty Length | 18 Months |
| Nema Contact Rating Designation | B300/R300 |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Illuminated |
| Operator Material | Plastic |
| Operator Voltage Rating - Maximum | 250V DC |
| Overall Depth | 2.24" |
| Overall Height | 0.71" |
| Overall Width | 0.94" |
| Panel Mounting Hole Diameter | 16 mm |
| Product Datasheet | schneider-electric-xb6df3b1b.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Series | XB6 Series |
| Terminal Connection | Quick Connect |
| Type Of Operator | Rectangular Flush Button |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Terminal Connection | Ip Rating | Action | Lamp Module Type | Lamp Voltage | Contact Form | Legend | Bezel Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

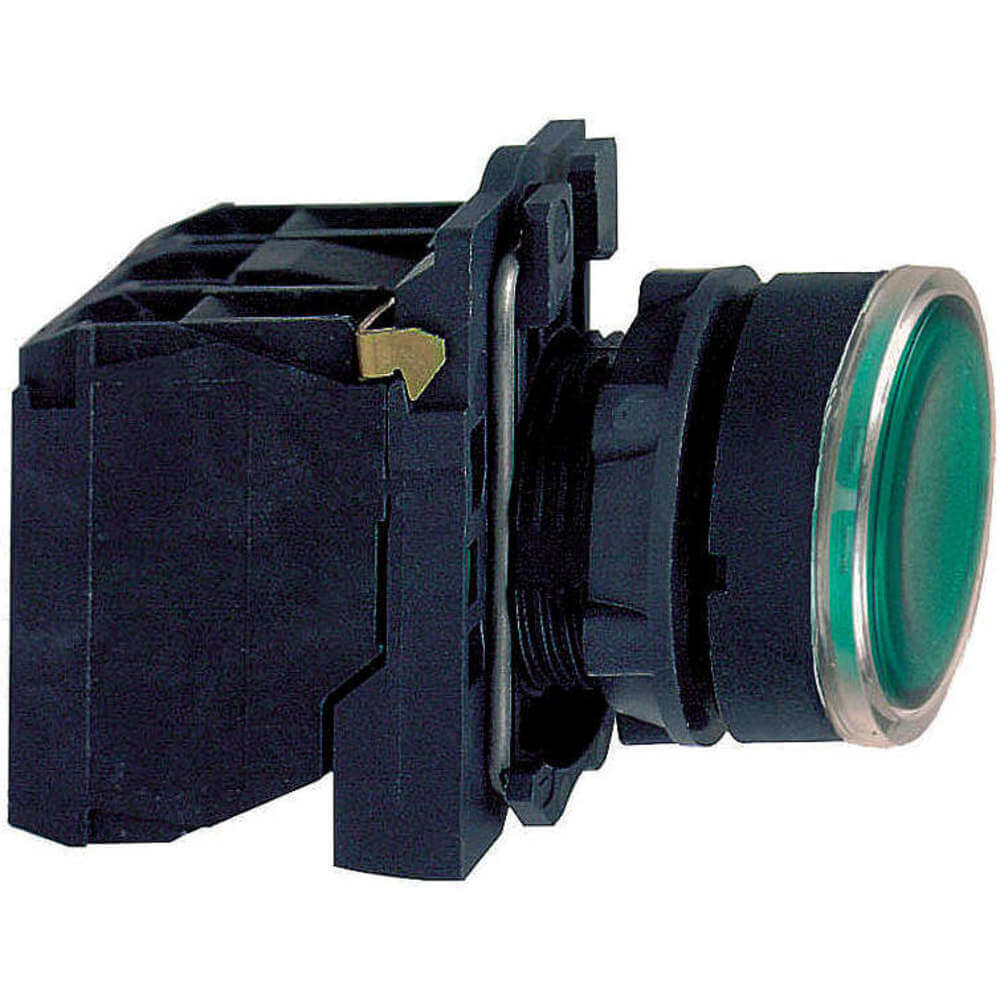

XB5AW33B5 | Screw Clamp | IP66, IP67, IP69, IP69K | Momentary | Full Voltage | 24V AC | 1NO/1NC | - | Plastic | €200.78 | |
 |
XB5AW34B5 | Screw Clamp | IP66, IP67, IP69, IP69K | Momentary | Full Voltage | 24V AC | 1NO/1NC | - | Plastic | €201.30 | |
 |
XB5AW35B5 | Screw Clamp | IP66, IP67, IP69, IP69K | Momentary | Full Voltage | 24V AC | 1NO/1NC | - | Plastic | €205.03 | |
 |
XB6ECW4B2P | Quick Connect | IP65 | Momentary | Full Voltage | 24V DC | DPDT | - | Plastic | €26.97 | |
 |
XB6ECW3B2P | Quick Connect | IP65 | Momentary | Full Voltage | 24V DC | DPDT | No Legend | Plastic | €29.32 | |
 |
9001KR8P1RH25 | Pressure Plate | - | - | Transformer | - | - | - | Die Cast Aluminum | €488.30 | |
 |
XB5AW33G5 | Screw Clamp | IP66, IP67, IP69, IP69K | Momentary | Full Voltage | 110-120V AC | 1NO/1NC | - | Plastic | €206.01 |
