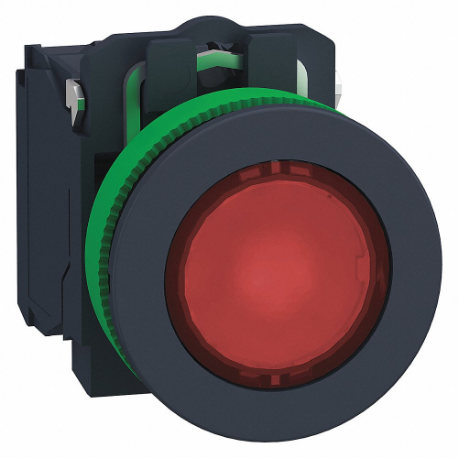

SCHNEIDER ELECTRIC XB5FW34B5 Push Button, Momentary, Red, 24 V AC/Dc, Led, 1No/1Nc, Flush Button
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€181.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Momentary |
| Action Type | Momentary |
| Amps Consumption | 18 mA |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Cap/operator Or Lens Colour | Red |
| Color | Red |
| Contact Form | 1NO/1NC |
| Contact Rating | 0.1A @ 600V 0.27A @ 250V 0.55A @ 125V 1.2A @ 600V 3A @ 240V 6A @ 120V |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Device Presentation | Complete Product |
| Display Qty | 1 |
| Features | Spring Return |
| Finish | Chrome Plated |
| Fixing Collar Material | Plastic |
| Head Material | Plastic |
| Head/lens Color | Red |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 24V AC/DC |
| Lamp Voltage | 24V AC/DC |
| Lamp Voltage - Maximum | 24V AC/DC |
| Legend | No Legend |
| Legend/background Color | No Legend |
| Mechanical Operating Durability | 1 x 10^7 |
| Mounting Diameter | 30.5 mm |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 4X, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Illuminated |
| Operator Material | Plastic |
| Operator Voltage Rating - Maximum | 600V AC/DC |
| Overall Depth | 2.17" |
| Overall Height | 1.65" |
| Overall Width | 1 11/25" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Datasheet | schneider-electric-xb5fw34b5.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Antimicrobial, Vibration Resistant |
| Series | XB5 Series |
| Shape Of Signaling Unit Head | Round |
| Signalling Type | Steady |
| Terminal Connection | Screw Clamp |
| Type Of Operator | Flush Button |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 4.2 |
| Ship length (cm) | 5.5 |
| Ship width (cm) | 3.66 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Terminal Connection | Ip Rating | Action | Lamp Module Type | Lamp Voltage | Contact Form | Legend | Bezel Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB5AW33B5 | Screw Clamp | IP66, IP67, IP69, IP69K | Momentary | Full Voltage | 24V AC | 1NO/1NC | - | Plastic | €200.78 | |
 |
XB5AW34B5 | Screw Clamp | IP66, IP67, IP69, IP69K | Momentary | Full Voltage | 24V AC | 1NO/1NC | - | Plastic | €201.30 | |
 |
XB5AW35B5 | Screw Clamp | IP66, IP67, IP69, IP69K | Momentary | Full Voltage | 24V AC | 1NO/1NC | - | Plastic | €205.03 | |
 |
XB6ECW4B2P | Quick Connect | IP65 | Momentary | Full Voltage | 24V DC | DPDT | - | Plastic | €26.97 | |
 |
XB6ECW3B2P | Quick Connect | IP65 | Momentary | Full Voltage | 24V DC | DPDT | No Legend | Plastic | €29.32 | |
 |
9001KR8P1RH25 | Pressure Plate | - | - | Transformer | - | - | - | Die Cast Aluminum | €488.30 | |
 |
XB5AW33G5 | Screw Clamp | IP66, IP67, IP69, IP69K | Momentary | Full Voltage | 110-120V AC | 1NO/1NC | - | Plastic | €206.01 |
