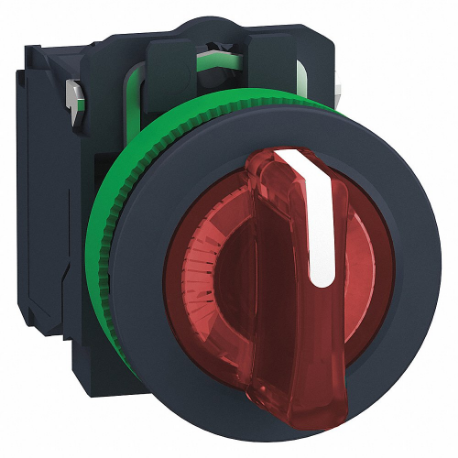

SCHNEIDER ELECTRIC XB5FK134G5 Illuminated Selector Switch, 30 mm Size, 3 Position
Item: CU2BUHModel: XB5FK134G5Cross Ref: 55WK24
7 In Stock
Ships within 2 days via
10.00% off
€195.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Illuminated Selector Switch |
| Ac Contact Rating | 1.2A @ 600V, 3A @ 240V, 6A @ 120V |
| Action | Maintained/Maintained/Maintained |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Cam | No Cam Included |
| Color | Red |
| Contact Block Material | Plastic |
| Contact Form | 1NO/1NC |
| Contact Rating | 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Device Presentation | Complete Product |
| Hazardous Location Specification | Not Rated |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Voltage | 110-120V AC |
| Lamp Voltage - Maximum | 120V AC |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 30.5 mm |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Positions | 3 |
| Operator Head Color | Red |
| Operator Head Material | Plastic |
| Operator Illumination | Illuminated |
| Overall Depth | 2.8" |
| Overall Height | 1.65" |
| Overall Width | 1 11/25" |
| Panel Mounting Hole Diameter | 30 mm |
| Position | 3 |
| Series | XB5 Series |
| Shape Of Signaling Unit Head | Round |
| Standards | Csa, Ul Listed |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Type | Short Lever |
| Switch Operation @ Position D | No Fourth Position |
| Type Of Operator | Lever |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 4.2 |
| Ship length (cm) | 7.1 |
| Ship width (cm) | 3.66 |
| Country of Origin | FR |
Product Variants
| Product | Model | Number Of Positions | Cam | Ip Rating | Basic Material | Lamp Voltage | Bezel Material | Switch Operation @ Position D | Switch Operation @ Position C | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB5FK125G5 | 2 | No Cam Included | IP66, IP67, IP69, IP69K | Plastic | 110-120V AC | Plastic | No Fourth Position | No Third Position | €190.37 | |
 |
XB5FK124M5 | 2 | No Cam Included | IP66, IP67, IP69, IP69K | Plastic | 230-240V AC | Plastic | No Fourth Position | No Third Position | €228.11 | |
 |
XB5FK123B5 | 2 | No Cam Included | IP66, IP67, IP69, IP69K | Plastic | 24V DC | Plastic | No Fourth Position | No Third Position | €192.15 | |
 |
XB5FK125M5 | 2 | No Cam Included | IP66, IP67, IP69, IP69K | Plastic | 230-240V AC | Plastic | No Fourth Position | No Third Position | €190.37 | |
 |
XB5FK124G5 | 2 | No Cam Included | IP66, IP67, IP69, IP69K | Plastic | 110-120V AC | Plastic | No Fourth Position | No Third Position | €220.51 | |
 |
9001K11J35LY | 2 | E | IP66 | Metal | - | Metal | No Fourth Position | No Third Position | €306.93 | |
|
XB5FK125B5 | 2 | No Cam Included | IP66, IP67, IP69, IP69K | Plastic | 24V DC | Plastic | No Fourth Position | No Third Position | €193.60 |
