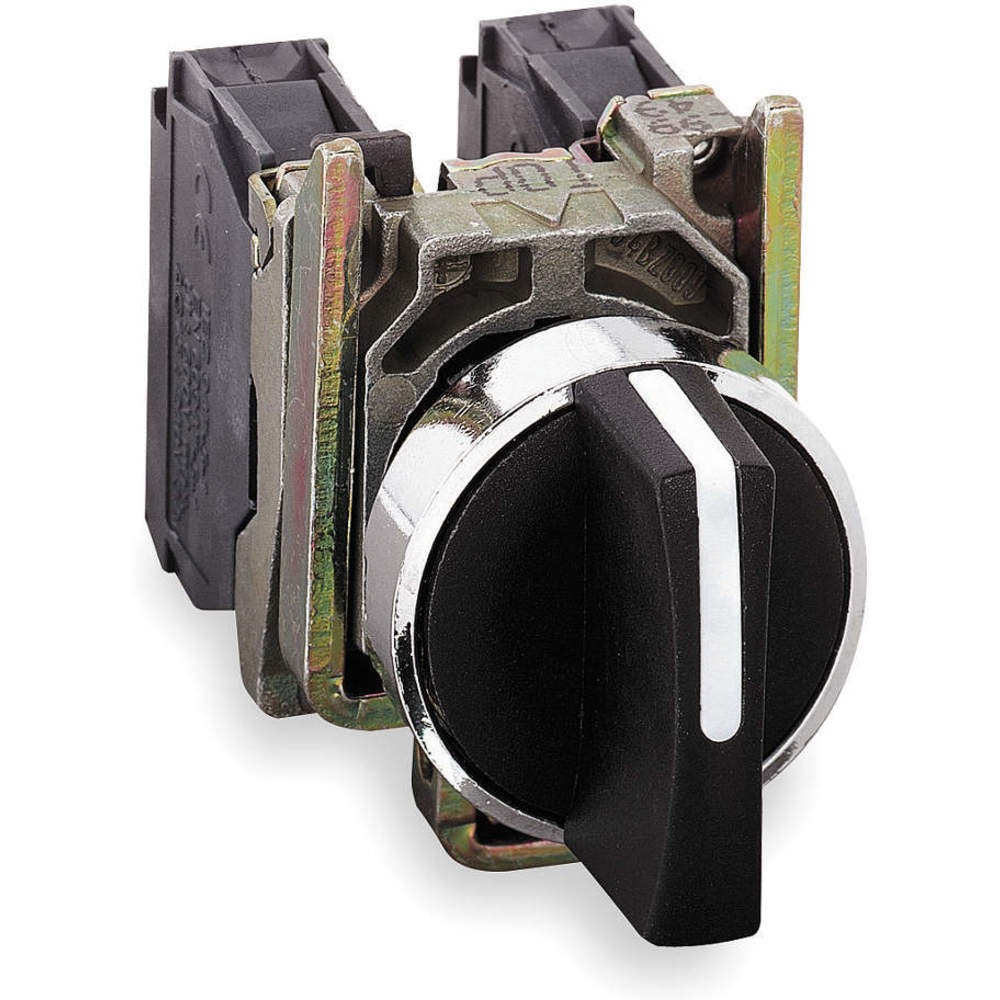

SCHNEIDER ELECTRIC XB4BD53 Non-Illuminated Selector Switch 22mm 3 Position Lever
Item: AJ2JHYModel: XB4BD53Cross Ref: 6HK61
7 In Stock
Ships within 2 days via
13.00% off
€78.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Select Switch |
| Ac Contact Rating | 1.2A @ 600V, 3A @ 240V, 6A @ 120V |
| Action | Momentary/Maintained/Momentary |
| Action Type | Momentary/Maintained/Momentary |
| Basic Material | Metal |
| Bezel Color | Chrome |
| Bezel Finish | Chrome Plated , Metal |
| Bezel Material | Metal |
| Cam | No Cam |
| Color | Black |
| Contact Block Material | Metal |
| Contact Form | 2NO |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Device Presentation | Complete Product |
| Fixing Collar Material | Zamak |
| Hazardous Location Specification | Not Rated |
| Ip Rating | IP67, IP69, IP69K |
| Key Removal | No Key |
| Mounting Dia. | 22 mm |
| Nema Contact Rating Designation | B600/Q600 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12, NEMA 13 |
| No. Of Positions | 3 |
| Operator Head Color | Black |
| Operator Head Material | Plastic |
| Operator Head Material | Polyamide |
| Operator Illumination | Non Illuminated |
| Overall Depth | 2.68" |
| Overall Height | 1.85" |
| Overall Width | 1.18" |
| Panel Mounting Hole Dia. | 22 mm |
| Positive Opening | Without |
| Product Datasheet | schneider-electric-xb4bd21.pdf |
| Series | XB4 Series |
| Shape Of Signaling Unit Head | Round |
| Switch Function @ 1st Position | Momentary |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 3rd Position | Momentary |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Type | Short Lever |
| Switch Operation @ Position A | XO |
| Switch Operation @ Position B | OO |
| Switch Operation @ Position C | OX |
| Switch Operation @ Position D | No Fourth Position |
| Type Of Operator | Lever |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 4.7 |
| Ship length (cm) | 6.8 |
| Ship width (cm) | 3 |
| Country of Origin | FR |
Product Details:
- Bezel Color : Chrome
Documentation:
Product Variants
| Product | Model | Panel Mounting Hole Dia. | Color | Bezel Material | Operator Head Material | No. Of Positions | Series | Contact Form | Basic Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9001KS11BH1 | 30 mm | Black | - | Polycarbonate | 2 | 9001K Series | SPDT | Metal | €159.24 | |
|
9001KS11BH13 | 30 mm | Black | Metal | Polycarbonate | 2 | 9001K Series | 1NO, 1NC | Metal | €153.98 | |
|
9001KS11BH2 | 30 mm | Black | Metal | Polycarbonate | 2 | 9001K Series | DPDT | Metal | €202.77 | |
 |
9001KS43BH13 | 30 mm | Black | Metal | Polycarbonate | 3 | 9001K Series | 1NO, 1NC | Metal | €154.85 | |
 |
XB5AG21 | 22 mm | Black | Plastic | - | 2 | XB5 Series | 1NO | Plastic | €138.74 | |
 |
XB5AJ21 | 22 mm | Black | Plastic | Plastic | 2 | XB5 Series | 1NO | Plastic | €60.59 | |
 |
XB5AD53 | 22 mm | Black | Plastic | Plastic | 3 | XB5 Series | 2NO | Plastic | €87.00 |
