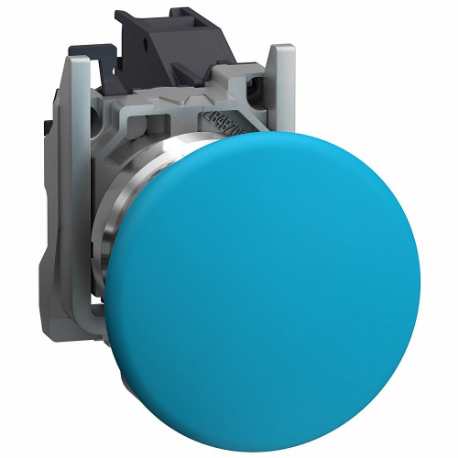

SCHNEIDER ELECTRIC XB4BC61GEX Push Button, Blue, 22 mm Size, 1 No, Metal
Item: CU2CYNModel: XB4BC61GEXCross Ref: 292MH5
7 In Stock
Ships within 2 days via
10.00% off
€198.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Momentary |
| Action Type | Maintained |
| Bezel Material | Chrome |
| Color | Blue |
| Contact Form | 1 NO |
| Contact Rating | 10A @ 415V AC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D, Class Ii, Div 2, Group E, F, G, Class Iii, Div 1 And 2 |
| Head Material | Metal |
| Head/lens Color | Blue |
| Ip Rating | IP65 |
| Mechanical Operating Durability | 5 x 10^6 |
| Mushroom Head Diameter | 40 mm |
| Nema Contact Rating Designation | A600/Q300 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 167°F |
| Operating Temperature - Minimum | -4°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Operator Voltage Rating - Maximum | 415V AC |
| Overall Depth | 3.8" |
| Overall Height | 1.18" |
| Overall Width | 1.82" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Safety Rating | Zone 2 |
| Series | XB4 Series |
| Terminal Connection | Screw Clamp |
| Type Of Operator | Mushroom Head Push Button |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Product Variants
| Product | Model | Type Of Operator | Color | Bezel Material | Ip Rating | Operating Force | Head Material | Contact Form | Number Of Operators | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB4BP21GEX | Extended Push Button | Black | Chrome | IP66 | 3.962N | Metal | 1 NO | 1 | €178.82 | |
 |
XB4BP61GEX | Extended Push Button | Red | Chrome | IP66 | - | Metal | 1 NO | 1 | €282.59 | |
 |
XB4BP42GEX | Extended Push Button | Red | Metal | - | 2.873N | Metal | 1 NO | 1 | €276.27 | |
|
XB4BP482GEX | Extended Push Button | Red | Chrome | IP66 | - | Metal | - | 1 | €287.82 | |
 |
XB4BP181GEX | Extended Push Button | White | Chrome | IP66 | - | Metal | 1 NO | 1 | €282.59 | |
 |
XB4BP581GEX | Extended Push Button | Yellow | Chrome | IP66 | - | Metal | 1 NO | 1 | €282.18 | |
|
XB4BP51GEX | Extended Push Button | Yellow | Chrome | IP66 | - | Metal | 1 NO | 1 | €282.59 |
