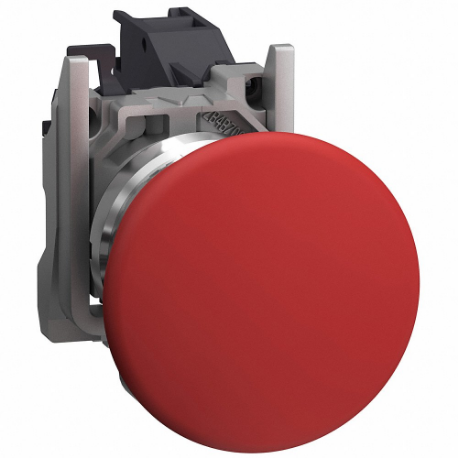

SCHNEIDER ELECTRIC XB4BC42GEX Push Button, Red, 22 mm Size, 1 No, Metal
Item: CU2DADModel: XB4BC42GEXCross Ref: 292MH3
7 In Stock
Ships within 2 days via
13.00% off
€152.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Momentary |
| Action Type | Maintained |
| Bezel Material | Chrome |
| Color | Red |
| Contact Rating | 10A @ 415V AC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Embedding Depth | 58 mm |
| Fixing Collar Material | Zamak |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D, Class Ii, Div 2, Group E, F, G, Class Iii, Div 1 And 2 |
| Head Material | Metal |
| Head/lens Color | Red |
| Ip Rating | IP65 |
| Max. Operating Temp. | 167°F |
| Max. Operator Voltage Rating | 415V AC |
| Mechanical Operating Durability | 5 x 10^6 |
| Min. Operating Temp. | -4°F |
| Mounting Dia. | 22 mm |
| Mushroom Head Dia. | 40 mm |
| Nema Contact Rating Designation | A600/Q300 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Contact Form | 1 , NC |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operating Force | 2.873N |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 3.8" |
| Overall Height | 1.18" |
| Overall Width | 1.82" |
| Panel Mounting Hole Dia. | 22 mm |
| Positive Opening | With |
| Product Datasheet | schneider-electric-xb4bc42gex.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Rated Insulation Voltage | 415V |
| Safety Rating | Zone 2 |
| Series | XB4 Series |
| Shape Of Signaling Unit Head | Round |
| Terminal Connection | Screw Clamp |
| Type Of Operator | Mushroom Head Push Button |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Bezel Material | Head/lens Color | Color | Type Of Operator | Overall Depth | Push Button Style | Ip Rating | Positive Opening | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB4BP21GEX | Chrome | Black | Black | Extended Push Button | 2.83" | Flush | IP66 | Without | €138.08 | |
 |
XB4BP61GEX | Chrome | Blue | Red | Extended Push Button | 2.83" | Flush | IP66 | - | €214.45 | |
 |
XB4BP42GEX | Metal | - | Red | Extended Push Button | - | - | - | With | €214.72 | |
|
XB4BP482GEX | Chrome | Red | Red | Extended Push Button | 2.83" | Flush | IP66 | - | €223.70 | |
 |
XB4BP181GEX | Chrome | White | White | Extended Push Button | 2.83" | Flush | IP66 | - | €214.45 | |
 |
XB4BP581GEX | Chrome | Yellow | Yellow | Extended Push Button | 2.83" | Flush | IP66 | - | €214.15 | |
|
XB4BP51GEX | Chrome | Yellow | Yellow | Extended Push Button | 2.83" | Flush | IP66 | - | €214.45 |
