SCHNEIDER ELECTRIC XALACS2 Complete Control Station, 1Nc/1No, Arret/Marche, Push Button, 2 Operators, 13/4X
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€105.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Control Station |
| Ac Contact Rating | 1.2A @ 600V, 3A @ 240V, 6A @ 120V |
| Application | Start-Stop Function |
| Basic Material | Polycarbonate |
| Contact Rating | 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Enclosure Color | Dark Gray, Light Gray |
| Enclosure Material | Plastic |
| Hub Size | 9/16" |
| Hub Style | Dead End |
| Ip Rating | IP66 |
| Lamp Module Voltage | Module Not Included |
| Legend | Arret, Marche |
| Nema Enclosure Rating | NEMA 4X, NEMA 13 |
| No. Of Contact Form | 2 , NO/NC |
| Number Of Operators | 2 |
| Number Of Pilot Lights | 0 |
| Number Of Speeds | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Action | (2) Momentary |
| Operator Color | Green, Red |
| Operator Configuration | 2 Push Buttons |
| Operator Configuration Type | (2) Push Buttons |
| Operator Legend | Start, Stop |
| Overall Depth | 2.44" |
| Overall Height | 4.17" |
| Overall Width | 2 17/25" |
| Panel Cutout Diameter | 22 mm |
| Product Datasheet | schneider-electric-xalacs2.pdf |
| Product Type | Control Station |
| Push Button Type | Flush |
| Resistance Properties | Chemical Resistant |
| Series | Harmony Series |
| Type Of Operator | Push Button |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Number Of Operators | Contact Form | Depth | Height | Action Type | Number Of Pilot Lights | Enclosure Material | Enclosure Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

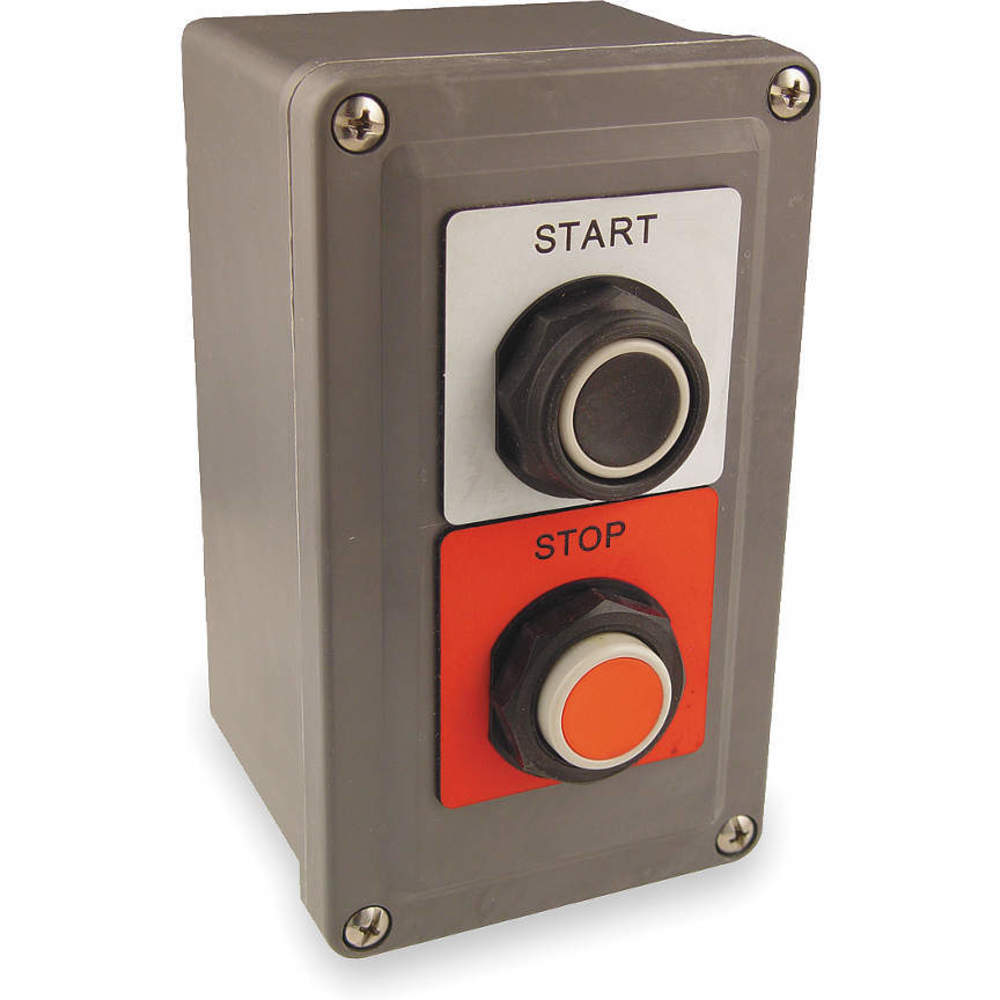

9001SKY201 | 2 | 1NO/2NC | - | - | - | - | Plastic | Gray | €651.38 | |
 |
9001KYK14 | 1 | 1NO/1NC | - | 3.53" | Momentary | - | Zinc | Gray | €514.27 | |
 |
9001KYK21 | 2 | 2NO/2NC | 5 3/4" | 3.53" | - | - | Zinc | Gray | €596.87 | |
 |

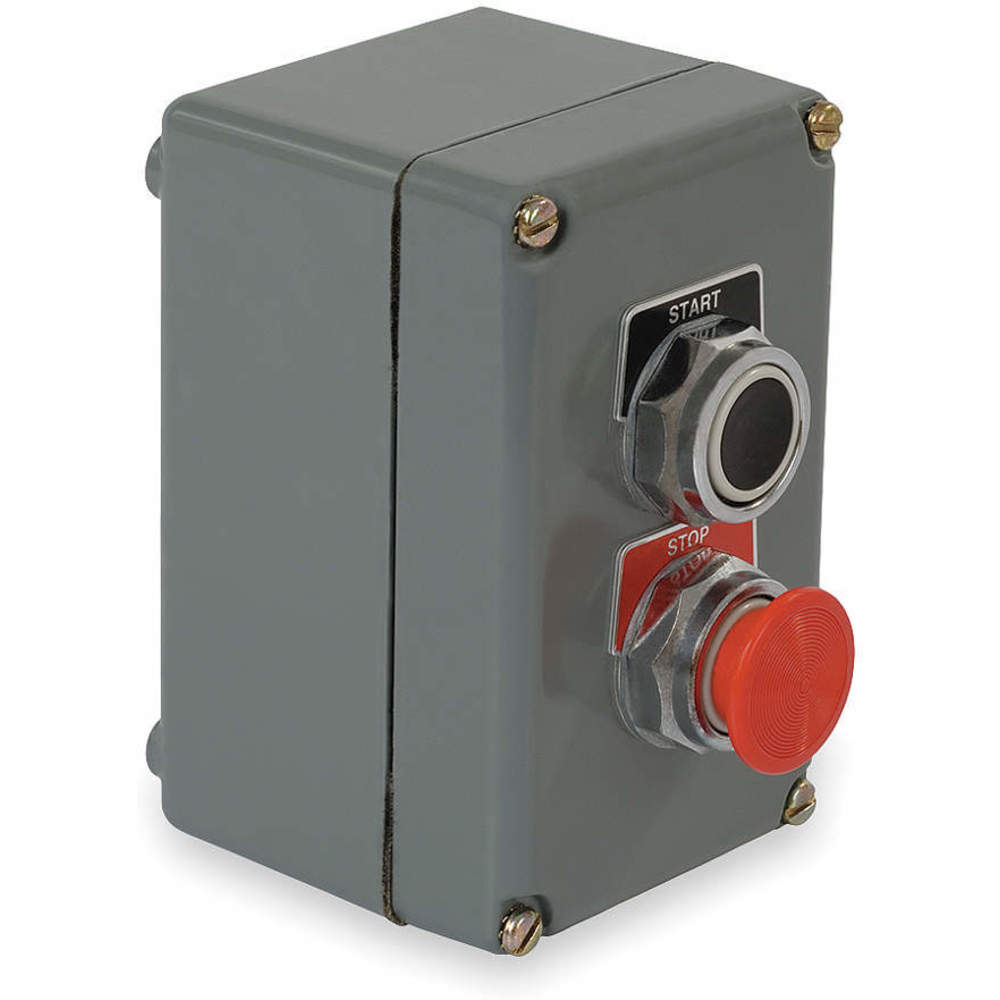

9001KYK22 | 2 | 2NO/2NC | 5 3/4" | 3.53" | Momentary/Momentary | - | Zinc | Gray | €431.64 | |
 |
9001KYK23 | 2 | 2NO/2NC | 5 3/4" | 3.53" | Momentary | - | Zinc | Gray | €701.75 | |
 |
9001KYK25 | 2 | 1NO/1NC | 5 3/4" | 3.53" | - | - | Zinc | Gray | €621.25 | |
 |
9001KYK26 | 2 | 2NO/2NC | 5 3/4" | 3.53" | - | - | Zinc | Gray | €569.66 |
