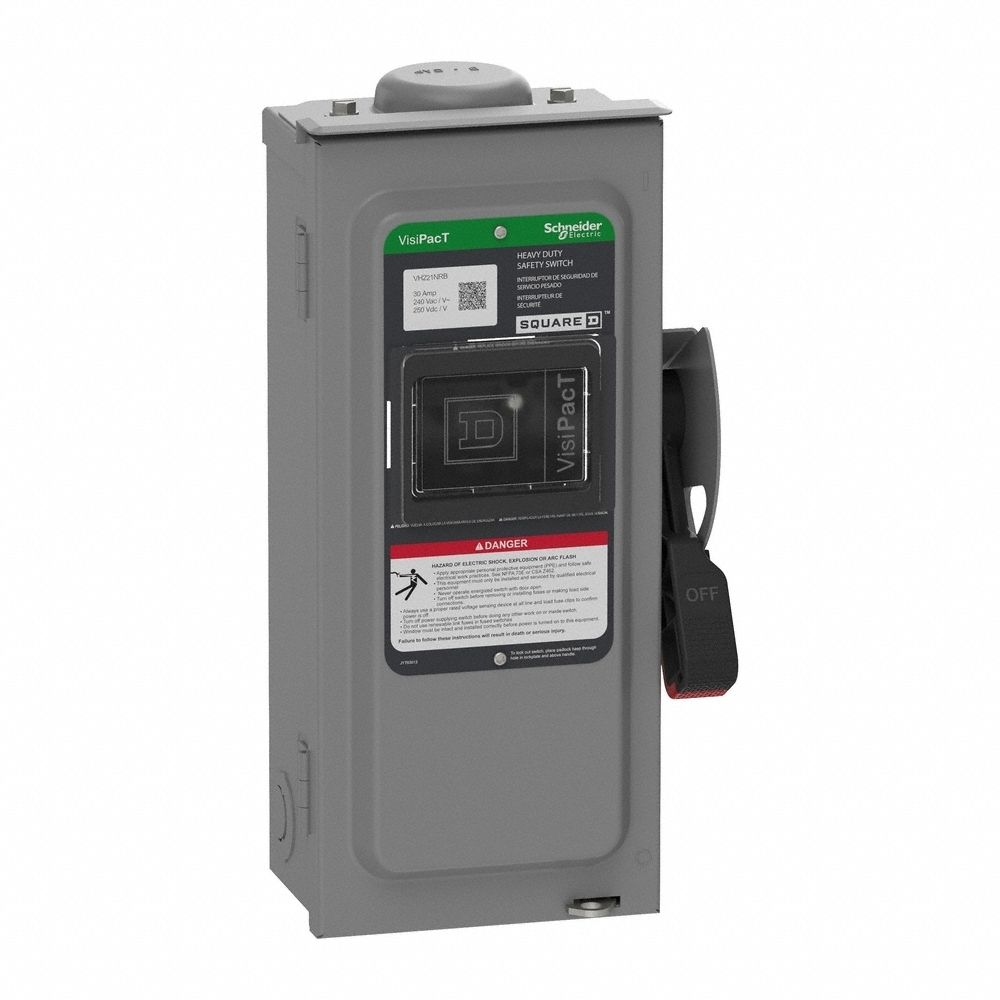

SCHNEIDER ELECTRIC VH221NRB Safety Switch, Fusible, 30 A, Single Ph, 240V AC, Galvanised anized Steel
Item: EA3RGUModel: VH221NRBCross Ref: 808HZ7
7 In Stock
Ships within 2 days via
13.00% off
€339.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Safety Switch |
| Amps Rating | 30A |
| Class | Class R |
| Class R Fuse Kit | Mfr. No. RFK03L |
| Contact Form | DPST |
| Depth | 5" |
| Disconnector Device Type | Fusible Disconnect |
| Duty | Heavy Duty |
| Electrical Connection | Lugs |
| Enclosure Height | 10" to 19 3/4" |
| Enclosure Material | Galvanized Steel |
| Enclosure Type | Enclosed |
| Enclosure Width | 0" to 9 3/4" |
| Environment | Indoor, Outdoor |
| Fuse Type | Class H, Class K, Class R, Class J |
| Fuse Ul Class | H, K |
| Handle Color | Black, Red |
| Height | 14 3/4" |
| Housing Material | Galvannealed Steel |
| Hp @ 240v | 3 hp |
| Hp @ 480v | Not Rated |
| Hp @ 600v | Not Rated |
| Includes | Dual Cover Interlock |
| Ip Rating | IP14 |
| Max. Enclosure Depth | 5.11" |
| Nema Degree Of Protection | NEMA 3R Galvannealed Steel |
| Nema Enclosure Rating | 3R , NEMA 3R |
| No. Of Poles | 2 |
| No. Of Wire | 3 |
| Phase | 1 |
| Product Datasheet | schneider-electric-vh221awkgl.pdf |
| Product Or Component Type | Single Throw Safety Switch |
| Protection Method | Fusible |
| Ue Rated Operational Voltage | 250V DC/240V AC |
| Voltage | 240V AC |
| Width | 6 1/2" |
| Wiring Configuration | 3 Wire (2p + N) |
Shipping Info:
| Ship weight (kg) | 4.28 |
| Ship height (cm) | 13.46 |
| Ship length (cm) | 40.89 |
| Ship width (cm) | 19.81 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Height | Enclosure Material | Depth | Hp @ 240v | Enclosure Width | Enclosure Height | No. Of Wire | Nema Enclosure Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

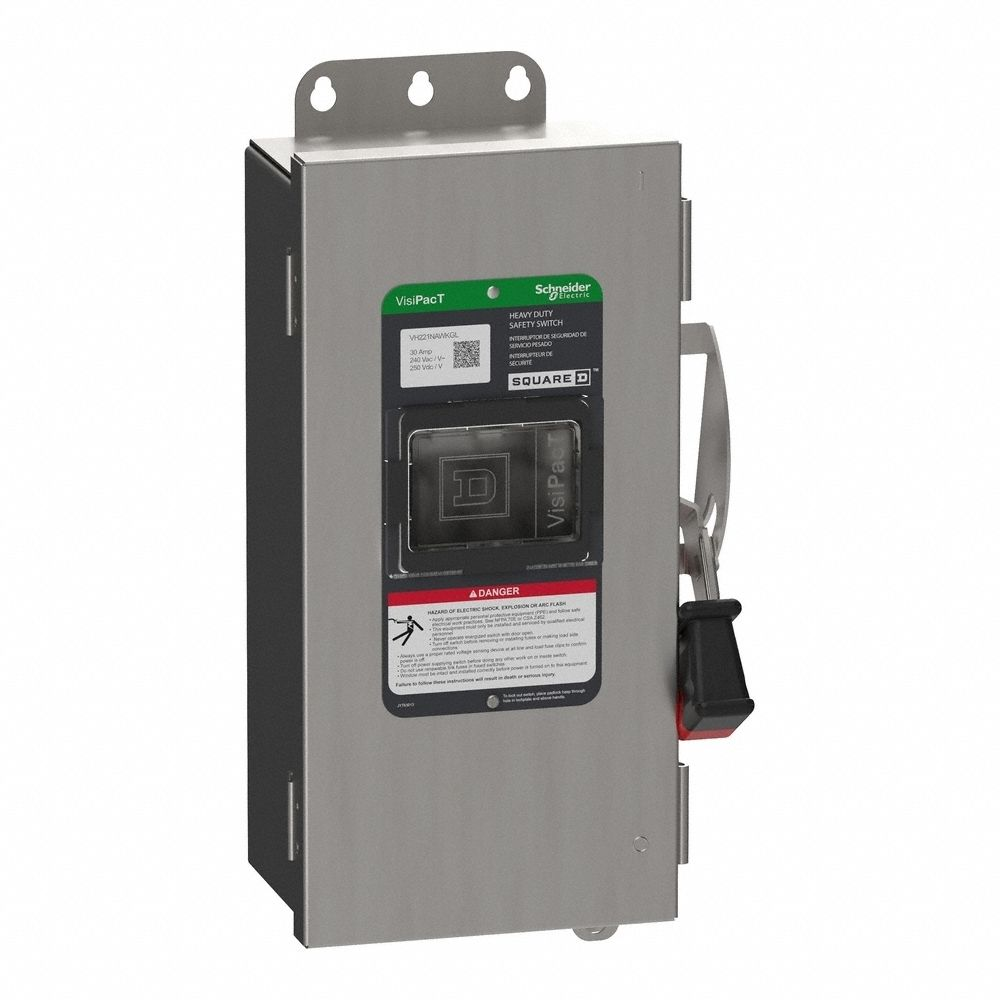

VH221AWKGL | 14 1/2" | Galvanized Steel | 5 1/4" | 3 hp | 0" to 9 3/4" | 10" to 19 3/4" | 2 | 12 , NEMA 12 | €554.18 | |
 |
VH221DSGL | 15" | Stainless Steel | 5 1/2" | 3 hp | 0" to 9 3/4" | 10" to 19 3/4" | 2 | 4X , NEMA 4X | €1,749.12 | |
 |

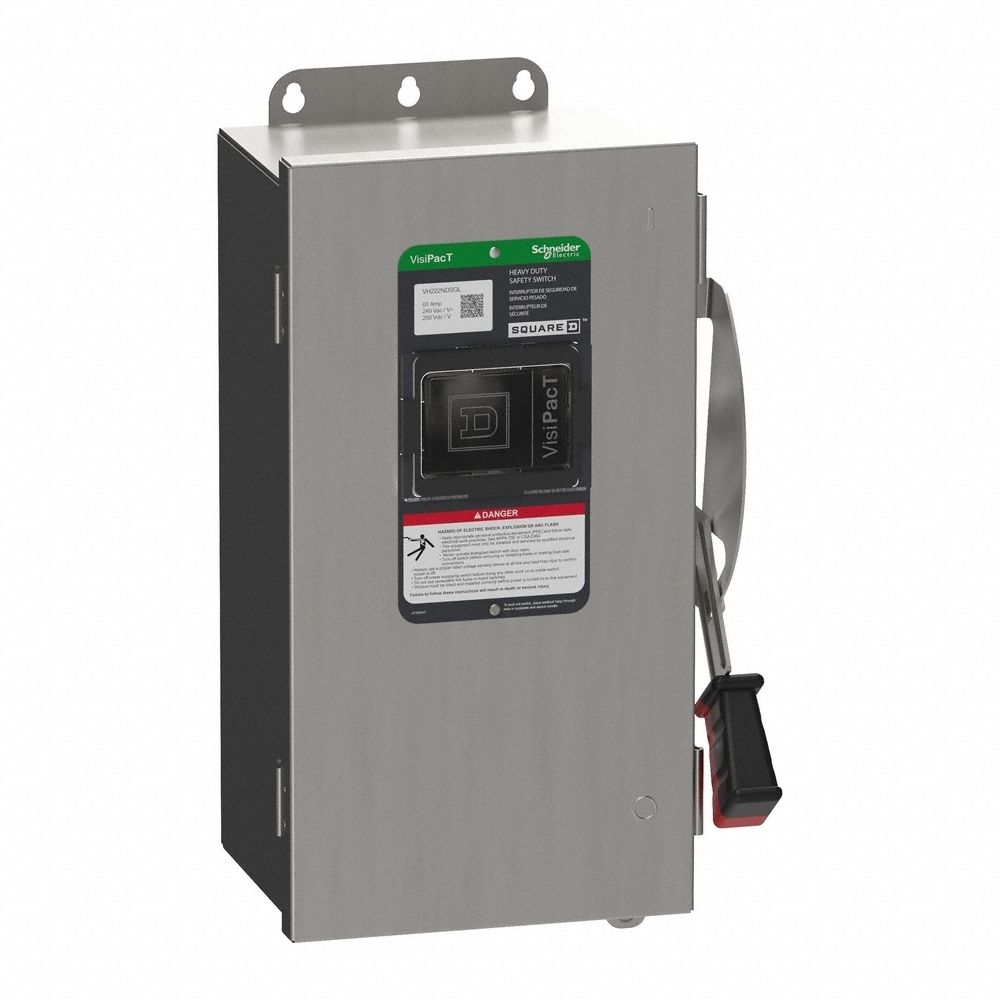

VH222AWKGL | 14 1/2" | Galvanized Steel | 5 1/4" | 15 hp | 0" to 9 3/4" | 10" to 19 3/4" | 2 | 12 , NEMA 12 | €719.83 | |
 |

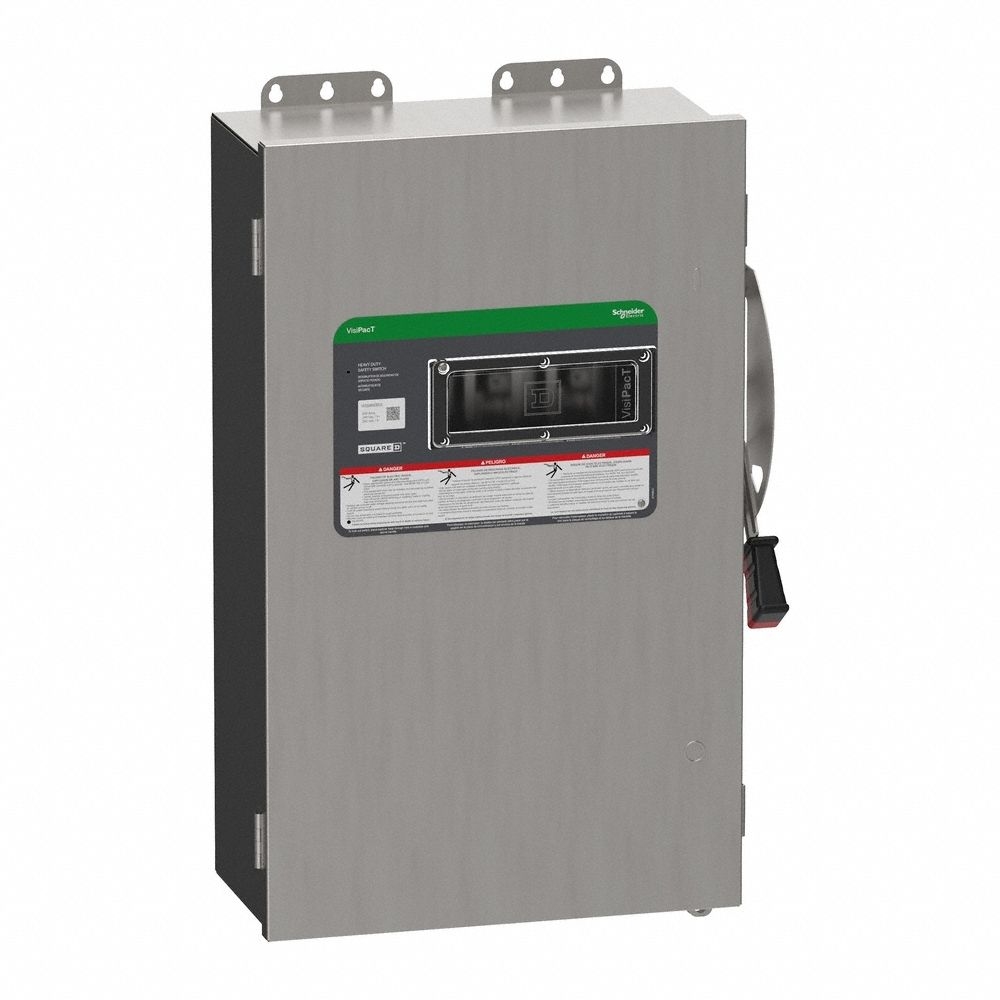

VH223NDSGL | 20 3/4" | Stainless Steel | 7 1/4" | 5 hp | 0" to 9 3/4" | 20" to 29 3/4" | 3 | 4X , NEMA 4X | €4,473.34 | |
 |

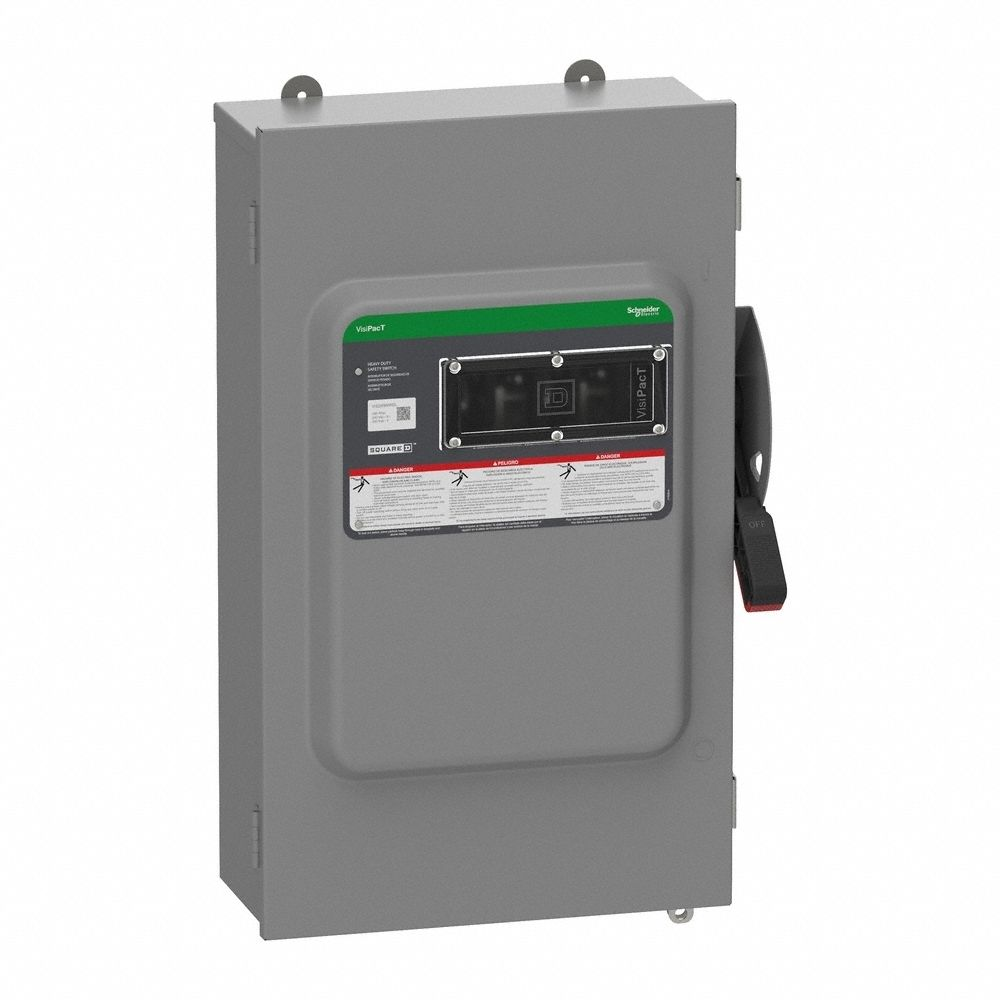

VH223AWKGL | 20 1/2" | Galvanized Steel | 7 1/4" | 5 hp | 0" to 9 3/4" | 20" to 29 3/4" | 2 | 12 , NEMA 12 | €803.44 | |
|
VH221NAWKGL | 14 1/2" | Galvanized Steel | 5 1/4" | Not Rated | 0" to 9 3/4" | 10" to 19 3/4" | 3 | 12 , NEMA 12 | €631.59 | |
 |

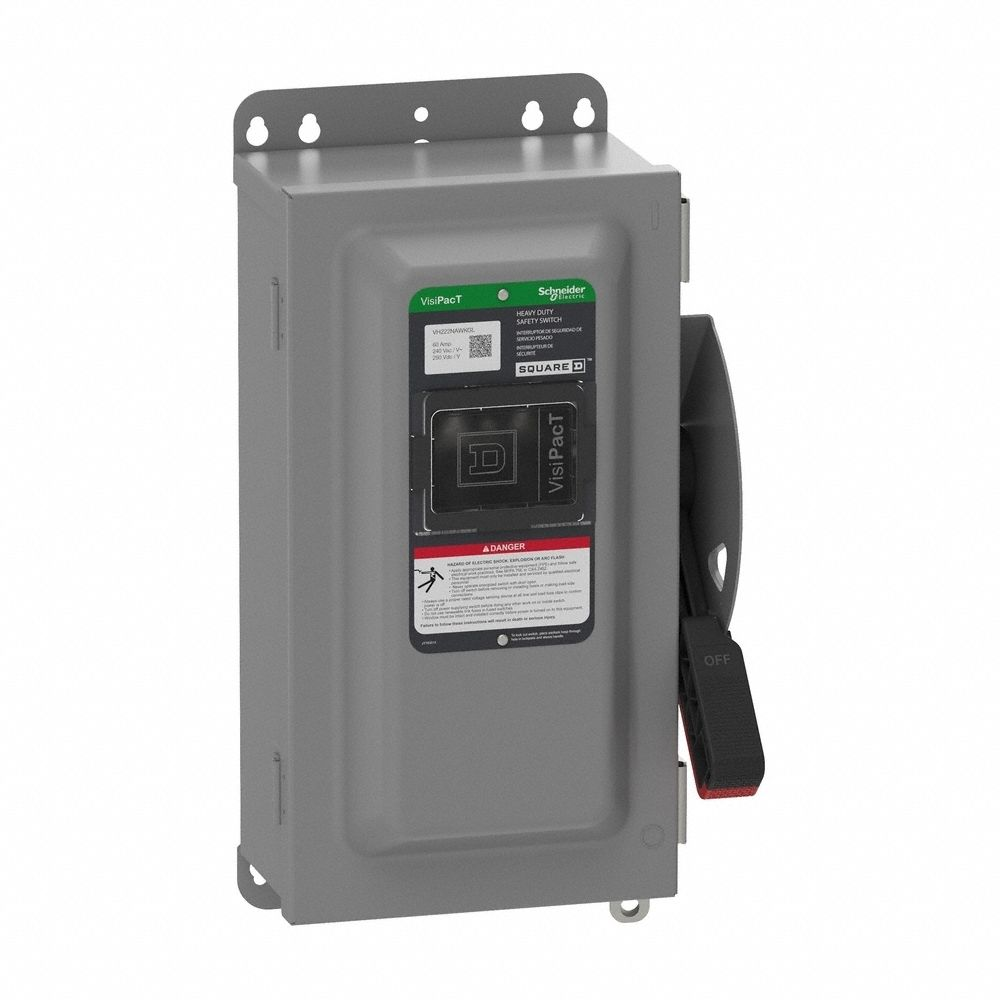

VH222NAWKGL | 14 1/2" | Galvanized Steel | 5 1/4" | Not Rated | 0" to 9 3/4" | 10" to 19 3/4" | 3 | 12 , NEMA 12 | €757.73 |
