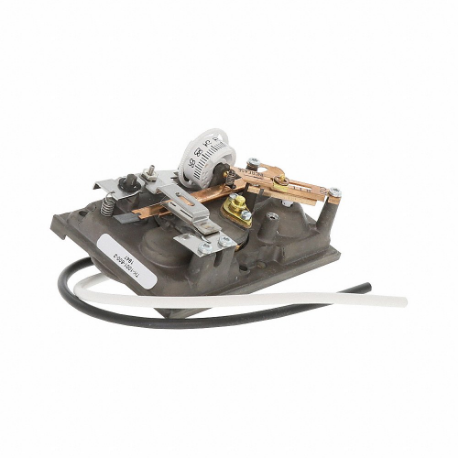

SCHNEIDER ELECTRIC TK-1001-600 Pneumatic Thermostat, Single Temp, Single Dials, 2 Pipes
Item: CU2CQGModel: TK-1001-600Cross Ref: 161Y49
7 In Stock
Ships within 2 days via
13.00% off
€754.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pneumatic Thermostat |
| Action | Reverse |
| Action Type | Reverse |
| Air Consumption | 13.8 SCIM |
| Air Flow Output | High Volume |
| Airflow Capacity | 16 SCIM |
| Application | Heat Or Cool |
| Compatible System Type | Pneumatic Valves And Damper Actuators |
| Control Type | Exposed Dial |
| Cover Color | Beige |
| Differential Type | Adjustable |
| Fits Brand | Schneider Electric |
| Fitting Connection | 5/32" |
| Included Cover | Yes |
| Key Features | Linear And Stable Operation |
| Manual Indexing Switch | No |
| Max. Air Pressure | 30 psig |
| Max. Control Temp. | 85°F |
| Min. Control Temp. | 55°F |
| Mounting Direction | Horizontal, Vertical |
| Mounting Location | Wall |
| No. Of Dials | 1 , Single |
| No. Of Pipes | 2 |
| Overall Depth | 1 5/8" |
| Overall Height | 4 3/8" |
| Overall Width | 2 3/4" |
| Sensor Type | Bi Metallic Spring |
| Temp. Scale | Fahrenheit |
| Temp. Settings | Single Temperature |
| Thermostat Action | Reverse |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 11.11 |
| Ship length (cm) | 4.13 |
| Ship width (cm) | 6.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Overall Depth | Overall Width | Mounting Direction | Air Connection Outside Dia. | Air Flow Output | No. Of Dials | Fitting Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TK-1711 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal, Vertical | 1/8" | High Volume | Dual | 5/32" | €1,052.70 | |
 |
2214-121 | 2 1/16" | 1 3/8" | 2 1/16" | Horizontal, Vertical | 1/4" | High Volume | Dual | Barbed 3/16" | €826.42 | |
 |
TK-1721 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal, Vertical | 1/8" | High Volume | Dual | 5/32" | €2,083.91 | |
 |
TK-1301 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal, Vertical | 1/8" | High Volume | Dual | 5/32" | €1,112.96 | |
 |
TK-1741 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal, Vertical | 1/8" | High Volume | Dual | 5/32" | €1,425.04 | |
 |
TK-1281 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal/Vertical | 1/8" | High Volume | 2 | 5/32" | €1,216.78 | |
 |
TK-1201 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal, Vertical | 1/8" | High Volume | Dual | 5/32" | €1,097.51 |
