SCHNEIDER ELECTRIC SFD212NG4YB07D07 Variable Frequency Drive 40 Hp 460vac | AF6GDJ 14H097

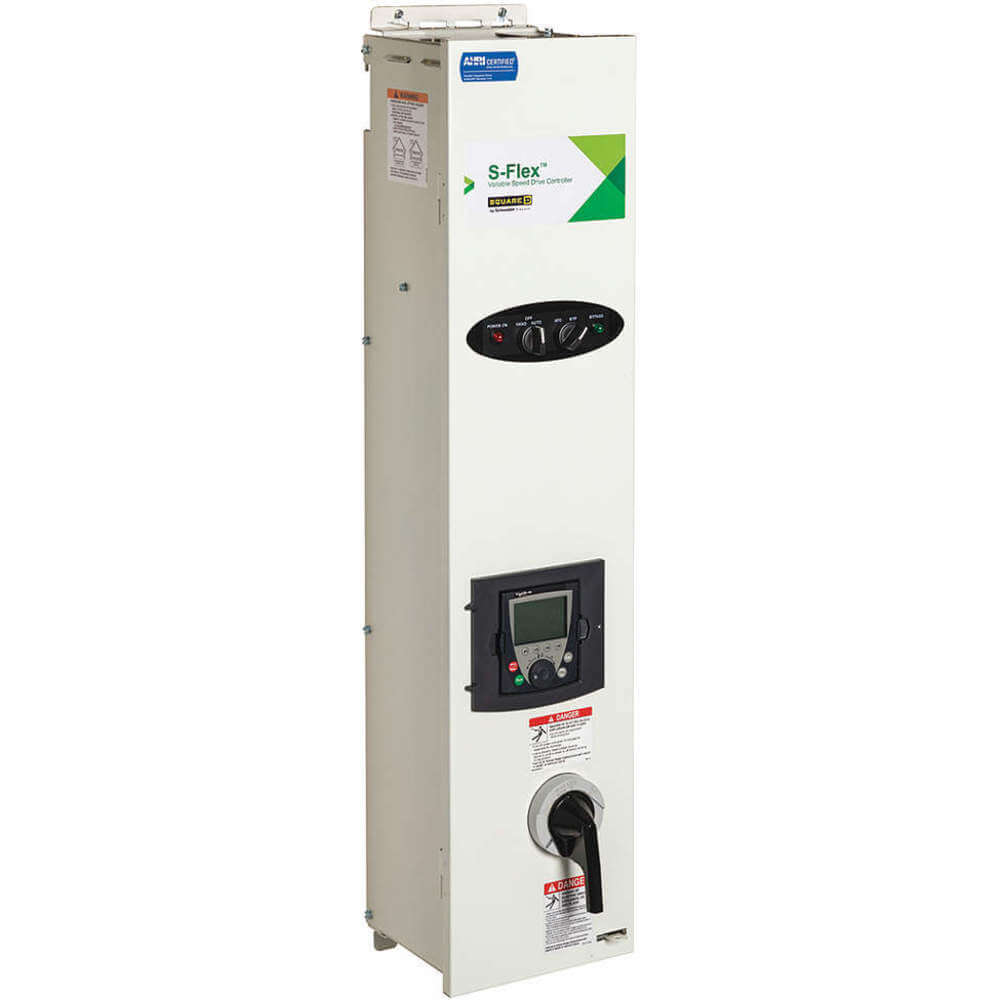

SCHNEIDER ELECTRIC SFD212NG4YB07D07 Variable Frequency Drive 40 Hp 460vac

Item: AF6GDJModel: SFD212NG4YB07D07Cross Ref: 14H097
Check Availability
In Stock

Get it by Tuesday, Aug 25

€6,697.92
13.00% off
€5,827.19 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Variable Frequency Drive
Accepts Input Control Signal Remote Contact
Accepts Input Control Signal Yes
Adjustable Acceleration Time 0.1 sec. to 999 sec.
Adjustable Acceleration Time 60 sec.
Adjustable Deceleration Time 60 sec.
Adjustable Deceleration Time 0.1 sec. to 999.9 sec.
Application Commercial Office Buildings, Residential High Rise And Mixed-Use Buildings, Schools And Campus Environments
Brake Chopper Included No
Color White
Control Method Keypad, Remote
Control Method Drive Or Commas
Control Type Keypad, Remote
Depth 13.181"
Display Type LCD
Displays Integrated, LCD
Displays Integrated Or Lcd
Dynamic Braking No
Dynamic Braking Dynamic Deceleration
Enclosure Totally Enclosed
Enclosure Rating NEMA 1
Ethernet Port Included No
Height 62.006"
Input Frequency 50/60 Hz
Input Phase 3
Input Phase Ac 3
Input Type Analog, Discrete
Input Voltage 460V AC
Max. Hp 40 hp
Max. Output Amps 52A
Max. Output Power 40 hp
No. Of Inputs (2) Analog
No. Of Outputs (1) Analog
Output Frequency 0.5-200 Hz
Output Frequency Range 0.5-200 Hz
Output Phase 3
Output Type Analog, Discrete
Output Voltage 414-506V AC , 460V AC
Overall Depth 13 1/4"
Overall Height 62 1/8"
Overall Width 12 1/2"
Protection Circuit Breaker
Series S-FLEX ENCLOSED DRIVE Series
Start/stop Control Yes
Start/stop Control Programmable
Starting Torque 110%
Style Compact
Torque @ 1 Hz 110%
Torque Application Constant Torque, Variable Torque
Width 12.532"
With Bypass/no Bypass With Bypass
With Line Contactor/no Line Contactor With Line Contactor

Shipping Info:

Ship weight (kg) 114.3
Ship height (cm)157.8
Ship length (cm)33.66
Ship width (cm)31.75
HS code8504404000
Country of OriginMX

Product Details:

    • Output Phase AC (3)
