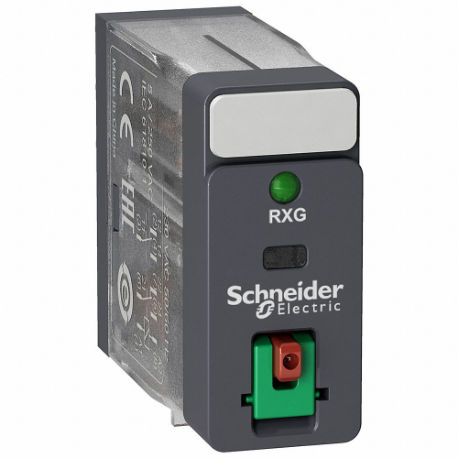

SCHNEIDER ELECTRIC RXG22E7 Relay, Socket Mounted, 5 A Current Rating, 48V AC, 8 Pins/Terminals, Dpdt
Item: CP4MAYModel: RXG22E7Cross Ref: 55WL68
7 In Stock
Ships within 2 days via
13.00% off
€15.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Ac Contact Rating | 5A @ 250V |
| Amps | 5A |
| Coil Voltage | 48V AC |
| Contact Form | DPDT |
| Dc Contact Rating | 5A @ 30V |
| Dielectric Strength | 1000V AC Between Contacts With Micro Disconnection, 3000V AC Between Poles With Basic Insulation, 5000V AC Between Coil And Contact With Reinforced Insulation |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | HARMONY RXG Series |
| No. Of Pins/terminals | 8 |
| Product Datasheet | schneider-electric-rxg22e7.pdf |
| Push-to-test Button | Lockable Push Test Button |
| Relay Mounting Style | Socket |
| Sealing | Enclosed |
| Socket Code | K |
| Status Indicator | LED Indicatormechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.9 |
| Ship length (cm) | 3.45 |
| Ship width (cm) | 1.3 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Relay Mounting Style | Coil Voltage | Type | Frequency | Contact Form | Push-to-test Button | No. Of Pins/terminals | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2AF7 | - | 120V AC | - | 50/60 Hz | - | - | - | - | €23.38 | |
| RPF2AP7 | DIN Rail, Surface | 230V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2BJD | DIN Rail, Surface | 12V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BBD | DIN Rail, Surface | 24V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BF7 | DIN Rail, Surface | 120V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 |
