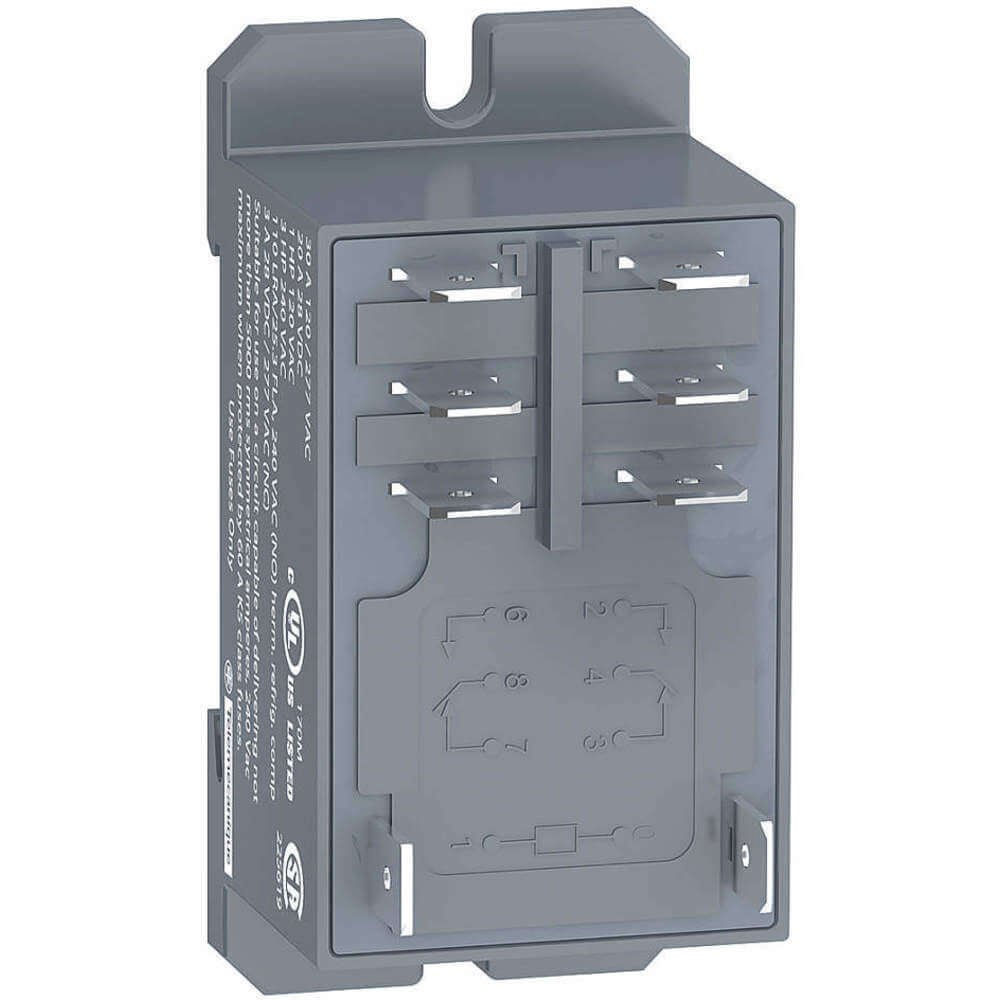

SCHNEIDER ELECTRIC RPF2AJD Enclosed Power Relay 30A 12VDC DPST
Item: AF6QABModel: RPF2AJDCross Ref: 1YAC1
7 In Stock
Ships within 2 days via
10.00% off
€28.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Enclosed Power Relay |
| Base Shape | Square |
| Base Type | Square |
| Body Depth | 1.18" , 2 17/25" |
| Body Height | 1.33" , 1.61" |
| Body Width | 1.35" , 2.7" |
| Coil Rating | 4.0VA, 1.7W |
| Coil Voltage | 12V DC |
| Contact Amp Rating (inductive) | Not Rated |
| Contact Amp Rating (resistive) | 30A @ 277V AC |
| Contact Form | Dpst-No |
| Contact Material | Silver Tin Oxide |
| Contact Rating (ac) | 30A @ 250/277V (NO) |
| Current Rating | 30A |
| Dc Contact Rating | 20A @ 28V (No), 25A @ 28V (No) |
| Dielectric Strength | 1500V AC Between Contacts With Micro Disconnection, 2000V AC Between Poles With Basic, 4000V AC Between Coil And Contact With Reinforced |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Sealed |
| Features | Sealed Construction |
| Flat Pin Width | 1/4" |
| For Use With | Hard-Wired Logic Automated Systems |
| Green Certification Or Other Recognition | RoHS.png |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 3 hp |
| Hz | 50/60 Hz |
| Mechanical Operating Durability | 5000000 |
| Motor Rating | Yes |
| Number Of Pins | 6 |
| Number Of Pins - Relay | 6 |
| Number Of Pins/terminals | 6 |
| Number Of Poles | 2 |
| Overall Depth | 1.54" |
| Overall Height | 1.54" |
| Power Consumption | 1.7 W |
| Power Consumption - Relay | 4 W |
| Push-to-test Button | No Test Button |
| Push-to-test Method | No Button |
| Relay Mounting Style | Din-Rail, Surface |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Response Time | 25 ms |
| Sealing | Sealed |
| Series | HARMONY RPF POWER Series |
| Status Indicator | No Indicator |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 3.38 |
| Ship length (cm) | 3 |
| Ship width (cm) | 6.86 |
| HS code | 8536490080 |
| Country of Origin | CN |
Product Variants
| Model | Relay Mounting Style | Contact Form | Push-to-test Button | Electrical Connection Type | Number Of Pins/terminals | Coil Voltage | Current Rating | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Din-Rail, Surface | Dpst-No | No Test Button | Tab | 6 | 24V AC | 30A | Tab | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | Tab | €31.48 | |
| RPF2AP7 | Din-Rail, Surface | Dpst-No | No Test Button | Tab | 6 | 230V AC | 30A | Tab | €31.48 | |
| RPF2BJD | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 12V DC | 30A | Tab | €33.73 | |
| RPF2BBD | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 24V DC | 30A | Tab | €33.73 | |
| RPF2BB7 | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 24V AC | 30A | Tab | €33.73 | |
| RPF2BF7 | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 120V AC | 30A | Tab | €33.73 |
