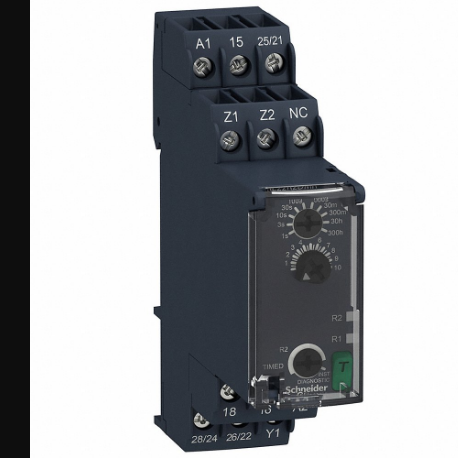

SCHNEIDER ELECTRIC RE22R2DMR Time Delay Relay, DIN-Rail Mounted, 240VAC, 8 A, 6 Pins/Terminals, 0.05 sec to 300 hr
Item: CU2EDYModel: RE22R2DMRCross Ref: 55WM62
7 In Stock
Ships within 2 days via
€89.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Relay |
| Ac Contact Rating | 8A @ 250V |
| Adjustment Method | Diagnostic Button, Rotary Dip Switch |
| Amps | 8A |
| Base Shape | Square |
| Body Depth | 2.87" |
| Body Height | 3.54" |
| Body Width | 0.89" |
| Coil Voltage | 24-240V AC/DC , 240V AC |
| Contact Form | DPDT |
| Dc Contact Rating | 8A @ 24V |
| Delay Function | Symmetrical Flashing |
| Electrical Connection | Screw Terminal |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Sealed |
| Ip Rating | IP20, IP40, IP50 |
| Max. Operating Temp. | 140°F |
| Max. Switching Voltage | 250V AC |
| Max. Time Setting | 300 hrs. |
| Mechanical Operating Durability | 10000000 |
| Min. Operating Temp. | -4°F |
| Min. Time Setting | 0.05 sec. |
| No. Of Delay Functions | 2 |
| No. Of Pins | 6 |
| No. Of Pins-relay | 6 |
| No. Of Pins/terminals | 6 |
| Operating Time Accuracy | -0.5% to +0.5% |
| Overall Depth | 3.54" |
| Overall Height | 3.54" |
| Power Consumption | 3 VA |
| Product Datasheet | schneider-electric-re22r2dmr.pdf |
| Relay Mounting Style | DIN Rail |
| Sealing | Sealed |
| Timing Relay Functionality | Off Delay, On Delay |
| Type Of Output | Relay |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 8.99 |
| Ship length (cm) | 7.29 |
| Ship width (cm) | 2.26 |
| Country of Origin | ID |
Documentation:
Product Variants
| Product | Model | Relay Mounting Style | Electrical Connection Type | Contact Form | Min. Time Setting | Max. Time Setting | Socket Code | Body Width | Body Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TDRPRO-5100 | Panel Door | Pin | DPDT | 0.1 sec. | 9990 hrs. | B | 1.9" | 4 1/2" | €204.58 | |
 |
TDRPRO-5101 | Panel Door | Pin | SPDT | 0.1 sec. | 9990 hrs. | A | 1.89" | 4 1/2" | - | RFQ
|
 |
TDRPRO-5102 | Panel Door | Pin | DPDT | 0.1 sec. | 9990 hrs. | A | 1.89" | 4 1/2" | €131.07 | |
 |
RE17RMJU | DIN Rail | Screw | SPDT | 1 sec. | - | - | 0.69" | 2 21/25" | €93.74 | |
 |
RE22R2MMU | DIN Rail | Screw | DPDT | 0.1 sec. | 100 hrs. | - | 0.89" | 3.13" | €81.45 | |
 |
RE22R1MKMR | DIN Rail | Screw | SPDT | 0.05 sec. | 5 min. | - | 0.89" | 2.87" | €105.23 | |
 |
RE22R2MMW | DIN Rail | Screw | DPDT | 0.1 sec. | 100 hrs. | - | 0.89" | 3.13" | €96.67 |
