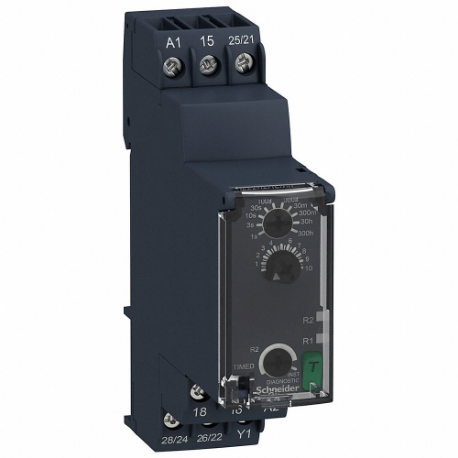

SCHNEIDER ELECTRIC RE22R2ACMR Time Delay Relay, DIN-Rail Mounted, 240VAC, 8 A, 6 Pins/Terminals, 0.05 sec to 300 hr

Item: CU2EEBModel: RE22R2ACMRCross Ref: 55WM61

7 In Stock

Ships within 2 days via

~~€97.88~~

13.00% off

€85.16 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Time Delay Relay
Ac Contact Rating	8A @ 250V
Adjustment Method	Diagnostic Button, Rotary Dip Switch
Amps	8A
Base Shape	Square
Body Depth	2.87"
Body Height	3.54"
Body Width	0.89"
Coil Voltage	24-240V AC/DC , 240V AC
Contact Form	DPDT
Dc Contact Rating	8A @ 24V
Delay Function	On/Off Delay
Electrical Connection	Screw Terminal
Electrical Connection Type	Screw
Electrical Operating Durability	100000
Environmental Protection	Sealed
Ip Rating	IP20, IP40, IP50
Max. Operating Temp.	140°F
Max. Switching Voltage	250V AC
Max. Time Setting	300 hrs.
Mechanical Operating Durability	10000000
Min. Operating Temp.	-4°F
Min. Time Setting	0.05 sec.
No. Of Delay Functions	2
No. Of Pins	6
No. Of Pins-relay	6
No. Of Pins/terminals	6
Operating Time Accuracy	-0.5% to +0.5%
Overall Depth	3.54"
Overall Height	3.54"
Power Consumption	3 VA
Product Datasheet	schneider-electric-re22r2acmr.pdf
Relay Mounting Style	DIN Rail
Sealing	Sealed
Timing Relay Functionality	Off Delay, On Delay

Model	Amps	Coil Voltage	Relay Mounting Style	Electrical Connection Type	Body Width	Body Depth	Body Height	No. Of Delay Functions	Price

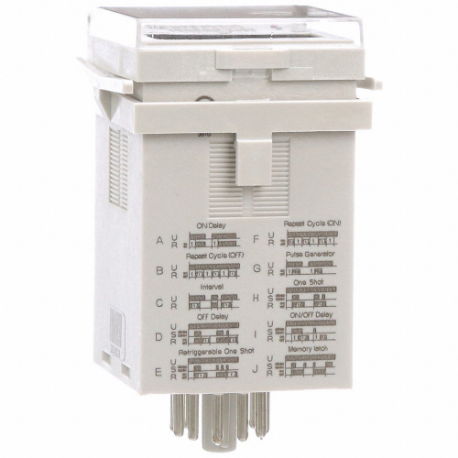

TDRPRO-5100	12A	240V AC	Panel Door	Pin	1.9"	4 1/2"	1.9"	5	€240.69

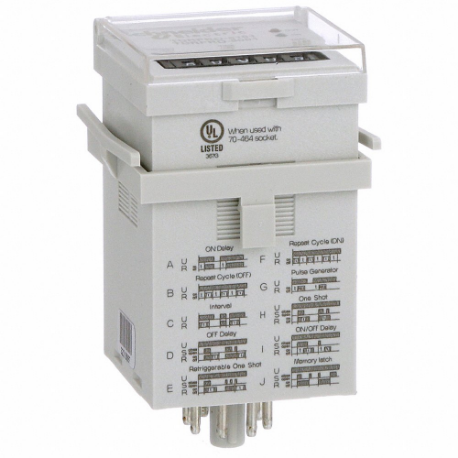

TDRPRO-5101	12A	240V AC	Panel Door	Pin	1.89"	4 1/2"	1.9"	10	-	RFQ

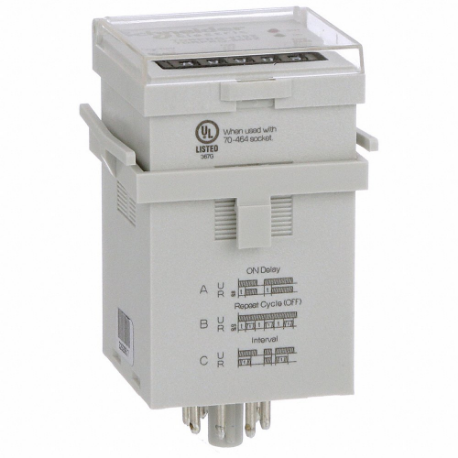

TDRPRO-5102	12A	240V AC	Panel Door	Pin	1.89"	4 1/2"	1.9"	3	€154.19

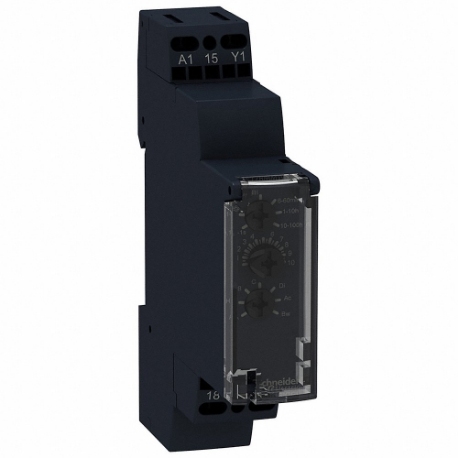

RE17RMJU	8A	12V AC	DIN Rail	Screw	0.69"	2 21/25"	3.54"	5	€110.29
RE22R2MMU	8A	24V DC/24-240V AC	DIN Rail	Screw	0.89"	3.13"	3.54"	5	€95.82

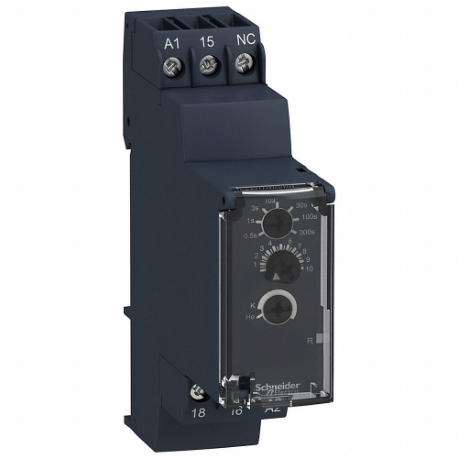

RE22R1MKMR	5A	240V AC	DIN Rail	Screw	0.89"	2.87"	3.54"	2	€123.80

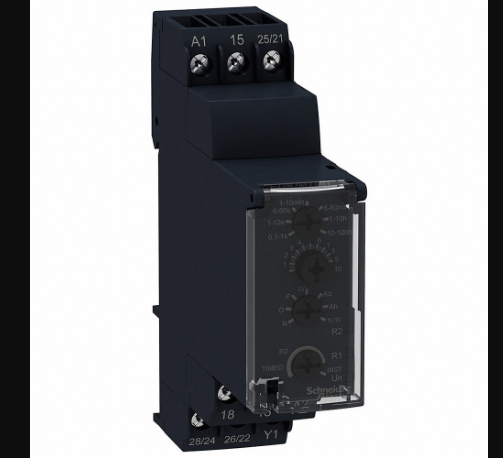

RE22R2MMW	8A	240V AC	DIN Rail	Screw	0.89"	3.13"	3.54"	5	€113.73
