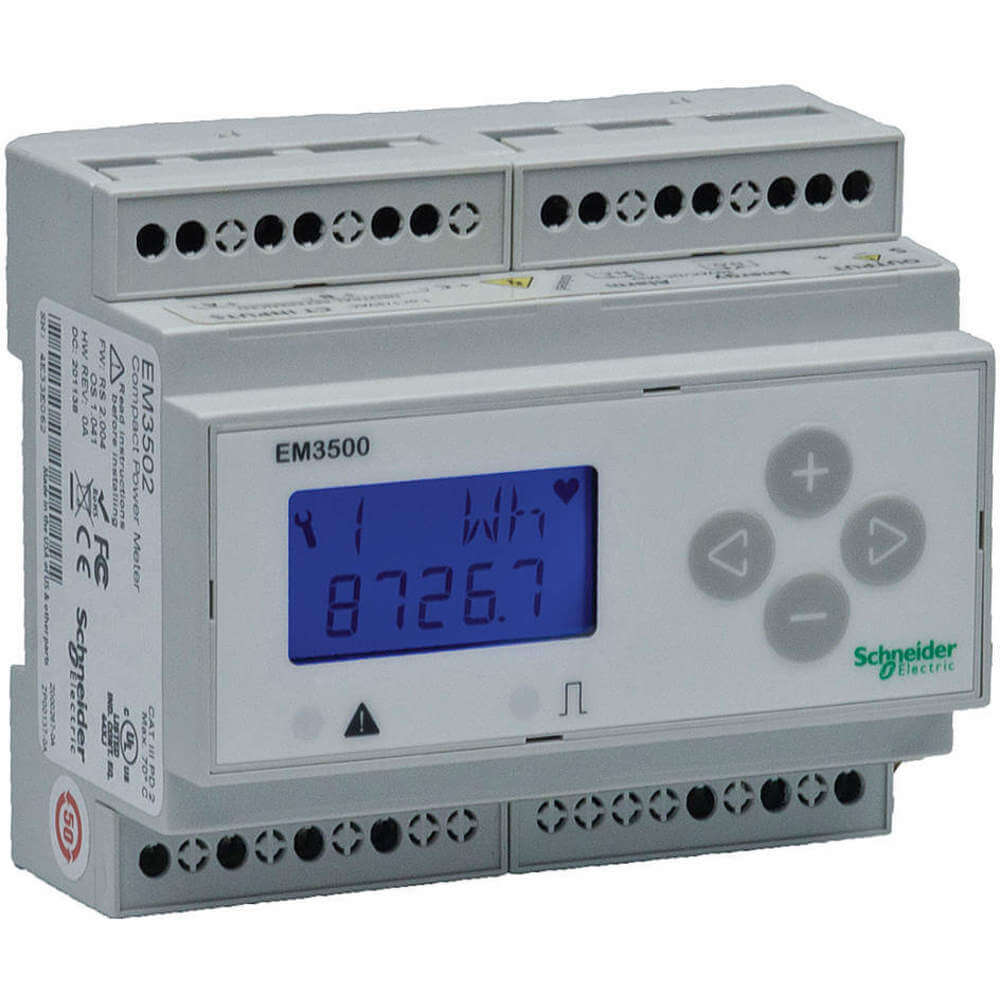

SCHNEIDER ELECTRIC METSEEM3550 Power Meter, 90/600 Vac/Dc, 5 A Amps, +/-0.50% Accuracy, Not Enclosed
Item: CU2CTVModel: METSEEM3550Cross Ref: 20JM98
7 In Stock
Ships within 2 days via
13.00% off
€934.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Power Meter |
| Accuracy | -0.20% to +0.20% |
| Amps | 5A |
| Communication Method | Modbus |
| Depth | 1.9" |
| Display | Backlit LCD |
| Enclosure Rating | Not Enclosed |
| Features | Modbus - 2 Quadrant |
| Frequency | 50/60 Hz |
| Height | 3 3/5" |
| Included Datalogging | Yes |
| Input Voltage | 90/600V AC/DC |
| Max. Operating Temp. | 158°F |
| Measures | Apparent Power, Current, Frequency, Peak Demand Power, Power, Power Factor, Reactive Power, Voltage |
| Meter Range | 5-32000A |
| Min. Amps Output Reading | 5A |
| Min. Operating Temp. | -22°F |
| Mounting | Din Rail |
| Nema Enclosure Rating | No Enclosure |
| Operating Temp. | -30°C to +70°C |
| Overall Depth | 2.32" |
| Overall Height | 3.58" |
| Overall Width | 4.21" |
| Phase | 3 |
| Product Datasheet | schneider-electric-metseem3550.pdf |
| Width | 4 1/5" |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 10.67 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Mounting | Input Voltage | Amps | Depth | Height | Overall Height | Overall Depth | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
METSEEM3555 | Din Rail | 90/600V AC/DC | 5A | 1.9" | - | 3.58" | 2.32" | 4.21" | €1,472.17 | |
 |
METSEPM5110 | Panel, Surface | 120/480V AC/125/250V DC | 1A | 2.83" | 3.78" | 3.78" | 2.83" | 3.78" | €1,224.66 | |
|
METSEPM5330 | Panel, Surface | 120/480V AC/125/250V DC | 1A | 2.83" | 3.78" | 3.78" | 2.83" | 3.78" | €1,857.99 | |
|
METSEPM5563 | DIN Rail | 120/480V AC/125/250V DC | 1A | 2.83" | 3.78" | 3.78" | 2.83" | 3.78" | €2,854.50 | |
|
METSEPM5560 | Panel, Surface | 120/480V AC/125/250V DC | 1A | 2.83" | 3.78" | 3.78" | 2.83" | 3.78" | €3,628.53 | |
|

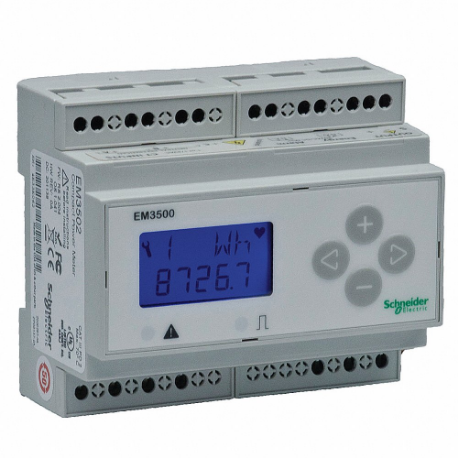

METSEEM3560 | Din Rail | 90/600V AC/DC | 5A | 1.9" | 3 3/5" | 3.58" | 2.32" | 4.21" | €1,501.18 |
