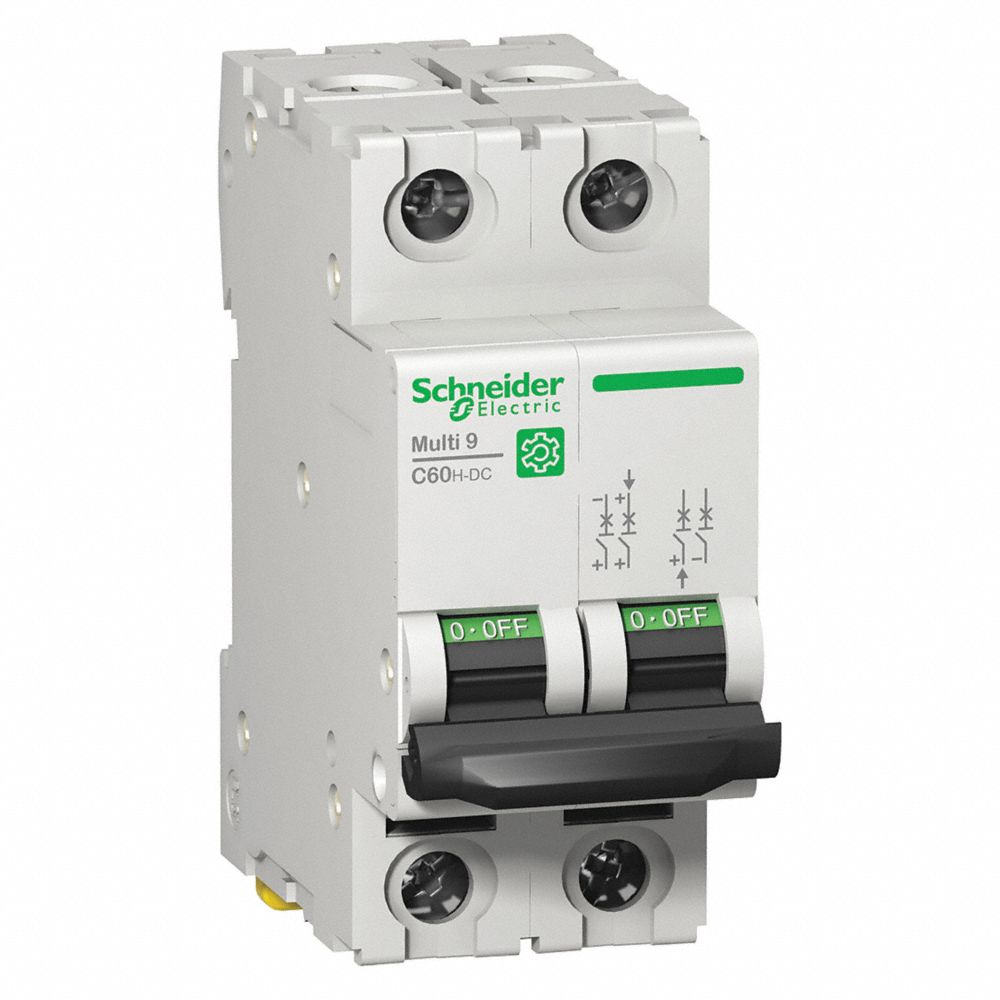

SCHNEIDER ELECTRIC M9U11250 IEC Supplementary Protector, 50 A, 500V DC, 2 Pole
Item: EA6EWNModel: M9U11250Cross Ref: 482N70
7 In Stock
Ships within 2 days via
13.00% off
€485.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Supplementary Protector |
| Ac Voltage Rating | Not Rated |
| Amps | 50A |
| Application | Branch Circuit Protection |
| Circuit Breaker Actuator | Toggle |
| Color | Gray |
| Curve Type | B |
| Dc Voltage | 500V DC |
| Dc Voltage Rating | 500V DC |
| Depth | 2.87" |
| Height | 81 mm |
| Max. Air Rating | 5 kA at 250V DC, 5kA @ 250V DC |
| Max. Wire Size | 2 AWG |
| Min. Wire Size | 18 AWG |
| No. Of Poles | 2 |
| Series | C60H-DC Series |
| Terminal Connection | Screw Clamp |
| Trip Type | Thermal Magnetic |
| Width | 1.42" |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 9.65 |
| Ship width (cm) | 4.06 |
| Country of Origin | CN |
Product Variants
| Model | Amps | Max. Wire Size | Ac Voltage Rating | Depth | Curve Type | Series | Height | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| M9F21205 | 5A | 8 AWG | 240/415/440V AC | 2.83" | B | C60SP Series | 81.026 mm | DIN Rail Mount | €253.42 | |
| M9F22245 | 45A | 2 AWG | 240/415/440V AC | 2.83" | C | C60SP Series | 81 mm | - | €279.62 | |

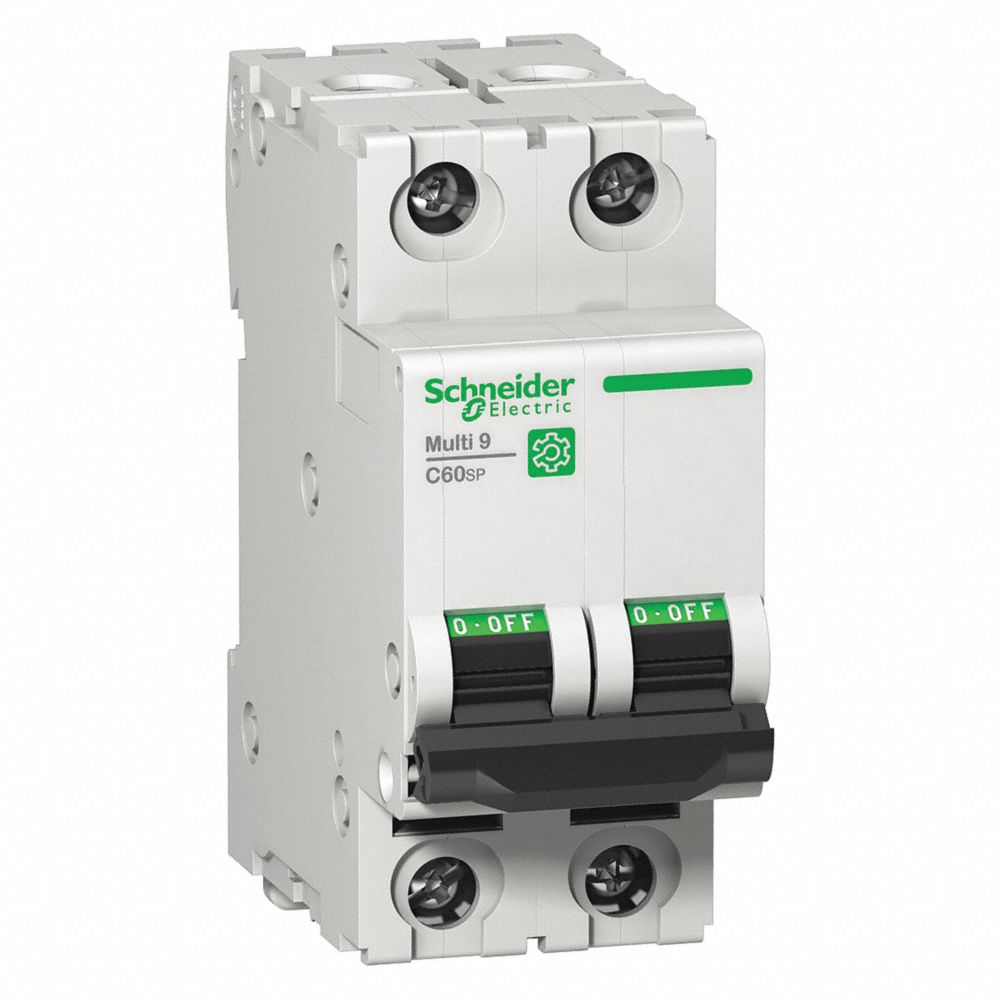

| M9F22250 | 50A | 2 AWG | 240/415/440V AC | 2.83" | C | C60SP Series | 81 mm | Clip | €310.91 | |
| M9F23204 | 4A | 8 AWG | 240/415/440V AC | 2.83" | D | C60SP Series | 81 mm | DIN Rail Mount | €289.06 | |
| M9U11206 | 6A | 4 AWG | Not Rated | 2.87" | B | C60H-DC Series | - | - | €544.34 | |
| M9U11213 | 13A | 4 AWG | Not Rated | 2.87" | B | C60H-DC Series | 81 mm | - | €721.37 | |
| M9U11216 | 16A | 4 AWG | Not Rated | 2.87" | B | C60H-DC Series | 81 mm | Clip | €747.22 |
