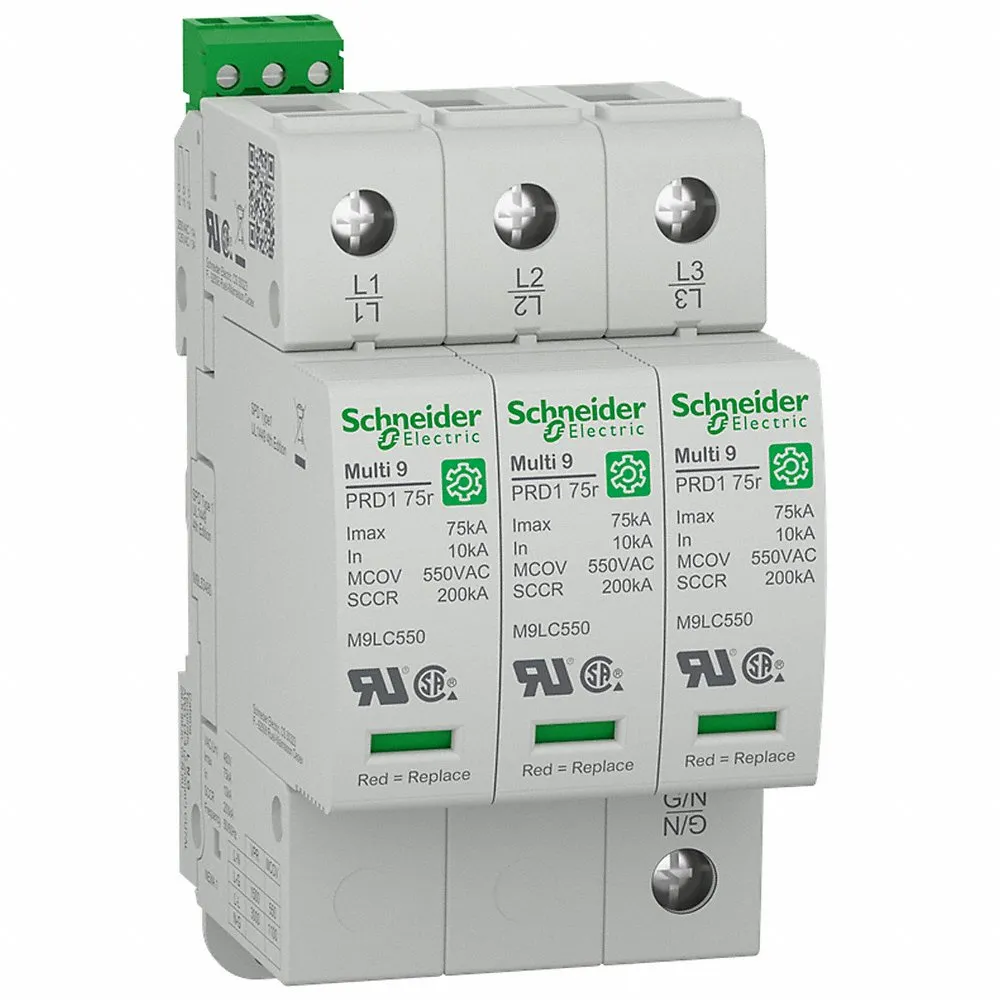

SCHNEIDER ELECTRIC M9L53480 Surge Arrester, Three Phase, 480VAC, 3 Poles, 4 Wires, L-N
Item: CU2EVYModel: M9L53480Cross Ref: 800DR3
7 In Stock
Ships within 2 days via
10.00% off
€439.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wire |
| Basic Material | Non Metallic |
| Color | Gray |
| Depth | 2.81" |
| Enclosure Nema Rating | 1 |
| Max. Operating Temp. | 140°F |
| Max. Surge Current Per Mode | 75 kA |
| Max. Surge Current Per Phase | 75 kA |
| Min. Operating Temp. | -13°F |
| Modes Of Protection | L-N |
| Modular | Yes |
| Mounting Style | DIN Rail |
| Nominal Discharge Amps | 30A |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | Three |
| Short Circuit Amps Rating | 200 kA |
| Standards | Ul 1449 |
| Voltage | 480V AC |
| Voltage Protection Rating | 1, 500V (L-PE), 3, 000V (L-L) |
| Width | 2.07" |
| Wire Gauge | 10 AWG to 2 AWG, 10 AWG to 4 AWG |
Shipping Info:
| Ship weight (kg) | 0.44 |
| Ship height (cm) | 7.14 |
| Ship length (cm) | 7.14 |
| Ship width (cm) | 5.26 |
| Country of Origin | ES |
Product Variants
| Product | Model | Phase | Voltage | Number Of Poles | Number Of Wires | Depth | Nominal Discharge Amps | Height | Voltage Protection Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M9LC175 | - | - | - | - | 2 11/16" | 20 kA | - | - | €116.68 | |
 |
M9LC320 | - | - | - | - | 2 11/16" | 20 kA | 45 mm | - | €107.67 | |
 |
M9LC275 | - | - | - | - | 2 11/16" | 20 kA | 45 mm | - | €107.28 | |
 |
M9L11120 | Single | 120V AC | 1 | 2 | 2.81" | 30A | 91.7 mm | 600V (L-N) | €165.17 | |
 |

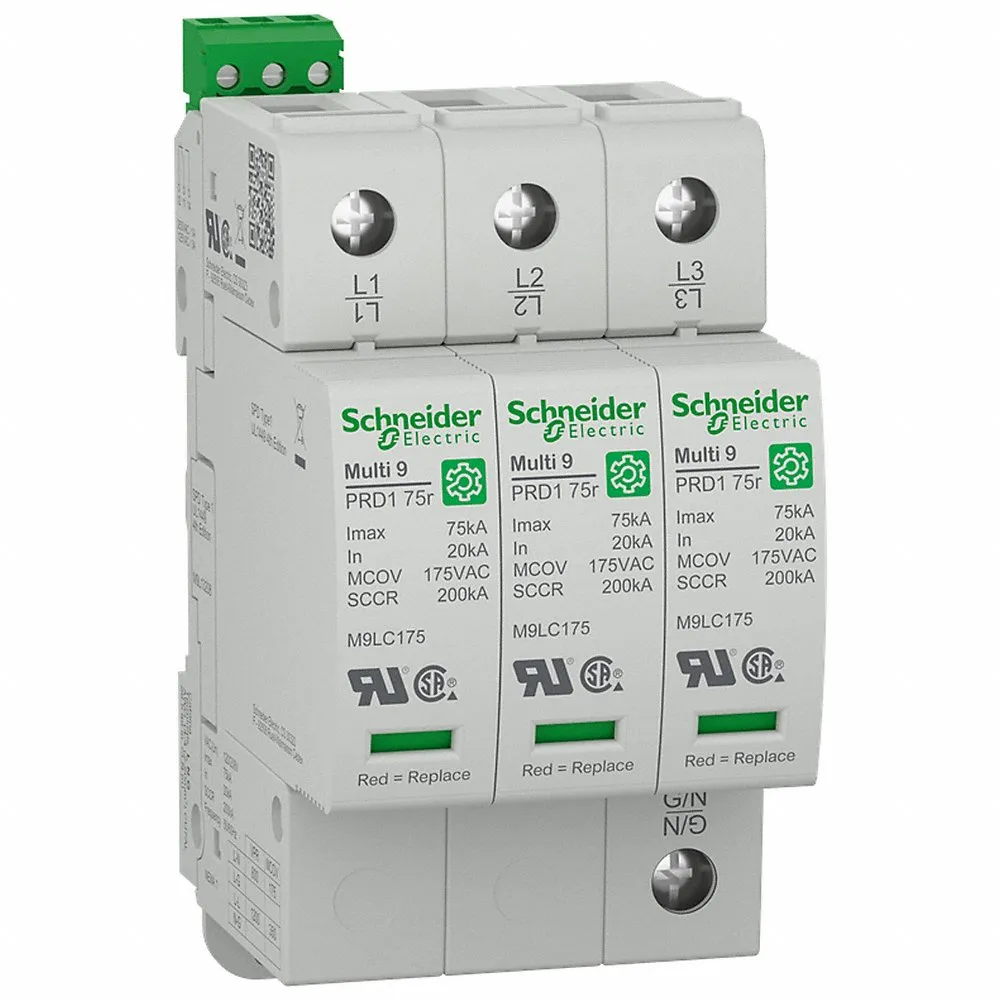

M9L13208 | Three | 120/208V AC | 3 | 4 | 2.81" | 30A | 91.7 mm | 1200V (L-L), 600V (L-N) | €488.67 | |
 |
M9L33480 | Three | 277/480V AC | 3 | 4 | 2.81" | 30A | - | 1, 000V (L-N), 2, 000V (L-L) | €533.31 | |
 |

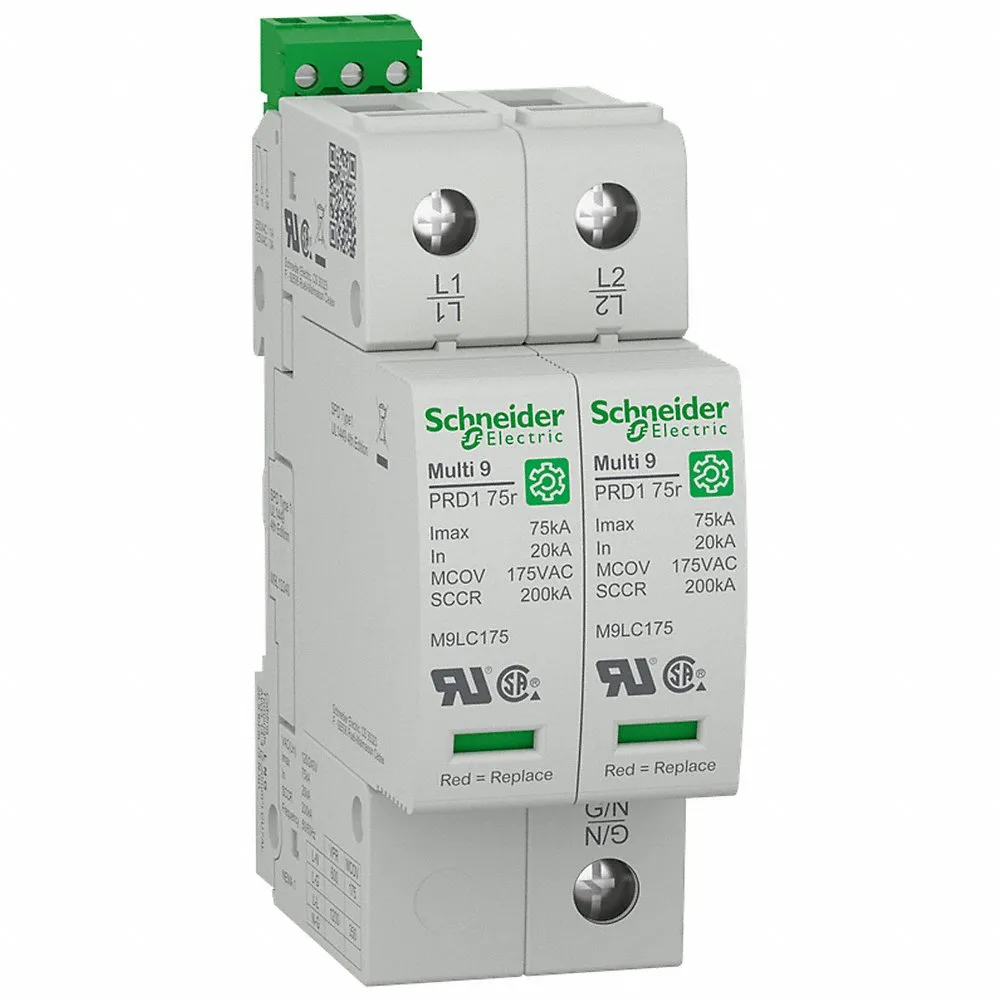

M9L12240 | Two | 120/240V AC | 2 | 3 | 2.81" | 30A | 91.7 mm | 1200V (L-L), 600V (L-N) | €293.20 |
