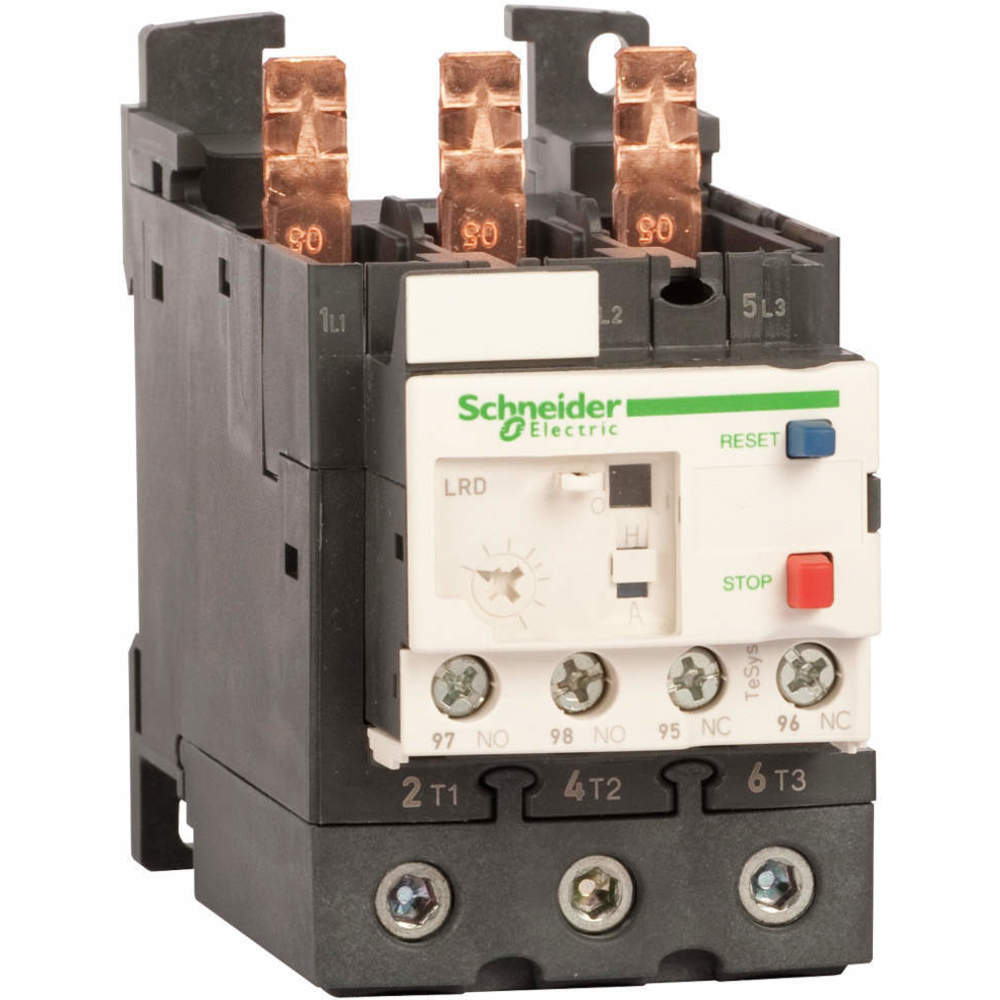

SCHNEIDER ELECTRIC LR3D350 Overload Relay Class 10 37 - 50a
Item: AG7FPLModel: LR3D350Cross Ref: 6KYD1
7 In Stock
Ships within 2 days via
10.00% off
€184.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Overload Relay |
| Amps Range | 37-50A |
| Auxiliary Contacts Included | 1NO/1NC |
| Body Depth | 4 21/25" |
| Body Height | 2 19/25" |
| Body Width | 2.17" |
| Code | F To H |
| Compatible Contactor Series | TESYS DECA Series |
| Compatible Contactors | Tesys Deca (40 To 65 Amp Models) |
| Compatible With Series | Tesys Deca |
| Depth | 4 21/25" |
| Features | Non Differential |
| Height | 2 19/25" |
| Impulse Withstand Voltage | 6 kV |
| Includes Mounting Hardware | Not Applicable |
| Ip Rating | IP20 |
| Kit Required For Retrofit Mtg. | No |
| Maximum Overload Relay Current Setting | 50A |
| Maximum Voltage Rating | 690V AC |
| Min. Overload Relay Amps Setting | 37A |
| Mounting Style | Direct To Contactor |
| Number Of Poles | 3 |
| Overall Height | 2 19/25" |
| Overload Protection Type | Thermal |
| Phase Loss Sensitivity | No |
| Product Type | Non Differential Thermal Overload Relay |
| Relay Application | Motor Protection |
| Relay Mounting Style | Direct To Contactor |
| Relay Style | IEC |
| Reset Type | Auto, Manual |
| Sensing Method | Bimetallic |
| Separate Mounting | Yes |
| Starter Type | IEC |
| Terminal Connection Type | Screw Clamp Terminals |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Trip Class | Class 10A |
| Trip Class | 10 |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 7.01 |
| Ship length (cm) | 12.29 |
| Ship width (cm) | 5.51 |
| HS code | 8536504000 |
| Country of Origin | FR |
Product Variants
| Product | Model | Sensing Method | Trip Class | Body Height | Body Width | Overall Height | Body Depth | Height | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LR2D3555 | Bimetallic | 20 | 3.94" | 2.95" | 3.93" | 4 19/25" | 3.93" | - | €247.71 | |
 |
LR9D5367 | Thermal | Class 10 | 4.65" | 4.53" | 4.65" | 4.92" | 3.98" | 5.19" | €625.87 | |
 |
LR9D5369 | Thermal | Class 10 | 4.65" | 4.53" | 4.65" | 4.92" | 3.98" | 5.19" | €615.42 | |
|
LR2D3559 | Bimetallic | 20 | 3.94" | 2.95" | 3.93" | 4 19/25" | 3.93" | - | €241.47 | |
 |
LR2K0301 | Bimetallic | Class 10A | 2 7/25" | 1.77" | 2 7/25" | 2 14/25" | 2 14/25" | 2 7/25" | €124.37 | |
|
LR2K0302 | Bimetallic | Class 10A | 2 7/25" | 1.77" | 2 7/25" | 2 14/25" | 2 14/25" | - | €123.85 | |
|
LR2K0303 | Bimetallic | - | 2 7/25" | 1.77" | 2 7/25" | 2 14/25" | 2 14/25" | - | €118.79 |
