SCHNEIDER ELECTRIC LP2K0901BD Miniature Contactor Iec 24vdc 3p 9a
Item: AF9JAFModel: LP2K0901BDCross Ref: 2MMX8
7 In Stock
Ships within 2 days via
10.00% off
€346.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Contactor |
| Action Type | Reversing |
| Auxiliary Contact Form | 2NC |
| Auxiliary Contacts Included | 1NC |
| Coil Volts | 24V DC |
| Contactor Style | IEC |
| Contactor Type | IEC |
| Depth | 2 6/25" |
| Electrical Operating Durability | 1300000, 180000 |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 9A |
| Full Load Amps-resistive | 20A |
| Full Load Current - Resistive | 20A |
| Height | 3.54" |
| Horsepower @ Three Phase - 208v Ac | 2 hp |
| Horsepower @ Three Phase - 480v Ac | 5 hp |
| Horsepower @ Three Phase - 600v Ac | 5 hp |
| Hp @ 1 Phase - 120v | 1/2 hp |
| Hp @ 1 Phase - 230v | 1 1/2 hp |
| Hp @ 3 Phase - 208v | 2 hp |
| Hp @ 3 Phase - 230v | 3 hp |
| Hp @ 3 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 575v | 5 hp |
| Hp @ Single Phase - 240v Ac | 1 1/2 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 122°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 5000000 |
| Minimum Operating Temperature | -13°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Number Of Poles | 3 |
| Overall Depth | 2.24" |
| Overall Height | 2 7/25" |
| Overall Width | 3.54" |
| Reversing Capability | Reversing |
| Series | TESYS K Series |
| Width | 3.54" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.44 |
| Ship height (cm) | 5.79 |
| Ship length (cm) | 5.69 |
| Ship width (cm) | 8.99 |
| HS code | 8536490065 |
| Country of Origin | FR |
Product Variants
| Model | Reversing Capability | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Coil Volts | Depth | Hp @ 3 Phase - 575v | Action Type | Enclosure Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| LC1K0610L7 | Non-reversing | 1NO | 208V AC | 208V AC | 2 6/25" | 3 hp | Non Reversing | Open | €109.37 | |
| LC1K0910L7 | Non-reversing | 1NO | 208V AC | 208V AC | 1.97" | 5 hp | Non Reversing | Open | €147.32 | |
| LC1K1210B7 | Non-reversing | 1NO | 24V AC | 24V AC | 2 6/25" | 10 hp | Non Reversing | Open | €163.88 | |
| LC1K1210G7 | Non-reversing | 1NO | 120V AC | 120V AC | 2 6/25" | 10 hp | Non Reversing | Open | €159.78 | |
| LC1K1210U7 | Non-reversing | 1NO | 240V AC | 240V AC | 2 6/25" | 10 hp | Non Reversing | Open | €159.78 | |

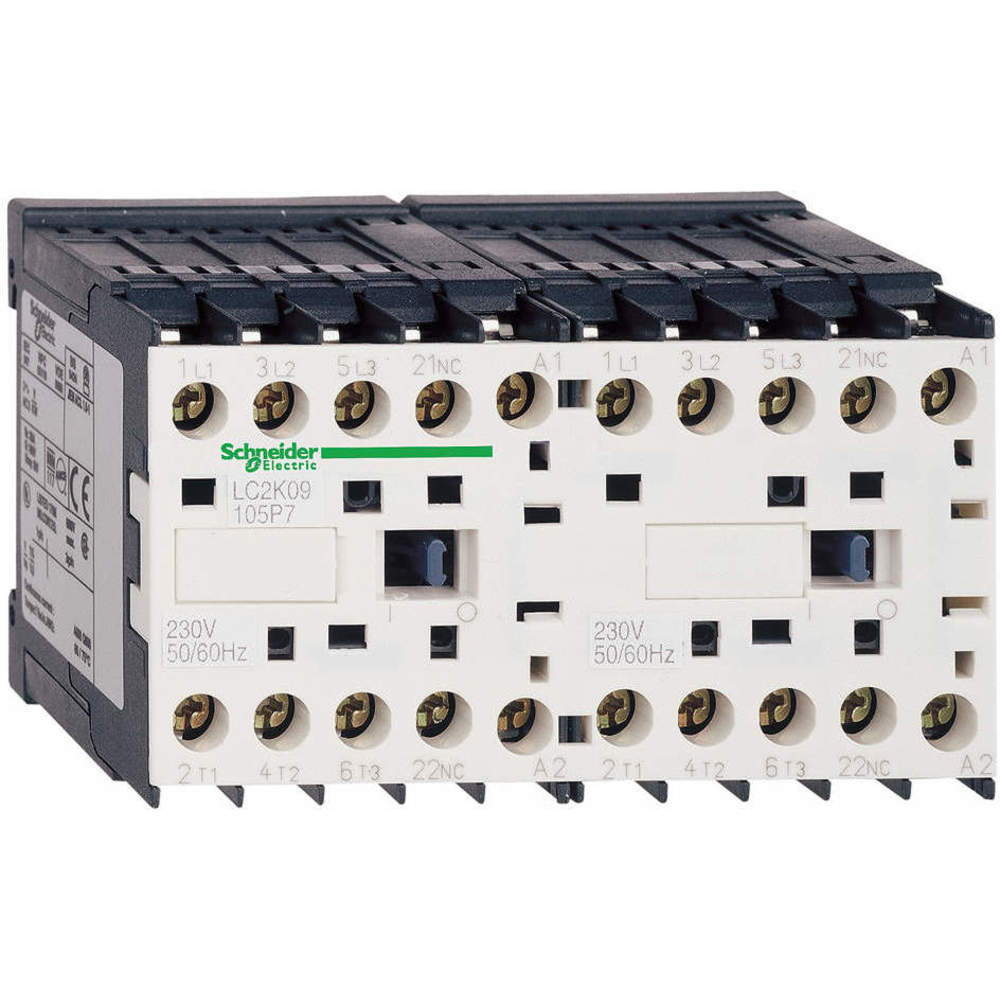

| LC2K1201B7 | Reversing | 1NC | 24V AC | 24V AC | 2 6/25" | 10 hp | Reversing | Closed | €366.17 | |
| LC2K1201G7 | Reversing | 1NC | 120V AC | 120V AC | 2 6/25" | 10 hp | Reversing | Open | €366.17 |
