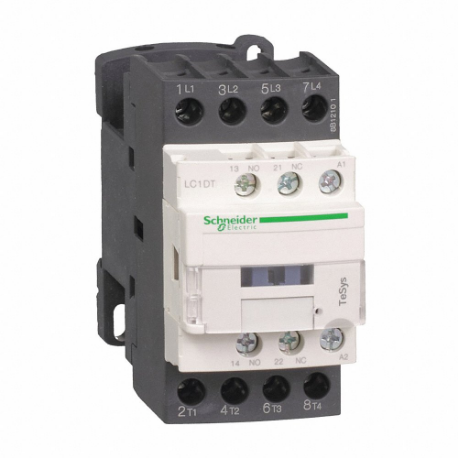

SCHNEIDER ELECTRIC LC1DT32G7 Iec Magnetic Contactor, 120 VAC Coil Volts, 32 A
Item: CU2BNEModel: LC1DT32G7Cross Ref: 48N819
In Stock : 62 Units Get it by Tuesday, Feb 24
5.00% off
€222.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | IEC Magnetic Contactor |
| Application | Resistive Load |
| Aux. Contact Configuration | 1NO/1NC |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Volts | 120V AC |
| Contactor Style | IEC |
| Depth | 3.9" |
| Electrical Operating Durability | 1000000 |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Features | Without Built-In Suppressor Module |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 32A |
| Full Load Amps-resistive | 32A |
| Height | 3.58" |
| Impulse Withstand Voltage | 6 kV |
| Includes Auxiliary Contacts | Yes |
| Includes Protective Cover | Yes |
| Inrush Va | 70 VA |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 4NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 15000000 |
| Minimum Operating Temperature | -40°F |
| Mounts On | Plate, Rail |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Non-overlap Time | 1.5 ms |
| Number Of Auxillary Contacts | 2 |
| Number Of Normally Open Main Contacts | 4 |
| Number Of Poles | 4 |
| Overall Depth | 3.9" |
| Overall Height | 3.58" |
| Overall Width | 1.77" |
| Product Datasheet | schneider-electric-lc1dt32g7.pdf |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Reversible | No |
| Reversing Capability | Non-reversing |
| Series | Tesys Deca |
| Terminal Connection Type | Screw Clamp Terminals |
| Width | 1.77" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 9.09 |
| Ship length (cm) | 9.91 |
| Ship width (cm) | 4.5 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Wire Termination Type | Integrated Surge Suppression | Coil Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LC1D093BD | 3 | - | - | - | - | - | - | 24V | €239.09 | |
 |
LC1D09BL | 3 | Non-reversing | 3NO | 1NO/1NC | 24V DC | Screw Clamp | Yes | 24V | €248.55 | |
 |
LC1D09E7 | 3 | - | - | - | - | - | - | 48V | €225.10 | |
 |
LC1D18E7 | 3 | - | - | - | - | - | - | 48V | €341.66 | |
|
LC1D18F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €126.17 | |
 |
LC1D258F7 | 4 | Non-reversing | 2NO/2NC | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €315.79 | |
 |
LC1D25F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €342.57 |
