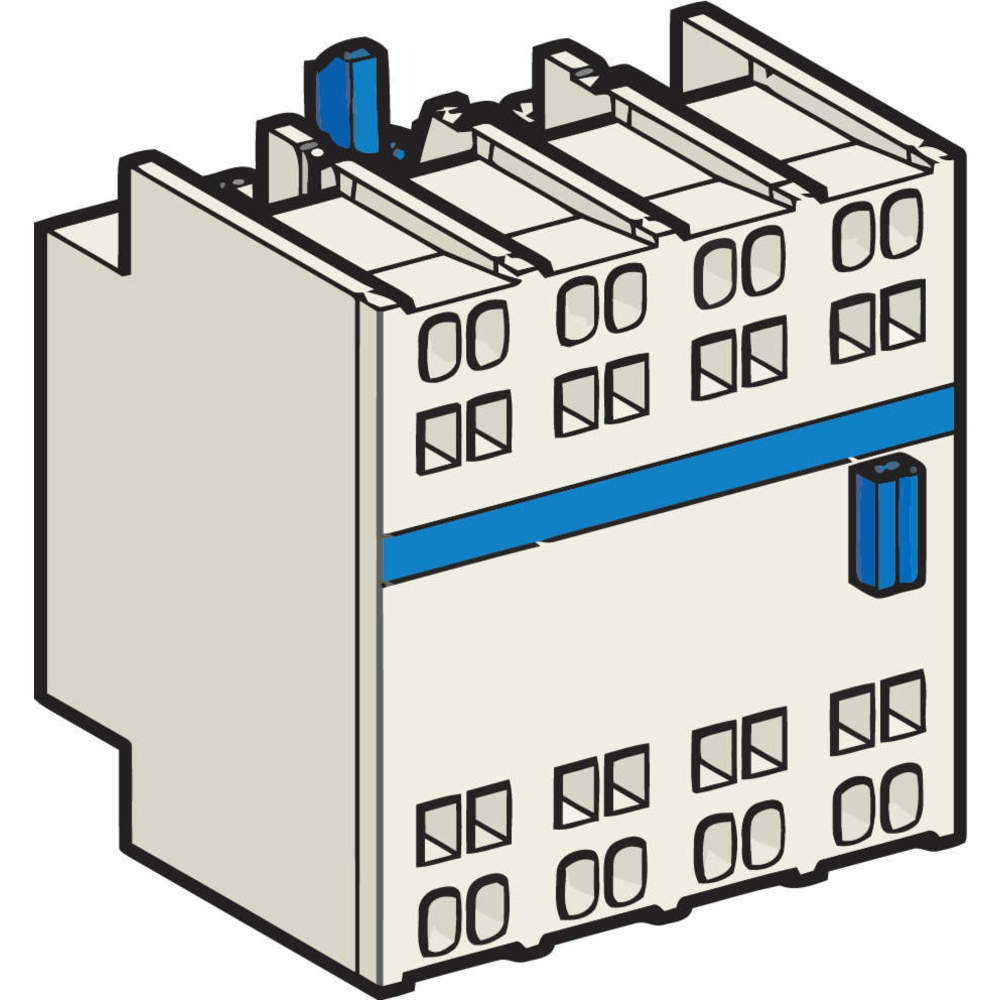

SCHNEIDER ELECTRIC LADC22 Contactor Auxiliary Contact Block IEC
Item: AJ2DPFModel: LADC22Cross Ref: 48N971
7 In Stock
Ships within 2 days via
13.00% off
€60.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor Auxiliary Contact Block Iec |
| Accessory Type | Contactor Auxiliary Contact Block IEC |
| Ambient Air Temp. For Operation | -5°C to +60°C |
| Ambient Air Temp. For Storage | -60°C to +80°C |
| Better World Verification | Green Premium |
| Connections Terminals | Screw Clamp Terminals 1 1-4 sq. mm Flexible With Cable End, Screw Clamp Terminals 1 1-4 sq. mm Flexible Without Cable End, Screw Clamp Terminals 2 1-2.5 sq. mm Flexible With Cable End, Screw Clamp Terminals 2 1-4 sq. mm Flexible Without Cable End, Screw Clamp Terminals 1 1-4 sq. mm Rigid Without Cable End, Screw Clamp Terminals 2 1-4 sq. mm Rigid Without Cable End |
| Contact Configuration | 2NO-2NC |
| Contact Form | Dpst-Nc + Dpst-No |
| Conventional Free Air Thermal Amps | 10A @ 60°C |
| Depth | 42 mm |
| Height | 48 mm |
| Ie Rated Operational Amps | 6A120V AC-15, 1.04A 690V AC-15, 0.55A 125V DC-13, 0.1A 600V DC-13 |
| Ip Degree Of Protection | IP20 Conforming to IEC 60529 |
| Mechanical Durability | 30 Mcycles |
| Min. Switching Amps | 5 mA |
| Min. Switching Voltage | 17V |
| No. Of Contact | 4 |
| Non-overlap Time | 1.5 Ms On De-Energisation No Overlap Between NC And NO Contact, 1.5 Ms On Energisation No Overlap Between NC And NO Contact |
| Operating Altitude | 9842.52 ft. (3000 m) |
| Overlap Time | 1.5 ms |
| Product Or Component Type | Auxiliary Contact Block |
| Series | LAD Series |
| Terminal Type | Screw Terminal |
| Ue Rated Operational Voltage | 690V AC/25-400 Hz |
| Ui Rated Insulation Voltage | 600/690V |
| Voltage | 690V |
| Width | 44 mm |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
