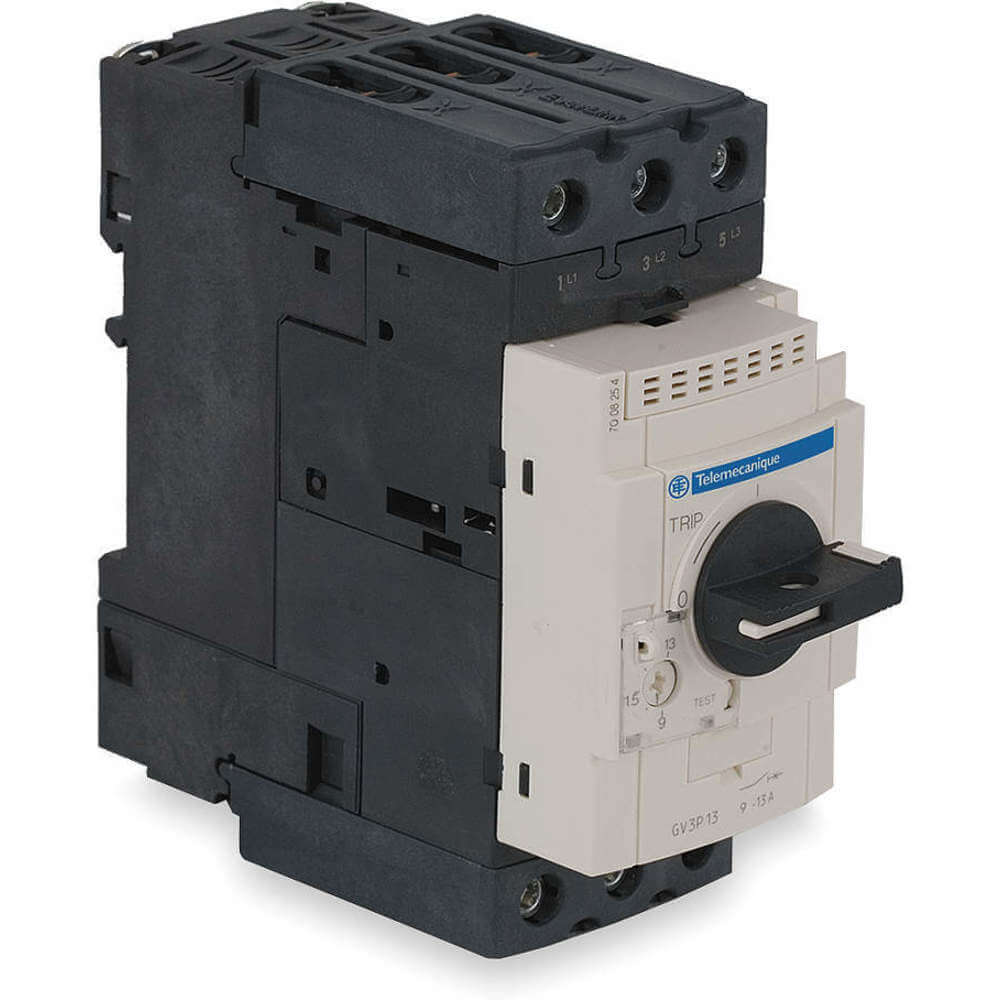

SCHNEIDER ELECTRIC GV3P13 Manual Motor Starter Knob 9-13A 3P M-0
Item: AH2PRAModel: GV3P13Cross Ref: 2MNK6
7 In Stock
Ships within 2 days via
10.00% off
€316.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Starter |
| Amps Rating | 9-13A |
| Depth | 4 2/5" |
| Electrical Operating Durability | 50000 |
| Features | Phase Loss Sensitivity |
| Frequency | 50/60 Hz |
| Height | 4.7" |
| Horsepower @ Single Phase - 120v Ac | 1 hp |
| Horsepower @ Single Phase - 240v Ac | 2 hp |
| Horsepower @ Three Phase - 208v Ac | 3 hp |
| Horsepower @ Three Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 600v Ac | 10 hp |
| Hp @ 3 Phase - 208v | 3 hp |
| Hp @ 3 Phase - 460-575v | 7.5/10 |
| Hp @ 3 Phase - 480v | 7 1/2 hp |
| Hp @ 3 Phase - 575v | 10 hp |
| Hp @ Three Phase - 480v Ac | 7 1/2 hp |
| Includes Pilot Light | No |
| Ip Rating | IP20 |
| Max Current (ac) | 13A |
| Max. Voltage | 600V AC |
| Maximum Operating Temperature | 140°F |
| Maximum Overload Relay Current Setting | 13A |
| Mechanical Operating Durability | 50000 |
| Minimum Operating Temperature | -4°F |
| Minimum Overload Relay Current Setting | 9A |
| Nema Enclosure Rating | No Enclosure |
| Number Of Poles | 3 |
| Operator | Rotary Knob |
| Operator | Selector Switch |
| Overall Depth | 5.35" |
| Overall Height | 5 1/5" |
| Overall Width | 2.17" |
| Overload Protection Type | Thermal |
| Overload Relay Amp Setting | 9-13A |
| Phase | Three |
| Phase Loss Sensitivity | Yes |
| Pilot Light | No |
| Resistance Properties | Fire Resistant |
| Reversing Capability | Non-reversing |
| Series | Tesys Deca |
| Starter Style | IEC |
| Thermal Units Required | None (Starter Includes Integrated Thermal Units) |
| Trip Class | Class 10 |
| Width | 2 2/5" |
| Wire Termination Type | Screw Clamps |
Shipping Info:
| Ship weight (kg) | 1 |
| Ship height (cm) | 13.21 |
| Ship length (cm) | 13.59 |
| Ship width (cm) | 5.51 |
| Country of Origin | FR |
Product Details:
- Enclosure NEMA Rating : No Enclosure
- HP @ 3 Phase - 240V : 3
- Phase Loss Sensitivity : No
- Special Features: Single Unit, Melting Alloy Thermal Overload
Product Variants
| Model | Amps Rating | Height | Depth | Pilot Light | Overload Relay Amp Setting | Operator | Overall Depth | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GV2ME01 | 48-65A | 3 1/2" | 3.03" | Yes | 0.1-0.16A | Push Button | 3.09" | 3 1/2" | €125.53 | |
| GV2ME02 | 60-100A | 3 1/2" | 3.03" | No | 0.16-0.25A | Push Button | 3.09" | 3 1/2" | €125.53 | |
| GV2ME32 | 24-32A | 3 1/2" | 3.03" | No | 24-32A | Push Button | - | - | €187.46 | |
| GV2P01 | - | 3 1/2" | 3.83" | No | 0.1-0.16A | Selector Switch | 3.82" | 3 1/2" | €371.78 | |
| GV2P02 | - | 3 1/2" | 3.83" | No | 0.16-0.25A | Selector Switch | 3.82" | 3 1/2" | €325.02 | |
| GV2P03 | 15-25A | 3 1/2" | 3.83" | No | 0.25-0.4A | Selector Switch | 3.82" | 3 1/2" | €356.76 | |
| GV2P04 | - | 3 1/2" | 3.83" | Yes | 0.4-0.63A | Selector Switch | 3.82" | 3 1/2" | €403.42 |
