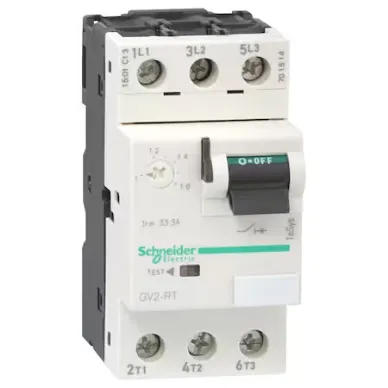

SCHNEIDER ELECTRIC GV2RT08 Manual Starter 600Vac 4Amp Iec
Item: CU2CDNModel: GV2RT08Cross Ref: 48P330
7 In Stock
Ships within 2 days via
13.00% off
€217.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Switch |
| Ambient Air Temp. For Operation | -20°C to +60°C |
| Ambient Air Temp. For Storage | -40°C to +70°C |
| Better World Verification | Green Premium |
| Control Type | Toggle |
| Conventional Free Air Thermal Amps | 4A IEC 60947-4-1 |
| Depth | 78.5 mm |
| Device Application | Motor Protection |
| Device Short Name | Gv2rt |
| Electrical Durability | 100000 Cycles AC-3 415V |
| Fire Resistance | 960°C IEC 60695-2-11 |
| Fixing Mode | 35 mm Sy mmetrical DIN Rail Clipped, Panel Screwed With Adaptor Plate |
| Height | 89 mm |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Line Rated Amps | 4A |
| Magnetic Tripping Amps | 78-78A |
| Mechanical Durability | 100000 Cycles |
| Network Type | AC |
| Operating Altitude | 6561.68 ft. (2000m) |
| Power Dissipation Per Pole | 2.5 W |
| Product Or Component Type | Motor Circuit Breaker |
| Range | Tesys Deca |
| Series | GV2 Series |
| Suitability For Isolation | Yes |
| Thermal Protection Adjustment Range | 2.5-4A |
| Ui Rated Insulation Voltage | 690V AC at 50/60 Hz |
| Uimp Rated Impulse Withstand Voltage | 6 kV |
| Width | 45 mm |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Product Variants
| Product | Model | Height | Amps | Type | Depth | Series | Line Rated Amps | Power Dissipation Per Pole | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VZ18 | 8 mm | - | - | - | - | - | - | - | €59.66 | |
|
VZ31 | 8 mm | - | - | - | - | - | - | - | €61.33 | |
 |
GV2ME143 | 101 mm | - | - | 78.5 mm | - | 10A | 2.5 W | - | €269.92 | |
 |
GV2RT14 | 89 mm | - | - | 78.5 mm | - | 10A | 2.5 W | - | €246.36 | |
 |
GV2ME163 | 101 mm | - | - | 78.5 mm | - | 14A | 2.5 W | - | €318.44 | |
 |
GV2RT07 | 89 mm | - | - | 78.5 mm | GV2 Series | 2.5A | 2.5 W | - | €270.67 | |
 |
GV3P18 | 132 mm | - | - | 136 mm | - | 18A | 8 W | - | €389.14 |
