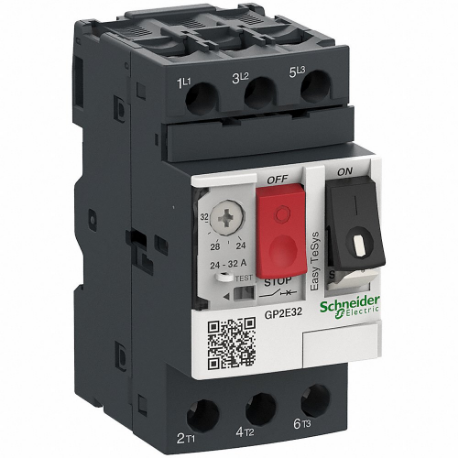

SCHNEIDER ELECTRIC GP2E32 Easy Tesys, 3R/4, 32 A Ac, 3 Poles, 690 VAC
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€139.45 /unit
This product can only be shipped in multiples of 24Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Manual Motor Switch |
| Amps Rating | 32A |
| Depth | 3.09" |
| Electrical Operating Durability | 100000 |
| Enclosure Nema Rating | NEMA 3R, NEMA 4 |
| Features | Phase Loss Sensitivity |
| Frequency | 50/60 Hz |
| Height | 3 1/2" |
| Horsepower @ Single Phase - 240v Ac | 5 hp |
| Horsepower @ Three Phase - 600v Ac | 25 hp |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 230v | 6 hp |
| Hp @ 3 Phase - 240v | 10 hp |
| Hp @ 3 Phase - 460-575v | 20 hp |
| Hp @ 3 Phase - 480v | 20 hp |
| Hp @ 3 Phase - 575v | 25 hp |
| Hp @ Three Phase - 208v Ac | 7 1/2 hp |
| Includes Pilot Light | No |
| Ip Rating | IP20 |
| Max Current (ac) | 32A |
| Max. Voltage | 690V AC |
| Maximum Operating Temperature | 140°F |
| Maximum Overload Relay Current Setting | 32A |
| Mechanical Operating Durability | 100000 |
| Minimum Operating Temperature | -4°F |
| Minimum Overload Relay Current Setting | 24A |
| Mounting Hole Distance - Height | 1.97" |
| Mounting Hole Distance - Width | 1.38" |
| Mounting Style | DIN Rail |
| Nema Enclosure Rating | No Enclosure |
| Number Of Poles | 3 |
| Operator | Push Button |
| Overall Depth | 3.09" |
| Overall Height | 3 1/2" |
| Overall Width | 1.77" |
| Overload Protection Type | Thermal |
| Phase | Three |
| Phase Loss Sensitivity | Yes |
| Pilot Light | No |
| Resistance Properties | Fire Resistant |
| Reversing Capability | Non-reversing |
| Series | TESYS EASY Series |
| Starter Style | IEC |
| Starter Type | Manual |
| Thermal Units Required | None (Starter Includes Integrated Thermal Units) |
| Trip Class | Class 10 |
| Wire Termination Type | Screw Clamps |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 7.85 |
| Ship width (cm) | 4.5 |
| Country of Origin | TH |
