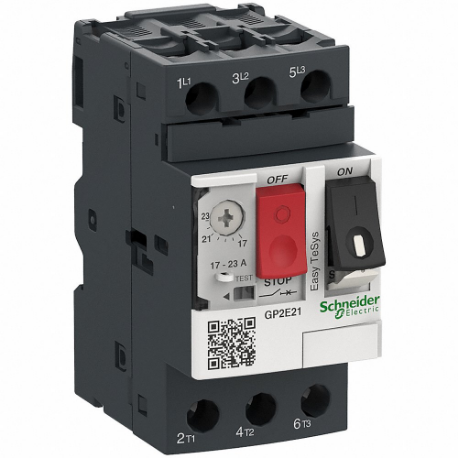

SCHNEIDER ELECTRIC GP2E21 Easy Tesys, 3R/4, 23 A Ac, 3 Poles, 690 VAC
Item: CU2CRMModel: GP2E21Cross Ref: 787P61
7 In Stock
Ships within 2 days via
13.00% off
€84.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Switch |
| Amps | 23A |
| Depth | 3.09" |
| Electrical Operating Durability | 100000 |
| Features | Phase Loss Sensitivity |
| Frequency | 50/60 Hz |
| Height | 3 1/2" |
| Hp @ 1 Phase-120v | 1 1/2 hp |
| Hp @ 1 Phase-230v | 3 hp |
| Hp @ 1 Phase-240v | 3 hp |
| Hp @ 3 Ph | 20 hp |
| Hp @ 3 Phase-208v | 5 hp |
| Hp @ 3 Phase-240v | 7 1/2 hp |
| Hp @ 3 Phase-460-575v | 15 hp |
| Hp @ 3 Phase-480v | 15 hp |
| Hp @ 3 Phase-575v | 20 hp |
| Hp @ 3 Phase-600v | 20 hp |
| Included Pilot Light | No |
| Ip Rating | IP20 |
| Line Rated Amps | 23A |
| Max. Amps (ac) | 23A |
| Max. Operating Temp. | 140°F |
| Max. Overload Relay Amps Setting | 23A |
| Max. Voltage | 690V AC |
| Mechanical Operating Durability | 100000 |
| Min. Operating Temp. | -4°F |
| Min. Overload Relay Amps Setting | 17A |
| Mounting Hole Distance | 1.97" |
| Mounting Hole Distance Width | 1.38" |
| Mounting Hole Distance-height | 1.97" |
| Mounting Hole Width | 1.38" |
| Mounting Style | DIN Rail |
| Nema Enclosure Rating | No Enclosure |
| Nema Size | Not Applicable |
| No. Of Poles | 3 |
| Operating Position | Any Position |
| Operator | Push Button |
| Overall Depth | 3.09" |
| Overall Height | 3 1/2" |
| Overall Width | 1.77" |
| Overload Protection Type | Thermal |
| Phase | 3 |
| Phase Loss Sensitivity | Yes |
| Pilot Light | No |
| Power Dissipation Per Pole | 2.5 W |
| Resistance Properties | Fire Resistant |
| Reversing Capability | Non Reversing |
| Series | TESYS EASY Series |
| Starter Style | IEC |
| Starter Type | Manual |
| Terminal Connection Type | Screw Clamp Terminals |
| Thermal Units Required | None (Starter Includes Integrated Thermal Units) |
| Trip Class | Class 10 |
| Width | 1.77" |
| Wire Termination Type | Screw Clamps |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 7.85 |
| Ship width (cm) | 4.5 |
| Country of Origin | TH |
Product Variants
| Product | Model | Height | Amps | Type | Depth | Series | Line Rated Amps | Power Dissipation Per Pole | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VZ18 | 8 mm | - | - | - | - | - | - | - | €59.66 | |
|
VZ31 | 8 mm | - | - | - | - | - | - | - | €61.33 | |
 |
GV2ME143 | 101 mm | - | - | 78.5 mm | - | 10A | 2.5 W | - | €269.92 | |
 |
GV2RT14 | 89 mm | - | - | 78.5 mm | - | 10A | 2.5 W | - | €246.36 | |
 |
GV2ME163 | 101 mm | - | - | 78.5 mm | - | 14A | 2.5 W | - | €318.44 | |
 |
GV2RT07 | 89 mm | - | - | 78.5 mm | GV2 Series | 2.5A | 2.5 W | - | €270.67 | |
 |
GV3P18 | 132 mm | - | - | 136 mm | - | 18A | 8 W | - | €389.14 |
