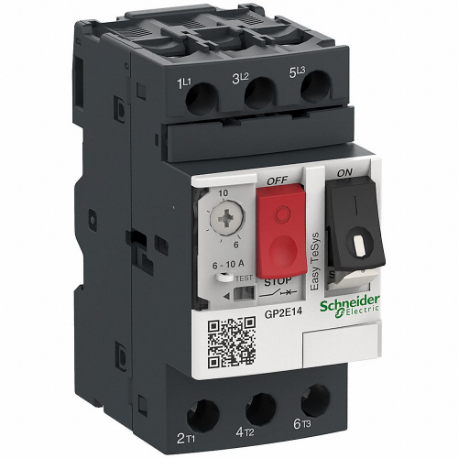

SCHNEIDER ELECTRIC GP2E14 Easy Tesys, 3R/4, 10 A Ac, 3 Poles, 690 VAC
Item: CU2CRHModel: GP2E14Cross Ref: 787P58
7 In Stock
Ships within 2 days via
10.00% off
€113.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Switch |
| Amps Rating | 10A |
| Depth | 3.09" |
| Electrical Operating Durability | 100000 |
| Features | Phase Loss Sensitivity |
| Frequency | 50/60 Hz |
| Height | 3 1/2" |
| Horsepower @ Single Phase - 120v Ac | 1/2 hp |
| Horsepower @ Three Phase | 7 1/2 hp |
| Horsepower @ Three Phase - 208v Ac | 2 hp |
| Hp @ 1 Phase - 120v | 1/2 hp |
| Hp @ 1 Phase - 230v | 1 1/2 hp |
| Hp @ 3 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 460-575v | 5 hp |
| Hp @ 3 Phase - 480v | 5 hp |
| Hp @ 3 Phase - 575v | 7 1/2 hp |
| Hp @ Single Phase - 240v Ac | 1 1/2 hp |
| Hp @ Three Phase - 600v Ac | 7 1/2 hp |
| Includes Pilot Light | No |
| Ip Rating | IP20 |
| Line Rated Current | 10A |
| Max Current (ac) | 10A |
| Max. Overload Relay Amps Setting | 10A |
| Max. Voltage | 690V AC |
| Maximum Operating Temperature | 140°F |
| Mechanical Operating Durability | 100000 |
| Minimum Operating Temperature | -4°F |
| Minimum Overload Relay Current Setting | 6A |
| Mounting Hole Distance | 1.97" |
| Mounting Hole Distance - Height | 1.97" |
| Mounting Hole Distance - Width | 1.38" |
| Mounting Hole Width | 1.38" |
| Mounting Style | DIN Rail |
| Nema Enclosure Rating | No Enclosure |
| Nema Size | Not Applicable |
| Number Of Poles | 3 |
| Operating Position | Any Position |
| Operator | Push Button |
| Overall Depth | 3.09" |
| Overall Height | 3 1/2" |
| Overall Width | 1.77" |
| Overload Protection Type | Thermal |
| Phase | Three |
| Pilot Light | No |
| Power Dissipation Per Pole | 2.5 W |
| Resistance Properties | Fire Resistant |
| Reversing Capability | Non-reversing |
| Series | TESYS EASY Series |
| Starter Style | IEC |
| Starter Type | Manual |
| Terminal Connection Type | Screw Clamp Terminals |
| Thermal Units Required | None (Starter Includes Integrated Thermal Units) |
| Trip Class | Class 10 |
| Width | 1.77" |
| Wire Termination Type | Screw Clamps |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 7.85 |
| Ship width (cm) | 4.5 |
| Country of Origin | TH |
Product Variants
| Product | Model | Amps Rating | Height | Depth | Overall Depth | Overall Height | Overall Width | Operator | Hp @ 3 Phase - 575v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VZ18 | - | 8 mm | - | - | - | - | - | - | €69.37 | |
|
VZ31 | - | 8 mm | - | - | - | - | - | - | €70.70 | |
 |
GV2ME143 | - | 101 mm | 78.5 mm | - | - | - | - | - | €385.61 | |
 |
GV2RT14 | - | 89 mm | 78.5 mm | - | - | - | - | - | €314.26 | |
 |
GV2ME163 | - | 101 mm | 78.5 mm | - | - | - | - | - | €445.83 | |
 |
GV2RT07 | - | - | - | - | - | - | - | - | €345.75 | |
 |
GV3P18 | - | 132 mm | 136 mm | - | - | - | - | - | €739.93 |
