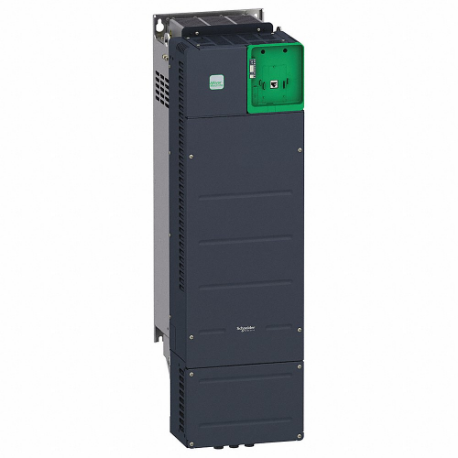

SCHNEIDER ELECTRIC ATV340D55N4E Variable Frequency Drive, 480VAC, 100 hp Max Output Power, NEMA 1, No Bypass
Get it by Friday, Feb 13
10.00% off
€11,453.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Variable Frequency Drive |
| Adjustable Acceleration Time | 0.01 sec. to 9999 sec. |
| Adjustable Deceleration Time | 0.01 sec. to 9999 sec. |
| Application | Industrial Process And Utilities |
| Brake Chopper Included | Yes |
| Bypass Included | No |
| Color | Black |
| Digital Readout | No |
| Display Type | None |
| Displays | None |
| Dynamic Braking | No |
| Enclosure | Open |
| Enclosure Rating | NEMA 1 |
| Enclosure Type | Open |
| Ethernet Port Included | Yes |
| Input Frequency | 50/60 Hz |
| Input Phase | 3 |
| Input Phase Ac | 3 |
| Input Type | Analog, Discrete |
| Input Voltage | 480V AC |
| Input Voltage Range | 380-480V AC |
| Max. Output Amps | 145A |
| Maximum Output Power | 100 hp |
| No. Of Inputs | 6 |
| Number Of Inputs | 2 Analog, 1 Discrete, 3 Relay |
| Number Of Outputs | (3) Analog, (8) Discrete |
| Output Frequency | 0.1-599 Hz |
| Output Frequency Range | 0.1-599 Hz |
| Output Phase | 3 |
| Output Power | 100 hp |
| Output Type | Analog, Discrete |
| Output Voltage | 480V AC |
| Output Voltage Range | 323-528V AC |
| Overall Depth | 12 1/8" |
| Overall Height | 35 3/4" |
| Overall Width | 10 5/8" |
| Product Datasheet | schneider-electric-atv340d55n4e.pdf |
| Protection | Break On The Control Circuit, Dc Bus Overvoltage, Exceeding Limit Speed, Input Supply Loss, Line Supply Overvoltage, Line Supply Undervoltage, Motor Phase Loss, Output Overcurrent Between Motor Phase And Earth, Output Overcurrent Between Motor Phases, Overcurrent, Overheating, Safe Torque Off, Short Circuit Between Motor Phase And Earth, Short Circuit Between Motor Phases, Thermal Protection |
| Series | Altivar Machine ATV340 Series |
| Start/stop Control | Programmable |
| Style | Ethernet |
| Torque Application | Constant Torque, Variable Torque |
| With Bypass/no Bypass | No Bypass |
| With Line Contactor/no Line Contactor | With Line Contactor |
Shipping Info:
| Ship weight (kg) | 58.5 |
| Ship height (cm) | 90.81 |
| Ship length (cm) | 30.8 |
| Ship width (cm) | 26.99 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Input Frequency | Input Phase | Output Voltage | Enclosure Rating | Input Voltage | Output Power | Bypass Included | Output Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN015G1S-4U | 50/60 Hz | 1, 3 | 480V AC | IP20 | 460V AC | - | - | - | €1,987.19 | |
| FRN020G1S-4U | 50/60 Hz | 1, 3 | 480V AC | NEMA 1 | 480V AC | - | - | - | €2,156.36 | |
| FRN025G1S-4U | 50/60 Hz | 1, 3 | 480V AC | IP20 | 460V AC | - | - | - | €2,701.48 | |
| FRN030G1S-4U | 50/60 Hz | 1, 3 | 480V AC | IP20 | 460V AC | - | - | - | €3,074.13 | |
| FRN040G1S-4U | 120 Hz | 1, 3 | 380-480V AC | - | - | - | - | - | €3,742.54 | |
| FRN050F1S-2U | 120 Hz | 3 | 200-240V AC | - | - | - | - | - | €6,675.75 | |
| FRN050G1S-4U | 50/60 Hz | 1, 3 | 480V AC | NEMA 1 | 480V AC | - | - | - | €4,064.45 |
