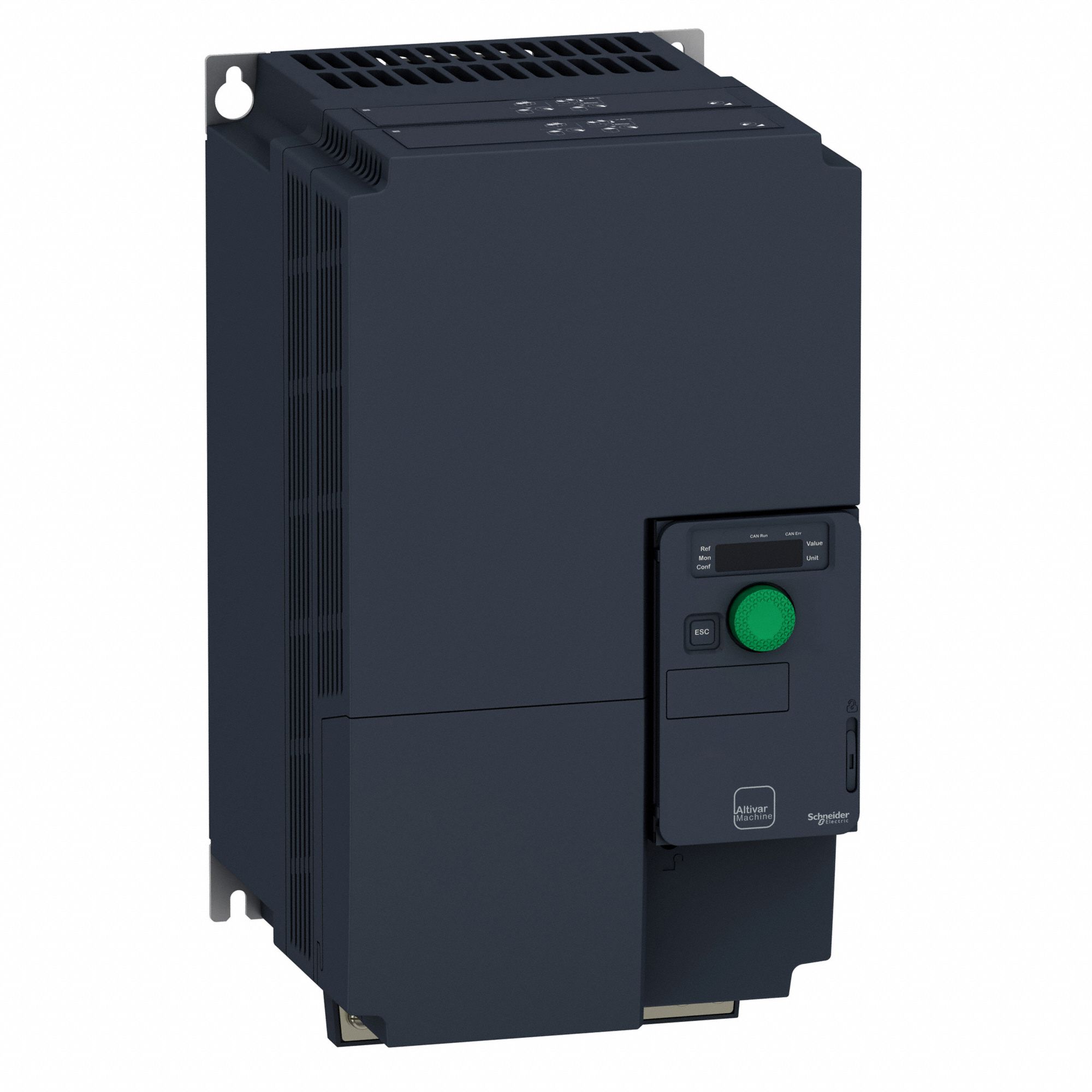

SCHNEIDER ELECTRIC ATV320D11M3C Variable Frequency Drive, 240VAC, 15 hp Max Output Power, Nema 1, No Bypass
Get it by Monday, Aug 31
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€1,553.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Variable Frequency Drive |
| Adjustable Acceleration Time | 0 sec. to 6000 sec. |
| Adjustable Deceleration Time | 0 sec. to 6000 sec. |
| Application | Complex Machines |
| Brake Chopper Included | Yes |
| Color | Black |
| Control Method | Keypad, Remote, Terminal, Network |
| Control Type | Keypad, Remote, Terminal, Network |
| Depth | 7 12/25" |
| Digital Readout | Output Frequency, Output Current, Output Voltage |
| Display Type | LED |
| Displays | LED |
| Dynamic Braking | No |
| Enclosure | Open |
| Enclosure Rating | NEMA 1 |
| Enclosure Type | Open |
| Ethernet Port Included | No |
| For Use With | Three-Phase Asynchronous, Synchronous Motors |
| Height | 12.99" |
| Input Frequency | 50/60 Hz |
| Input Phase | 3 |
| Input Phase Ac | Three |
| Input Type | Analog, Discrete |
| Input Voltage | 170-264V AC , 240V AC |
| Key Pad Lockout | Yes |
| Max. Hp | 15 hp |
| Max. Output Amps | 54A |
| Max. Output Power | 15 hp |
| No. Of Inputs | 3 Analog, 7 Discrete |
| No. Of Outputs | (1) Analog, (3) Discrete |
| Output Amps | 54A |
| Output Frequency | 0.1-599 Hz |
| Output Frequency Range | 0.1-599 Hz |
| Output Phase | 3 |
| Output Power | 15 hp |
| Output Type | Analog, Discrete |
| Output Voltage | 200-240V AC , 240V AC |
| Overall Depth | 7 7/8" |
| Overall Height | 13" |
| Overall Width | 7" |
| Phase | 3 |
| Power Output | 15 hp |
| Product Datasheet | schneider-electric-atv320d11m3c.pdf |
| Protection | Input Phase Breaks Drive, Overcurrent Between Output Phases And Earth Drive, Overheating Protection Drive, Short Circuit Between Motor Phases Drive, Thermal Protection Drive |
| Series | ALTIVAR 320 Series |
| Start/stop Control | Programmable |
| Starting Torque | 150% |
| Style | Compact |
| Torque @ 1 Hz | 1.5 |
| Torque Application | Constant Torque, Variable Torque |
| With Bypass/no Bypass | No Bypass |
| With Line Contactor/no Line Contactor | No Line Contactor |
Shipping Info:
| Ship weight (kg) | 7.82 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 20 |
| Ship width (cm) | 17.78 |
| Country of Origin | ID |
Documentation:
Product Variants
| Model | Input Voltage | Height | Depth | Max. Output Amps | Input Phase | Output Frequency | Output Voltage | Input Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN015G1S-4U | 460V AC | 10 6/25" | 7 17/25" | 23A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €1,987.19 | |
| FRN020G1S-4U | 480V AC | 10 6/25" | 7 17/25" | 24.5A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €2,029.51 | |
| FRN025G1S-4U | 460V AC | 15 3/4" | 7 17/25" | 32A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €2,701.48 | |
| FRN030G1S-4U | 460V AC | 15 3/4" | 7 17/25" | 45A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €3,074.13 | |
| FRN040G1S-4U | - | 15 3/4" | 7 17/25" | 49A | 1, 3 | 0-500 Hz | 380-480V AC | 120 Hz | €3,742.54 | |
| FRN050F1S-2U | - | 21.85" | 10 1/25" | 143A | 3 | 0-120 Hz | 200-240V AC | 120 Hz | €6,675.75 | |
| FRN050G1S-4U | 480V AC | 21.85" | 10 1/25" | 75A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €4,064.45 |
