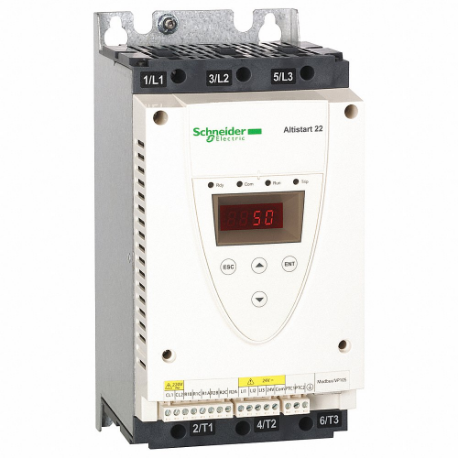

SCHNEIDER ELECTRIC ATS22D47S6 Soft Start, 230 To 600V Ac, 47 A Output Current
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€1,107.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Soft Start |
| Application | Fans, Pumps |
| Bypass Included | Yes |
| Communication Port | Modbus |
| Control Voltage | 230V AC |
| Depth | 6.65" |
| Display | 4 LED (Ready, Communication, Run And Trip) |
| Display Type | 4 LED (Ready, Communication, Run And Trip) |
| Enclosure Rating | IP00 |
| For Use With | Asynchronous Induction (Squirrel Cage) Motors, Centrifugal Pump |
| Frequency | 50/60 Hz |
| Height | 265 mm |
| Input And Output Types | 1 PTC Probe Analog Input, 2 (NC/NO) Relay Outputs, 3 Logic Inputs |
| Input Voltage | 230-600V AC |
| Inputs/outputs | 1 PTC Probe Analog Input, 2 (NC/NO) Relay Outputs, 3 Logic Inputs |
| Output Amps | 47A |
| Output Voltage | 230-600V AC |
| Overall Depth | 6.65" |
| Overall Height | 10.43" |
| Overall Width | 5.12" |
| Phase | 3 |
| Power @ 3 Phase-230v | 11 kW |
| Power Output | 11 kW @ 3 Phase, 230V AC, 22 kW @ 3 Phase, 400V AC, 22 kW @ 3 Phase, 440V AC, 30 kW @ 3 Phase, 500V AC |
| Product Datasheet | schneider-electric-ats22d47s6.pdf |
| Protects | Phase Failure Line, Thermal Protection Motor, Thermal Protection Starter |
| Start Type | Torque Control Start |
| Width | 130 mm |
| With Bypass/no Bypass | With Bypass |
Shipping Info:
| Ship weight (kg) | 5.54 |
| Ship height (cm) | 26.49 |
| Ship length (cm) | 16.89 |
| Ship width (cm) | 13 |
| Country of Origin | ID |
Documentation:
Product Variants
| Product | Model | Height | Depth | Input Voltage | Output Voltage | Output Amps | Phase | Overall Width | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

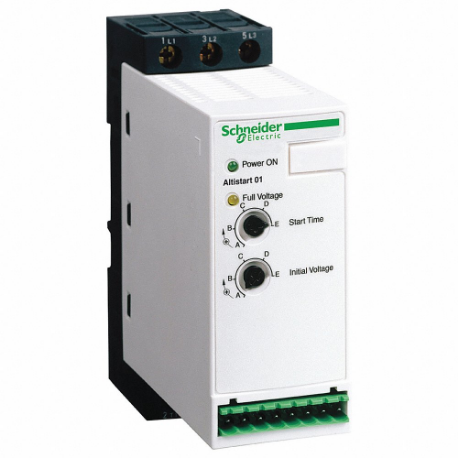

ATS01N125FT | 4 22/25" | 5 4/25" | 110-480V AC | 110-480V AC | 25A | 1 | 1.77" | 5.16" | €374.67 | |
 |

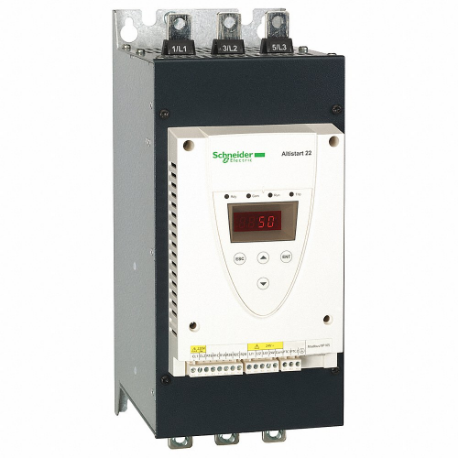

ATS22C11Q | 14.02" | 9 1/25" | 230-440V AC | 230-440V AC | 110A | 3 | 5.91" | 9.04" | €2,337.51 | |
|
ATS22C14Q | 356 mm | 9 1/25" | 230-440V AC | 230-440V AC | 140A | 3 | 5.91" | 9.04" | €2,853.38 | |
|
ATS22C17Q | 356 mm | 9 1/25" | 230-440V AC | 230-440V AC | 170A | 3 | 5.91" | 9.04" | €3,273.70 | |
 |
ATS22C48Q | 455 mm | 13.37" | 230-440V AC | 230-440V AC | 480A | 3 | 11.97" | 13.37" | - | RFQ
|
 |

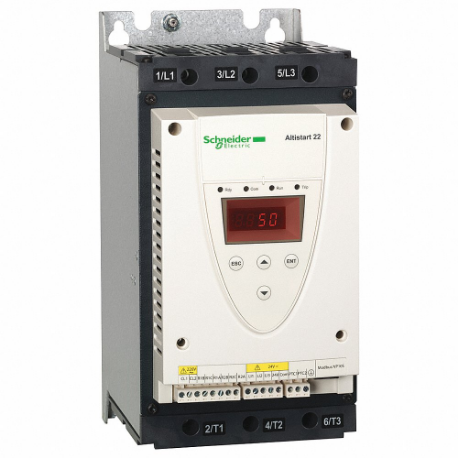

ATS22D62Q | 295 mm | 8.15" | 230-440V AC | 230-440V AC | 62A | 3 | 5.71" | 8.15" | €1,504.72 | |
|
ATS22D75Q | 11.61" | 8.15" | 230-440V AC | 230-440V AC | 75A | 3 | 5.71" | 8.15" | €1,724.44 |
