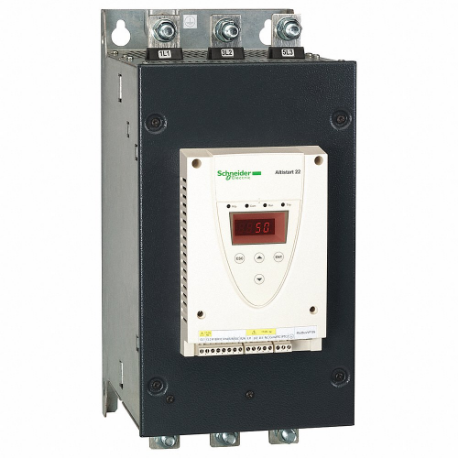

SCHNEIDER ELECTRIC ATS22C32S6 Soft Start, 230 To 600V Ac, 320 A Output Current
Get it by Wednesday, Dec 24
10.00% off
€5,506.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Soft Start |
| Application | Fans, Pumps |
| Communication Port | Modbus |
| Control Voltage | 230V AC |
| Depth | 11.77" |
| Display | 4 LED (Ready, Communication, Run And Trip) |
| Display Type | 4 LED (Ready, Communication, Run And Trip) |
| Enclosure Rating | IP00 |
| For Use With | Asynchronous Induction (Squirrel Cage) Motors, Centrifugal Pump |
| Frequency | 50/60 Hz |
| Height | 425 mm |
| Input And Output Types | 1 PTC Probe Analog Input, 2 (NC/NO) Relay Outputs, 3 Logic Inputs |
| Input Voltage | 230-600V AC |
| Inputs/outputs | 1 PTC Probe Analog Input, 2 (NC/NO) Relay Outputs, 3 Logic Inputs |
| Output Amps | 320A |
| Output Current | 320A |
| Output Voltage | 230-600V AC |
| Overall Depth | 11.77" |
| Overall Height | 16.73" |
| Overall Width | 8.11" |
| Phase | 3 |
| Power @ 3 Phase - 230v | 90 kW |
| Power Output | 90 kW @ 3 Phase, 230V AC, 160 kW @ 3 Phase, 400V AC, 160 kW @ 3 Phase, 440V AC, 220 kW @ 3 Phase, 500V AC |
| Protects | Phase Failure Line, Thermal Protection Motor, Thermal Protection Starter |
| Start Type | Torque Control Start |
| Width | 206 mm |
| With Bypass / No Bypass | With Bypass |
Shipping Info:
| Ship weight (kg) | 26.54 |
| Ship height (cm) | 42.49 |
| Ship length (cm) | 29.9 |
| Ship width (cm) | 20.6 |
| Country of Origin | CN |
Product Variants
| Product | Model | Input Voltage | Enclosure Rating | Control Voltage | Height | Depth | Output Voltage | Start Type | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ATS01N125FT | 110-480V AC | IP20 | 110/240V AC/24V DC | 4 22/25" | 5 4/25" | 110-480V AC | Voltage Ramp Start | Asynchronous Motors | €470.44 | |
 |
ATS22C11Q | 230-440V AC | IP20 | 230V AC | 14.02" | 9 1/25" | 230-440V AC | Torque Control Start | Fans, Pumps | €2,913.19 | |
|
ATS22C14Q | 230-440V AC | IP00 | 230V AC | 356 mm | 9 1/25" | 230-440V AC | Torque Control Start | Fans, Pumps | €3,556.18 | |
|
ATS22C17Q | 230-440V AC | IP20 | 230V AC | 356 mm | 9 1/25" | 230-440V AC | Torque Control Start | Fans, Pumps | €4,080.04 | |
 |
ATS22C48Q | 230-440V AC | IP00 | 230V AC | 455 mm | 13.37" | 230-440V AC | Torque Control Start | Fans, Pumps | €8,459.79 | |
 |
ATS22D62Q | 230-440V AC | IP20 | 230V AC | 295 mm | 8.15" | 230-440V AC | Torque Control Start | Fans, Pumps | €1,875.31 | |
|
ATS22D75Q | 230-440V AC | IP20 | 230V AC | 11.61" | 8.15" | 230-440V AC | Torque Control Start | Fans, Pumps | €2,149.17 |
