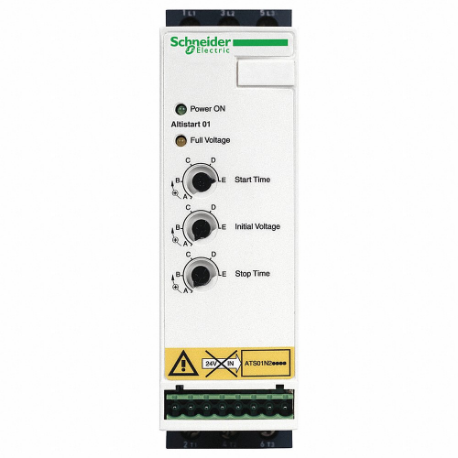

SCHNEIDER ELECTRIC ATS01N232QN Soft Start, 380 To 415V Ac, 32 A Output Current
Get it by Thursday, Feb 26
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€573.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Soft Start |
| Application | Asynchronous Motors |
| Bypass Included | Yes |
| Depth | 5 4/25" |
| Display | 2 LED (Starter Powered Up, Nominal Voltage Reached) |
| Display Type | 2 LED (Starter Powered Up, Nominal Voltage Reached) |
| Enclosure Rating | IP20 |
| For Use With | Asynchronous Motor |
| Frequency | 50/60 Hz |
| Height | 154 mm |
| Input Voltage | 380-415V AC |
| Output Amps | 32A |
| Output Current | 32A |
| Output Voltage | 380-415V AC |
| Overall Depth | 5.16" |
| Overall Height | 6.06" |
| Overall Width | 1.77" |
| Phase | 3 |
| Power Output | 15 kW @ 3 Phase, 380/415V AC |
| Product Datasheet | schneider-electric-ats01n232qn.pdf |
| Ramp Time | 1 sec. to 10 sec. |
| Start Type | Voltage Ramp Start |
| Starting Torque | 30% to 80% |
| Stop Time | 1 sec. to 10 sec. |
| Width | 45 mm |
| With Bypass / No Bypass | With Bypass |
Shipping Info:
| Ship weight (kg) | 0.67 |
| Ship height (cm) | 15.39 |
| Ship length (cm) | 13.11 |
| Ship width (cm) | 4.5 |
| Country of Origin | DE |
Documentation:
Product Variants
| Product | Model | Input Voltage | Enclosure Rating | Control Voltage | Height | Depth | Output Voltage | Start Type | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ATS01N125FT | 110-480V AC | IP20 | 110/240V AC/24V DC | 4 22/25" | 5 4/25" | 110-480V AC | Voltage Ramp Start | Asynchronous Motors | €470.44 | |
 |
ATS22C11Q | 230-440V AC | IP20 | 230V AC | 14.02" | 9 1/25" | 230-440V AC | Torque Control Start | Fans, Pumps | €2,913.19 | |
|
ATS22C14Q | 230-440V AC | IP00 | 230V AC | 356 mm | 9 1/25" | 230-440V AC | Torque Control Start | Fans, Pumps | €3,556.18 | |
|
ATS22C17Q | 230-440V AC | IP20 | 230V AC | 356 mm | 9 1/25" | 230-440V AC | Torque Control Start | Fans, Pumps | €4,080.04 | |
 |
ATS22C48Q | 230-440V AC | IP00 | 230V AC | 455 mm | 13.37" | 230-440V AC | Torque Control Start | Fans, Pumps | €8,459.79 | |
 |
ATS22D62Q | 230-440V AC | IP20 | 230V AC | 295 mm | 8.15" | 230-440V AC | Torque Control Start | Fans, Pumps | €1,875.31 | |
|
ATS22D75Q | 230-440V AC | IP20 | 230V AC | 11.61" | 8.15" | 230-440V AC | Torque Control Start | Fans, Pumps | €2,149.17 |
