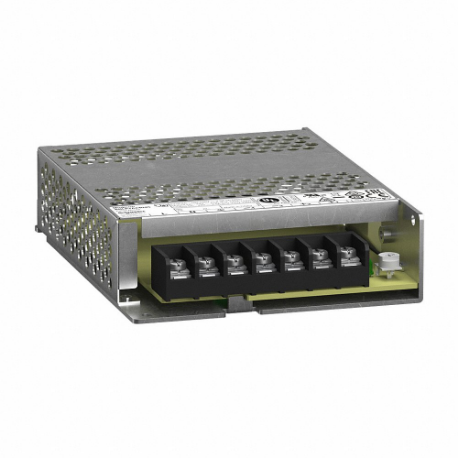

SCHNEIDER ELECTRIC ABLP1A24045 Force, 100 to 240 VAC, Single, 24 VDC, 100W, 4.5, Panel
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€146.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Power Supply |
| Case Material | Aluminum |
| Current - Output | 4.17A |
| Depth | 129 mm |
| Features | Efficiency 88% At 230 V Ac, Green Premium Product, Integrated Fuse, Mercury Free, Parallel And Serial Output Coupling, Relative Humidity 95% Without Condensation |
| Frequency | 50-60 Hz |
| Height | 30 mm |
| Hold Up Time | Greater Than 20 ms At 115V AC, Greater Than 40 ms At 230V AC |
| Housing Material | Aluminum |
| Input Frequency - Maximuim | 60 Hz |
| Input Frequency - Minimum | 50 Hz |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 100-240V AC |
| Ip Rating | IP10 |
| Manufacturer Warranty | 18 Months |
| Maximum Efficiency @ 230v Ac | 89% |
| Mean Time Between Failures (mtbf) | 700000 hrs. |
| Mounting | DIN Rail |
| Nema Rating | Not Applicable |
| Operating Temp. Range | -30°C to +70°C |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -22°F |
| Output Noise - Maximum | 150 mV |
| Output Power - Rated | 100 W |
| Output Voltage | 24V DC |
| Output Voltage - Minimum | 21.6V DC |
| Output Voltage - Nominal | 24V DC |
| Overall Depth | 5.08" |
| Overall Height | 1.18" |
| Overall Width | 3.82" |
| Phase | Single |
| Power Rating | 100 W |
| Power Supply Style | Switching |
| Product Datasheet | schneider-electric-ablp1a24045.pdf |
| Series | ABL Series |
| Status Indicator | Green LED |
| Style | Switching |
| Width | 97 mm |
| Wire Connection Type | Screw Terminals |
| Wire Size - Maximum | 14 AWG |
| Wire Size - Minimum | 18 AWG |
Shipping Info:
| Ship weight (kg) | 0.42 |
| Ship height (cm) | 3 |
| Ship length (cm) | 12.9 |
| Ship width (cm) | 9.7 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Input Voltage | Ip Rating | Case Material | Mounting | Phase | Status Indicator | Style | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ABLS1A24031 | 100-240V AC/140-340V DC | IP20 | Plastic Case | Din Rail | Single | Green LED | Switching | - | €245.79 | |
 |
ABLP1A12085 | 100-240V AC | IP10 | - | DIN Rail | Single | Green LED | - | - | €178.73 | |
 |
ABLP1A24062 | 100-120/200-240V AC | IP10 | Aluminum | DIN Rail | Single | Green LED | Switching | Not Applicable | €195.98 |
