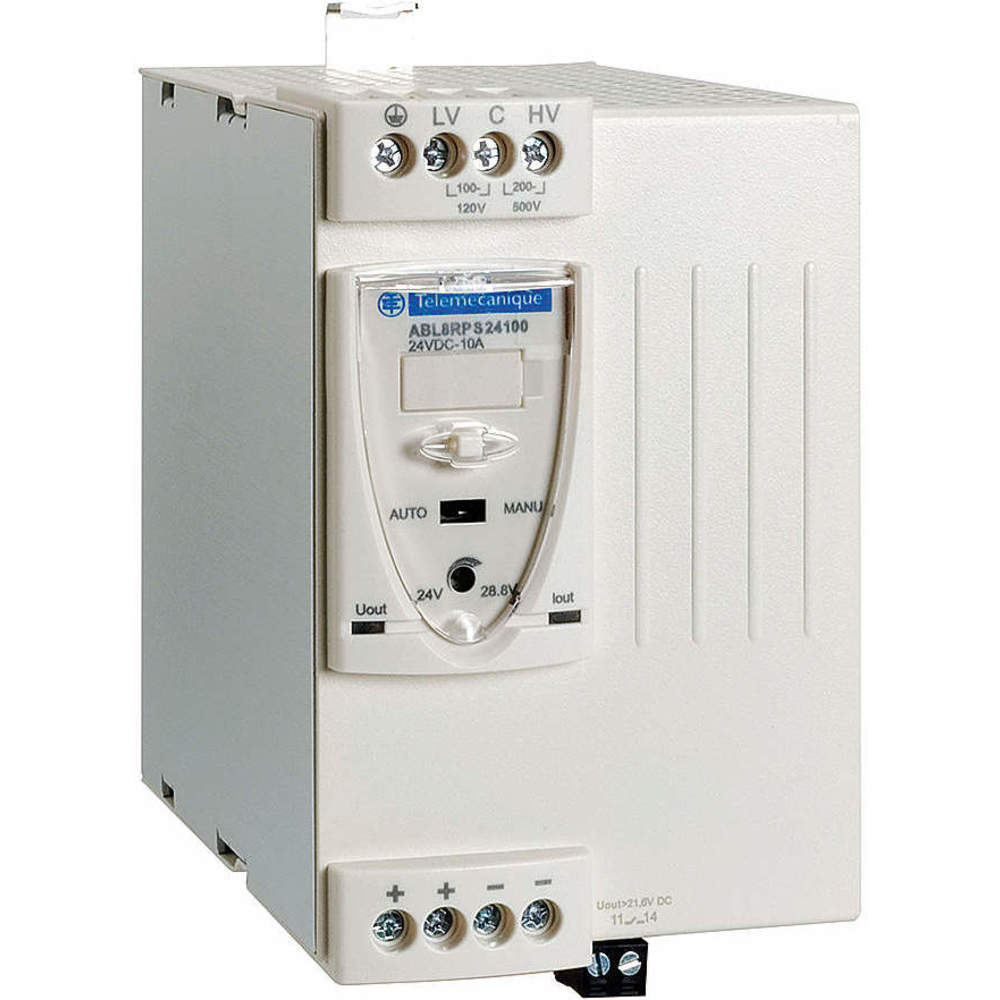

SCHNEIDER ELECTRIC ABL8RPS24100 Dc Power Supply 24vdc 10a 50/60hz

Schneider Electric ABL8RPS24100 DC power supply is a Modicon regulated switch mode power supply (SMPS) unit that supplies 24VDC at 10A direct current at a rated input of 100 to 500VAC & a rated power output of 240W. It is suitable for supplying the DC voltage required for automation equipment & simple machines where extreme compactness is necessary. This Schneider ABL8RPS24100 modular power supply unit installs vertically on DIN rails for industrial use in applications, such as conveying, control, packaging, food & beverage, oil & gas & mining.

Features:

• Schneider Electric ABL8RPS24100 DC power supply allows single phase input from 100 to 120VAC and phase to phase input from 200 to 500VAC through its screw type terminals.
• Its outlet coupling can be in both parallel & series configurations.
• This Schneider power supply unit offering 24VDC has a PFC (Power Factor Correction) filter or an anti-harmonic filter for impeding low-frequency harmonic currents and preventing damage to the unit.
• It is equipped with LED diagnostics indicators in the front for output voltage & current to troubleshoot problems instantly.
• This Schneider Electric ABL8RPS24100 power supply unit is IP20 rated for conforming to EN/IEC 60529 standard.

Compatible Accessories:

• Thermal Magnetic Circuit Breakers: These circuit breakers protect this Schneider Electric ABL8RPS24100 unit from electrical damage.
• Functional Modules: Buffer modules, battery check / control modules with batteries and redundancy modules ensure service continuity even during a power outage.

Standards and Approvals:

• CE
• UL
• CSA
• KC
• EAC
• RCM
• EN/IEC 62368-1
• REACh
• RoHS

Frequently Asked Questions:

Q. What is the advantage of automatic reset on the safety features of this DC power supply unit?

A. Automatic reset in this Schneider Electric ABL8RPS24100 power supply unit allows short-term electric & thermal faults to be cleared for restarting the connected systems without disturbing on-duty personnel.

Q. What safety features are available in this Schneider Electric ABL8RPS24100 power supply unit?

A.

• Protection against overload: can be manually or automatically reset
• Protection against overvoltage of 30 to 32V: can be manually reset
• Protection against short-circuits: can be manually or automatically reset
• Protection against undervoltage by tripping below 21.6V
• Thermal protection: automatically resets when the unit cools down

Q. What is the ambient air temperature for operating this Schneider Electric ABL8RPS24100 DC power supply unit?

A. This DC power supply unit can operate at temperatures ranging from -25 to 50 degrees C without derating at altitudes below 2000 m.
