SCHNEIDER ELECTRIC 9AS7D24 Enclosed Power Relay, Surface Mounted, 24VDC, 5 Pins/Terminals, Spdt | CU2BFF 6CWZ5

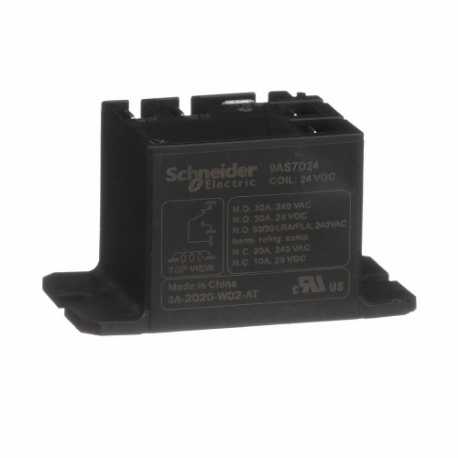

SCHNEIDER ELECTRIC 9AS7D24 Enclosed Power Relay, Surface Mounted, 24VDC, 5 Pins/Terminals, Spdt

Item: CU2BFFModel: 9AS7D24Cross Ref: 6CWZ5
Check Availability
In Stock

Get it by Monday, Dec 22

Request a Quote

Payment

Delivery

Product Specifications:

Item Enclosed Power Relay
Ac Contact Rating 3A @ 277V-5A (NC)10A @ 277V-5A (No)10A @ 277V-8A (NC)12A @ 240V-8A (NC)20A @ 240V-1 (NC)22A @ 120V-8A (No)30A @ 240V (No)30A @ 240V-8A (NC)30A @ 240V-8A (No)33A @ 277V-8A (NC)80A @ 240V-8A (No)98A @ 120V-8A (No)
Average Coil Consumption 0.9 W
Base Shape Square
Base Type Flange
Body Depth 0.11" , 1.976"
Body Height 1.094" , 1.97"
Body Width 1 2/25" , 1.083"
Cad Available Yes
Coil Resistance 660 ohms
Coil Voltage 24V DC
Contact Form SPDT
Contact Rating (ac) 3A @ 277V-5A (Nc), 10A @ 277V-5A (No), 10A @ 277V-8A (Nc), 12A @ 240V-8A (Nc), 20A @ 240V-1 (Nc), 22A @ 120V-8A (No), 30A @ 240V (No), 30A @ 240V-8A (Nc), 30A @ 240V-8A (No), 33A @ 277V-8A (Nc), 80A @ 240V-8A (No), 98A @ 120V-8A (No)
Contacts Material Silver Alloy Contacts
Dc Contact Rating 10A @ 28V (Nc), 30A @ 28V (No)
Dielectric Strength 1500V Between Contacts With Micro Disconnection, 2500V AC Between Coil And Contact
Electrical Connection Tab
Electrical Connection Type Tab
Electrical Operating Durability 100000
Environmental Protection Sealed
Features Ballast Load Ratings, Class F Coil Insulation
Hp @ 120v 1 hp
Hp @ 240v 2 hp
Mechanical Operating Durability 10000000
Mfr. Series 9A Power Series
Motor Rating Yes
Mounting Bottom, Flange
Number Of Pins 5
Number Of Pins - Relay 5
Number Of Poles 1
Operate Time 20 ms
Operating Position Any Position
Overall Depth 1.09"
Overall Height 1.1"
Power Consumption 2.8 W
Power Consumption - Relay 2.8 W
Product Range Harmony
Push-to-test Button No Test Button
Rated Insulation Voltage 320V
Relay Mounting Bottom Flange
Relay Mounting Style Surface Top Flange
Release Time 10 ms
Resistance Properties Shock-Resistant, Vibration-Resistant
Response Time 20 ms
Sealing Sealed
Status Indicator No

Shipping Info:

Ship weight (kg) 0.05
Ship height (cm)5
Ship length (cm)0.28
Ship width (cm)2.74
Country of OriginCN

Product Variants

ProductModelRelay Mounting StyleContact FormPush-to-test ButtonElectrical Connection TypeNumber Of Pins/terminalsCoil VoltageCurrent RatingElectrical ConnectionPrice
SCHNEIDER ELECTRIC RPF2AB7 Enclosed Power Relay 30A 24VAC DPST | AF6NVL 1DPP3 RPF2AB7Din-Rail, SurfaceDpst-NoNo Test ButtonTab624V AC30ATab€31.48
SCHNEIDER ELECTRIC RPF2AF7 Enclosed Power Relay 30A 120VAC DPST | AF6NVM 1DPP4 RPF2AF7-----120V AC30ATab€31.48
SCHNEIDER ELECTRIC RPF2AP7 Enclosed Power Relay 30A 230VAC DPST | AF6NVN 1DPP5 RPF2AP7Din-Rail, SurfaceDpst-NoNo Test ButtonTab6230V AC30ATab€31.48
SCHNEIDER ELECTRIC RPF2BJD Enclosed Power Relay 30A 12VDC DPDT | AF6NVP 1DPP6 RPF2BJDDin-Rail, SurfaceDPDTNo Test ButtonTab812V DC30ATab€33.73
SCHNEIDER ELECTRIC RPF2BBD Enclosed Power Relay 30A 24VDC DPDT | AF6NVQ 1DPP7 RPF2BBDDin-Rail, SurfaceDPDTNo Test ButtonTab824V DC30ATab€33.73
SCHNEIDER ELECTRIC RPF2BB7 Enclosed Power Relay 30A 24VAC DPDT | AF6NVR 1DPP9 RPF2BB7Din-Rail, SurfaceDPDTNo Test ButtonTab824V AC30ATab€33.73
SCHNEIDER ELECTRIC RPF2BF7 Enclosed Power Relay 30A 120VAC DPDT | AF6NVT 1DPR1 RPF2BF7Din-Rail, SurfaceDPDTNo Test ButtonTab8120V AC30ATab€33.73
