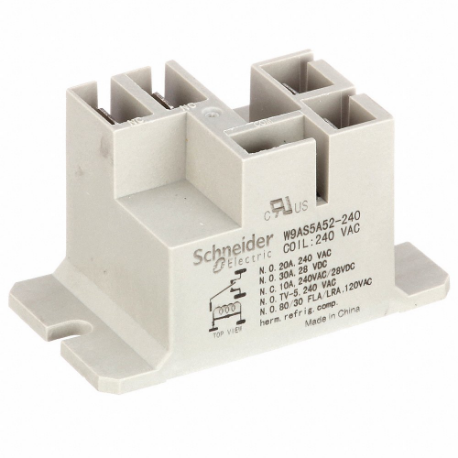

SCHNEIDER ELECTRIC 9AS7A240 Enclosed Power Relay, Surface Mounted, 240VAC, 5 Pins/Terminals, Spdt | CU2BEU 6CWZ3

SCHNEIDER ELECTRIC 9AS7A240 Enclosed Power Relay, Surface Mounted, 240VAC, 5 Pins/Terminals, Spdt

Item: CU2BEUModel: 9AS7A240Cross Ref: 6CWZ3
Check Availability
In Stock

Get it by Tuesday, Jun 30

Request a Quote

Payment

Delivery

Product Specifications:

Item Enclosed Power Relay
Ac Contact Rating 3A @ 277V-5A (NC)10A @ 277V-5A (No)10A @ 277V-8A (NC)12A @ 240V-8A (NC)20A @ 240V-1 (NC)22A @ 120V-8A (No)30A @ 240V (No)30A @ 240V-8A (NC)30A @ 240V-8A (No)33A @ 277V-8A (NC)80A @ 240V-8A (No)98A @ 120V-8A (No)
Base Shape Square
Base Type Flange
Body Depth 0.11" , 1.976"
Body Height 1.094" , 1.97"
Body Width 1 2/25" , 1.083"
Cad Available Yes
Coil Resistance 13490 ohms
Contact Form SPDT
Contact Rating (ac) 3A @ 277V-5A (Nc), 10A @ 277V-5A (No), 10A @ 277V-8A (Nc), 12A @ 240V-8A (Nc), 20A @ 240V-1 (Nc), 22A @ 120V-8A (No), 30A @ 240V (No), 30A @ 240V-8A (Nc), 30A @ 240V-8A (No), 33A @ 277V-8A (Nc), 80A @ 240V-8A (No), 98A @ 120V-8A (No)
Contact Rating (dc) 10A @ 28V (NC), 30A @ 28V (NO)
Contacts Material Silver Alloy Contacts
Dc Contact Rating 10A @ 28V (Nc), 30A @ 28V (No)
Dielectric Strength 1500V Between Contacts With Micro Disconnection, 2500V AC Between Coil And Contact
Electrical Connection Tab
Electrical Connection Type Tab
Electrical Operating Durability 100000
Environmental Protection Sealed
Features Ballast Load Ratings, Class F Coil Insulation
Hp @ 120v 1 hp
Hp @ 240v 2 hp
Mechanical Operating Durability 10000000
Mfr. Series 9A Power Series
Motor Rating Yes
Mounting Bottom, Flange
No. Of Pins 5
No. Of Pins-relay 5
No. Of Pins/terminals 5
No. Of Poles 1
Operate Time 20 ms
Operating Position Any Position
Overall Depth 1.09"
Overall Height 1.1"
Power Consumption 2.6 VA
Power Consumption-relay 2.8 VA
Product Datasheet schneider-electric-9as7a240.pdf
Product Range Harmony
Push-to-test Button No Test Button
Rated Insulation Voltage 320V
Relay Mounting Bottom Flange
Relay Mounting Style Surface Top Flange
Release Time 10 ms
Resistance Properties Shock-Resistant, Vibration-Resistant
Response Time 20 ms
Sealing Sealed
Status Indicator No

Shipping Info:

Ship weight (kg) 0.05
Ship height (cm)5
Ship length (cm)0.28
Ship width (cm)2.74
Country of OriginCN

Documentation:

Datasheet

Product Variants

ProductModelContact FormPush-to-test ButtonRelay Mounting StyleElectrical Connection TypeCoil VoltageSocket CodeElectrical Operating DurabilityMechanical Operating DurabilityPrice
SCHNEIDER ELECTRIC RPF2AB7 Enclosed Power Relay 30A 24VAC DPST | AF6NVL 1DPP3 RPF2AB7DPST, NONo Test ButtonDIN Rail, SurfaceTab24V AC-1000005000000€19.88
SCHNEIDER ELECTRIC RPF2AF7 Enclosed Power Relay 30A 120VAC DPST | AF6NVM 1DPP4 RPF2AF7----120V AC---€19.88
SCHNEIDER ELECTRIC RPF2AP7 Enclosed Power Relay 30A 230VAC DPST | AF6NVN 1DPP5 RPF2AP7DPST, NONo Test ButtonDIN Rail, SurfaceTab230V AC-1000005000000€19.88
SCHNEIDER ELECTRIC RPF2BJD Enclosed Power Relay 30A 12VDC DPDT | AF6NVP 1DPP6 RPF2BJDDPDTNo Test ButtonDIN Rail, SurfaceTab12V DC-1000005000000€19.59
SCHNEIDER ELECTRIC RPF2BBD Enclosed Power Relay 30A 24VDC DPDT | AF6NVQ 1DPP7 RPF2BBDDPDTNo Test ButtonDIN Rail, SurfaceTab24V DC-1000005000000€19.59
SCHNEIDER ELECTRIC RPF2BB7 Enclosed Power Relay 30A 24VAC DPDT | AF6NVR 1DPP9 RPF2BB7DPDTNo Test ButtonDIN Rail, SurfaceTab24V AC-1000005000000€19.59
SCHNEIDER ELECTRIC RPF2BF7 Enclosed Power Relay 30A 120VAC DPDT | AF6NVT 1DPR1 RPF2BF7DPDTNo Test ButtonDIN Rail, SurfaceTab120V AC-1000005000000€19.59
