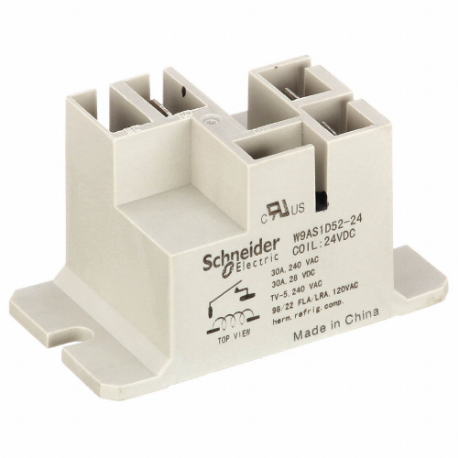

SCHNEIDER ELECTRIC 9AS3D24 Enclosed Power Relay, Surface Mounted, 24VDC, 4 Pins/Terminals, Spst-No
Item: CU2BFKModel: 9AS3D24Cross Ref: 6CWZ0
7 In Stock
Ships within 2 days via
10.00% off
€20.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Enclosed Power Relay |
| Ac Contact Rating | 10A @ 277V22A @ 20V24A @ 240V30A @ 240V98A @ 120V |
| Average Coil Consumption | 0.9 W |
| Base Type | Flange |
| Body Depth | 0.11" , 1.95" |
| Body Height | 1.1" , 1.97" |
| Body Width | 1 2/25" , 1.06" |
| Coil Resistance | 660 ohms |
| Coil Voltage | 24V DC |
| Contact Form | SPST-NO |
| Contact Rating (ac) | 10A @ 277V, 22A @ 20V, 24A @ 240V, 30A @ 240V, 98A @ 120V |
| Contacts Material | Silver Alloy Contacts |
| Dc Contact Rating | 30A @ 28V |
| Dielectric Strength | 1500V Between Contacts With Micro Disconnection, 2500V AC Between Coil And Contact |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Sealed |
| Features | Class F Coil Insulation |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 2 hp |
| Load Amps | 30A |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | 9A Power Series |
| Motor Rating | Yes |
| Mounting | Bottom, Flange |
| Number Of Pins | 4 |
| Number Of Pins - Relay | 4 |
| Number Of Poles | 1 |
| Operate Time | 20 ms |
| Operating Position | Any Position |
| Overall Depth | 1.09" |
| Overall Height | 1.1" |
| Power Consumption | 2.8 W |
| Power Consumption - Relay | 2.8 W |
| Product Datasheet | schneider-electric-9as3d24.pdf |
| Product Range | Harmony |
| Push-to-test Button | No Test Button |
| Rated Insulation Voltage | 320V |
| Relay Mounting | Bottom Flange |
| Relay Mounting Style | Surface Top Flange |
| Release Time | 10 ms |
| Response Time | 20 ms |
| Sealing | Sealed |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 5 |
| Ship length (cm) | 0.28 |
| Ship width (cm) | 2.74 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Number Of Pins/terminals | Electrical Connection Type | Coil Voltage | Current Rating | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 24V AC | 30A | - | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | - | €31.48 | |
| RPF2AP7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 230V AC | 30A | - | €31.48 | |
| RPF2BJD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 12V DC | 30A | - | €33.73 | |
| RPF2BBD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V DC | 30A | - | €33.73 | |
| RPF2BB7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V AC | 30A | - | €33.73 | |
| RPF2BF7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 120V AC | 30A | - | €33.73 |
