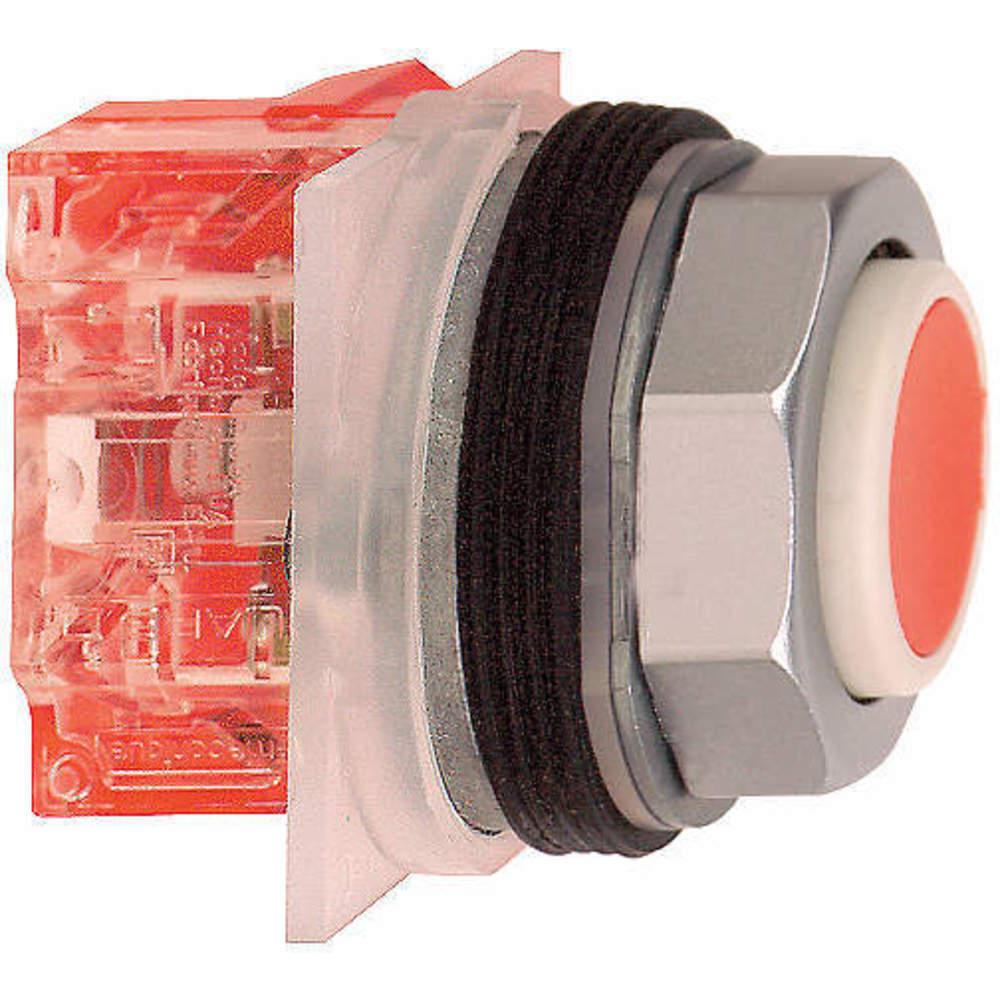

SCHNEIDER ELECTRIC 9001KR3RH6 Non-illuminated Push Button 30mm Flush 1nc Red
Item: AG7DEJModel: 9001KR3RH6Cross Ref: 5FZN0
7 In Stock
Ships within 2 days via
10.00% off
€121.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Metal |
| Bezel Material | Metal |
| Cad Overall Depth | 56 mm |
| Cad Overall Height | 45 mm |
| Cad Overall Width | 48 mm |
| Cap/operator Or Lens Colour | Red |
| Color | Red |
| Contact Form | 1NC |
| Contact Rating | 10A @ 600V AC |
| Conventional Free Air Thermal Current | 10A |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Device Presentation | Complete Product |
| Display Qty | 1 |
| Features | Finger-Safe Terminals |
| Head Material | Metal |
| Head/lens Color | Red |
| Ip Rating | IP66 |
| Legend | No Legend |
| Manufacturer Warranty Length | 18 Months |
| Material | Metal |
| Mechanical Operating Durability | 5 x 10^6 |
| Mounting Diameter | 30 mm |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Operator Voltage Rating - Maximum | 600V AC |
| Overall Depth | 2.2" |
| Overall Height | 1.77" |
| Overall Width | 1.89" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | 9001K Series |
| Shape Of Screw Head | Cross Slotted |
| Shape Of Signaling Unit Head | Octagonal |
| Terminal Connection | Screw Clamp |
| Terminal Connection Type | Pressure Plate |
| Type Of Operator | No Guard |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 5.08 |
| HS code | 8536509031 |
| Country of Origin | MX |
Product Variants
| Product | Model | Type Of Operator | Contact Form | Ip Rating | Bezel Material | Diameter | Action Type | Nema Rating | Legend | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9001KR1BH5 | Full Guard | 1NO | IP66 | Metal | - | Momentary | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | No Legend | €134.68 | |
|
9001KR1BH6 | Full Guard | 1NC | IP66 | Metal | - | Momentary | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | No Legend | €134.68 | |
 |
9001KR1RH13 | Full Guard | SPDT | IP66 | Metal | - | Momentary | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | No Legend | €323.32 | |
 |
9001KR1GH13 | Full Guard | SPDT | IP66 | Metal | - | Momentary | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | No Legend | €323.32 | |
|
9001KR1GH5 | Full Guard | 1NO | IP66 | Metal | - | Momentary | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | No Legend | €134.68 | |
|
9001KR1GH6 | Full Guard | 1NC | IP66 | Metal | - | Momentary | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | No Legend | €134.68 | |
 |
9001KR1RH5 | Full Guard | 1NO | IP66 | Metal | - | Momentary | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | No Legend | €134.68 |
