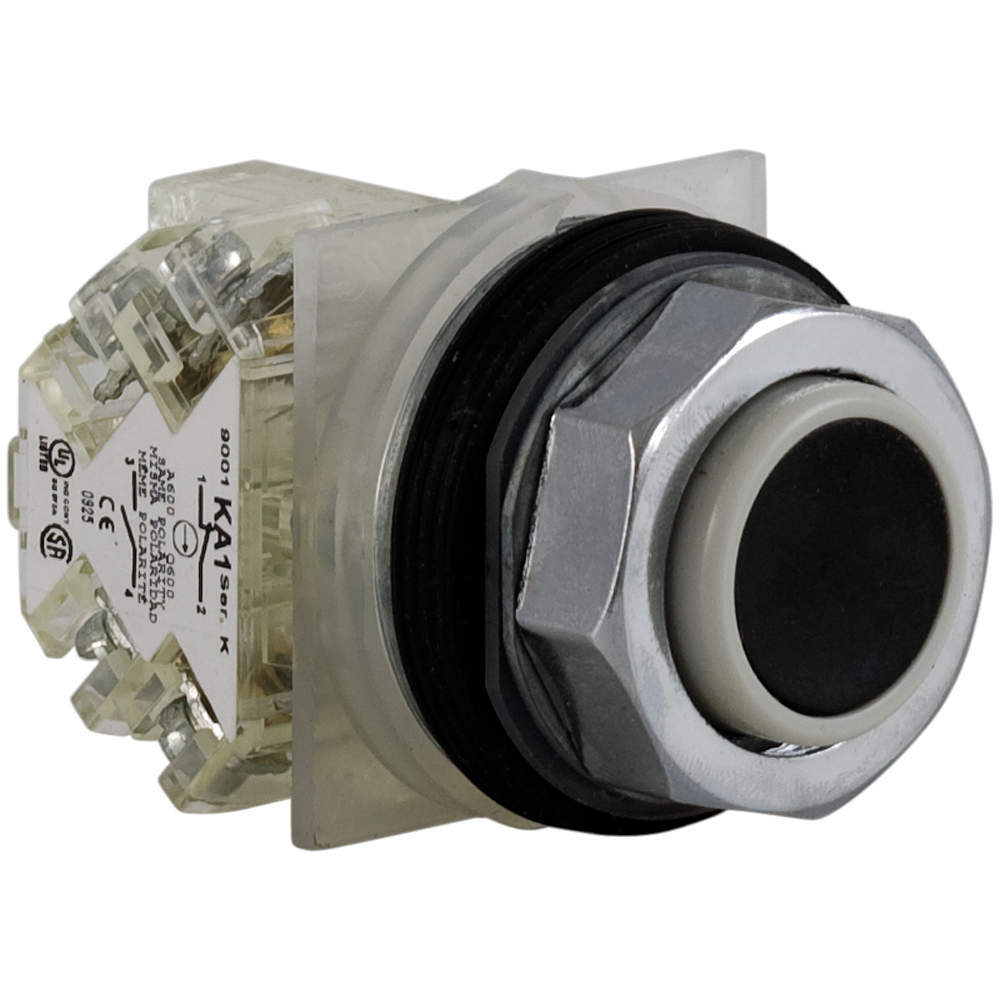

SCHNEIDER ELECTRIC 9001KR3BH13 Non-illuminated Push Button 30mm 1no/1nc Black
Item: AG7DEAModel: 9001KR3BH13Cross Ref: 5FZL2
7 In Stock
Ships within 2 days via
13.00% off
€201.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Metal |
| Bezel Material | Metal |
| Cap/operator Or Lens Colour | Black |
| Color | Black |
| Contact Form | SPDT |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Device Presentation | Complete Product |
| Display Qty | 1 |
| Features | Finger-Safe Terminals |
| Head Material | Metal |
| Head/lens Color | Black |
| Ip Rating | IP66 |
| Legend | No Legend |
| Material | Metal |
| Max. Operating Temp. | 140°F |
| Max. Operator Voltage Rating | 600V AC |
| Min. Operating Temp. | -22°F |
| Mounting Dia. | 30 mm |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Panel Mounting Hole Dia. | 30 mm |
| Product Datasheet | schneider-electric-9001kr3bh13.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | 9001K Series |
| Terminal Connection | Screw Clamp |
| Terminal Connection Type | Pressure Plate |
| Type Of Operator | No Guard |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 4.83 |
| HS code | 8536509031 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Bezel Material | Head Material | Color | Operator Material | Nema Enclosure Rating | Push Button Style | Ip Rating | Type Of Operator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9001KR1BH5 | Metal | Metal | Black | Metal | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13 | Flush | IP66 | Full Guard | €96.31 | |
|
9001KR1BH6 | Metal | Metal | Black | Metal | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | Flush | IP66 | Full Guard | €96.31 | |
 |
9001KR1RH13 | Metal | Metal | Red | Metal | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13 | Flush | IP66 | Full Guard | €231.21 | |
 |
9001KR1GH13 | Metal | Metal | Green | Metal | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13 | Flush | IP66 | Full Guard | €231.21 | |
|
9001KR1GH5 | Metal | Metal | Green | Metal | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13 | Flush | IP66 | Full Guard | €96.31 | |
|
9001KR1GH6 | Metal | Metal | Green | Metal | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | Flush | IP66 | Full Guard | €96.31 | |
 |
9001KR1RH5 | Metal | Metal | Red | Metal | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | Flush | IP66 | Full Guard | €96.31 |
