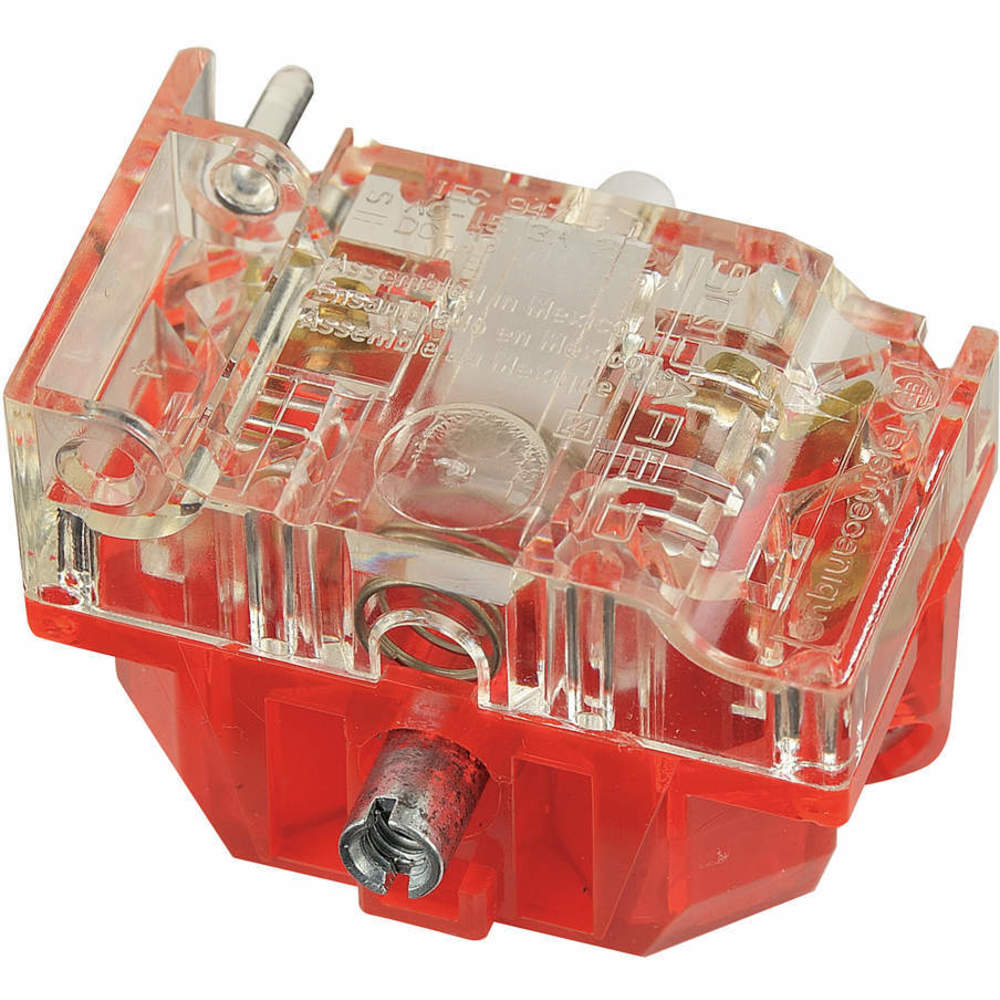

SCHNEIDER ELECTRIC 9001KA3 Contact Block, 1 NC, 30 mm
Item: AG7CNTModel: 9001KA3Cross Ref: 5B535
7 In Stock
Ships within 2 days via
5.00% off
€34.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contact Block |
| Ac Contact Rating | 1.2A @600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action Type | Momentary |
| Application | Finger Safe Operator |
| Color | Red |
| Compatible Operator | Push Button |
| Compatible With Series | 9001K, 9001Sk |
| Contact Form | 1NC |
| Contact Rating | 10A @ 250V AC |
| Conventional Free Air Thermal Amps | 10A |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Mounting Location | Rear |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Contact Rating Designation | A600/P600 |
| Panel Mounting Hole Dia. | 30 mm |
| Product Datasheet | schneider-electric-9001ka3.pdf |
| Shape Of Screw Head | Cross Slotted |
| Switch Action | Momentary |
| Terminal Connection Type | Screw Clamp Terminals |
| Type Of Operator | Finger Proof Shroud |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 5.11 |
| Ship width (cm) | 4.19 |
| HS code | 8536908085 |
| Country of Origin | MX |
Product Details:
- Harmony 9001K Series contact block designed for either making (turn ON) or breaking (turn OFF) an electrical circuit in industrial machinery
- Protected screw clamp terminals for resisting wire loosening and eliminating electrical shock hazards
- Silver alloy contacts for maximum conductivity & heat dissipation rates
- UL listed, CSA & NEMA certified
Documentation:
Product Variants
| Product | Model | Color | Panel Mounting Hole Dia. | Compatible With Series | Mounting Location | Nema Contact Rating Designation | Terminal Connection Type | Contact Form | Switch Action | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB4BZ1015 | Black | 22 mm | ZB4 Series | Rear | A600/Q600 | Spring Clamp Terminals | 1NO | Momentary | €32.02 | |
|
ZB4BZ1025 | Black | 22 mm | ZB4 Series | Rear | A600/Q600 | Spring Clamp Terminals | 1NC | Momentary | €32.21 | |
 |
9001KA51 | Black | 30 mm | 9001K, 9001Sk | Rear | C300/Q150 | Screw Clamp Terminals | 1NO/1NC | Momentary, Power Reed | €186.04 | |
 |
9001KA53 | Black | 30 mm | 9001K, 9001Sk | Rear | C300/Q150 | Screw Clamp Terminals | 1NC | Momentary, Power Reed | €135.56 | |
 |
ZB6E1B | Black | 16 mm | ZB6 Series | Rear | B300/R300 | Faster Connector | 1NO | Momentary | €9.43 | |
|
ZB6E2B | Black | 16 mm | ZB6 Series | Rear | B300/R300 | Faster Connector | 1NC | Momentary | €9.89 | |
 |
ZB6Z1B | Black | 16 mm | ZB6 Series | Rear | B300/R300 | Faster Connector | 1NO | Momentary | €12.71 |
