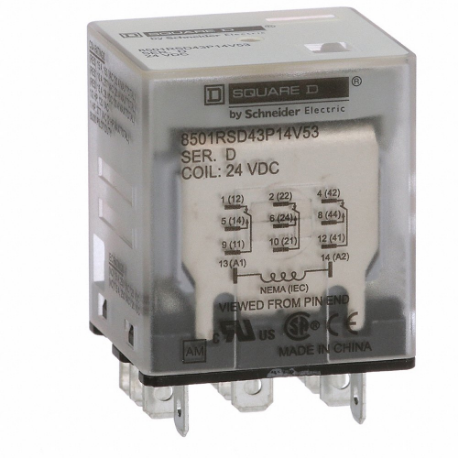

SCHNEIDER ELECTRIC 8501RSD43P14V53 Relay, Socket Mounted, 15 A Current Rating, 24V DC, 11 Pins/Terminals, 3Pdt
Item: CP4MAFModel: 8501RSD43P14V53Cross Ref: 55WG32
7 In Stock
Ships within 2 days via
€67.64 /unit
This product can only be shipped in multiples of 25Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Ac Contact Rating | 1.5A @ 240V3A @ 120V7A @ 277V10A @ 120V |
| Amps | 15A |
| Coil Voltage | 24V DC |
| Contact Form | 3PDT |
| Contact Rating (ac) | 1.5A @ 240V, 3A @ 120V, 7A @ 277V, 10A @ 120V |
| Dc Contact Rating | 10A @ 28V |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Hp @ 120v | 1/2 hp |
| Hp @ 240v | 1 hp |
| Mfr. Series | Square D 8501R Miniature Series |
| Motor Rating | Yes |
| No. Of Pins/terminals | 11 |
| Product Datasheet | schneider-electric-8501rsd43p14v53.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Sealing | Enclosed |
| Socket Code | E |
| Status Indicator | LED Indicatormechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Electrical Connection Type | Coil Voltage | Socket Code | Electrical Operating Durability | Mechanical Operating Durability | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DPST, NO | No Test Button | DIN Rail, Surface | Tab | 24V AC | - | 100000 | 5000000 | €19.88 | |
| RPF2AF7 | - | - | - | - | 120V AC | - | - | - | €19.88 | |
| RPF2AP7 | DPST, NO | No Test Button | DIN Rail, Surface | Tab | 230V AC | - | 100000 | 5000000 | €19.88 | |
| RPF2BJD | DPDT | No Test Button | DIN Rail, Surface | Tab | 12V DC | - | 100000 | 5000000 | €19.59 | |
| RPF2BBD | DPDT | No Test Button | DIN Rail, Surface | Tab | 24V DC | - | 100000 | 5000000 | €19.59 | |
| RPF2BB7 | DPDT | No Test Button | DIN Rail, Surface | Tab | 24V AC | - | 100000 | 5000000 | €19.59 | |
| RPF2BF7 | DPDT | No Test Button | DIN Rail, Surface | Tab | 120V AC | - | 100000 | 5000000 | €19.59 |
