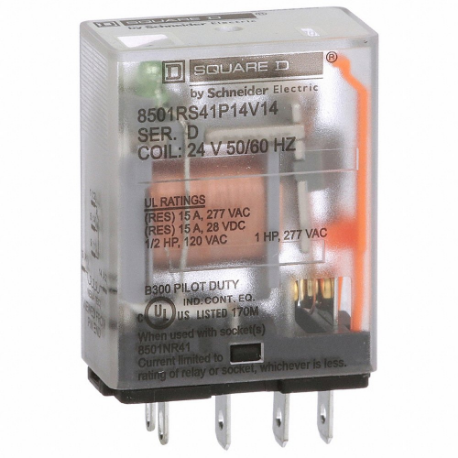

SCHNEIDER ELECTRIC 8501RS41P14V14 Relay, Socket Mounted, 15 A Current Rating, 24V AC, 5 Pins/Terminals, Spdt
Get it by Thursday, Aug 27
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Relay |
| Ac Contact Rating | 15A @ 120V15A @ 277V |
| Amps | 15A |
| Coil Voltage | 24V AC |
| Contact Form | SPDT |
| Contact Rating (ac) | 15A @ 120V, 15A @ 277V |
| Dc Contact Rating | 15A @ 28V |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Hp @ 120v | 1/2 hp |
| Hp @ 240v | 1 hp |
| Mfr. Series | Square D 8501R Miniature Series |
| Motor Rating | Yes |
| No. Of Pins/terminals | 5 |
| Product Datasheet | schneider-electric-8501rs41p14v14.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Sealing | Enclosed |
| Socket Code | L |
| Status Indicator | LED Indicatormechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Relay Mounting Style | Coil Voltage | Type | Frequency | Contact Form | Push-to-test Button | No. Of Pins/terminals | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2AF7 | - | 120V AC | - | 50/60 Hz | - | - | - | - | €23.38 | |
| RPF2AP7 | DIN Rail, Surface | 230V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2BJD | DIN Rail, Surface | 12V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BBD | DIN Rail, Surface | 24V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BF7 | DIN Rail, Surface | 120V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 |
