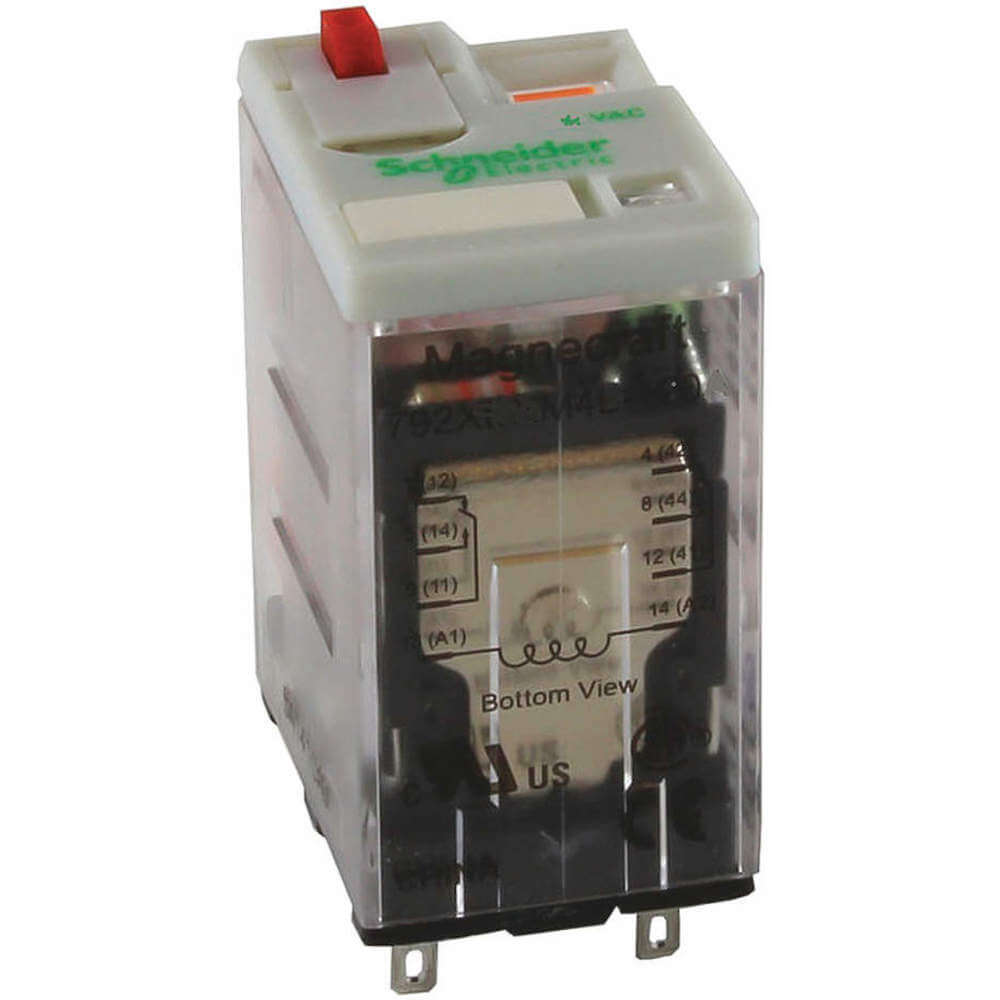

SCHNEIDER ELECTRIC 792XDX3M4L-12D Plug-In Relay 14 Pins Square 12VDC
Get it by Monday, Mar 2
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€27.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plug-In Relay |
| Ac Contact Rating | 3A @ 277V |
| Base Type | Square |
| Coil Voltage | 12V DC |
| Contact Form | 4PDT |
| Contact Material | Bifurcated |
| Contact Rating (ac) | 1A @ 250V, 2A @ 250V, 3A @ 120/240/277V |
| Current Rating | 3A |
| Dc Contact Rating | 1A @ 28V, 2A @ 28V, 3A @ 30V |
| Dielectric Strength | 1300V AC Between Contacts, 2000V AC Between Coil And Contact, 2000V AC Between Poles |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Horsepower @ 240v Ac | Not Rated |
| Hp @ 120v Ac | 1/16 hp |
| Mechanical Operating Durability | 10000000 |
| Motor Rated | Yes |
| Number Of Pins | 14 |
| Number Of Pins/terminals | 14 |
| Number Of Poles | 4 |
| Product Datasheet | schneider-electric-792xdx3m4l-12d.pdf |
| Push-to-test Button | Lockable Push Test Button |
| Relay Mounting Style | Socket |
| Series | 792 Series |
| Socket Code | G |
| Status Indicator | LED, Mechanical Flag |
| Status Indicator | LED and Mechanical Flag |
| Type | General Purpose |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.72 |
| Ship length (cm) | 3.99 |
| Ship width (cm) | 2.11 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Number Of Pins/terminals | Electrical Connection Type | Coil Voltage | Current Rating | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 24V AC | 30A | - | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | - | €31.48 | |
| RPF2AP7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 230V AC | 30A | - | €31.48 | |
| RPF2BJD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 12V DC | 30A | - | €33.73 | |
| RPF2BBD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V DC | 30A | - | €33.73 | |
| RPF2BB7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V AC | 30A | - | €33.73 | |
| RPF2BF7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 120V AC | 30A | - | €33.73 |
