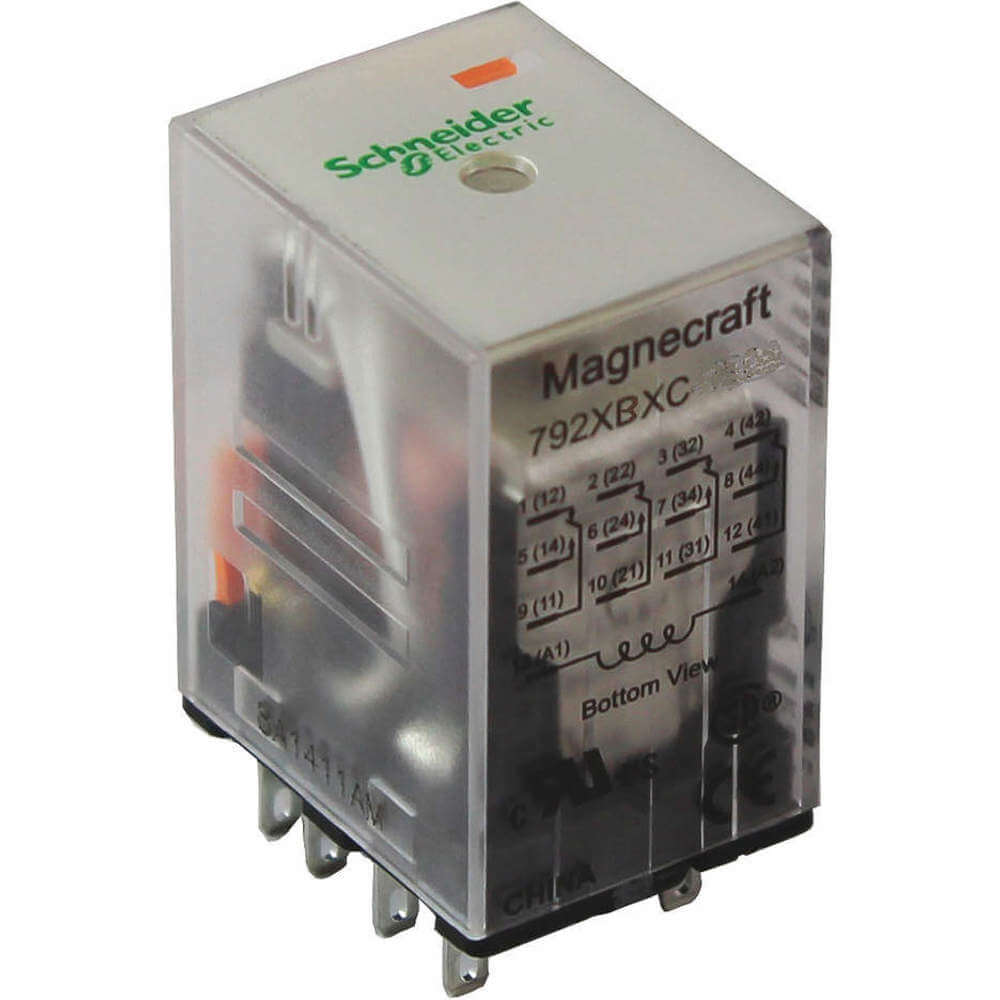

SCHNEIDER ELECTRIC 792XBXC-240A Plug-In Relay 8 Pins Square 240VAC
Item: AH8ZERModel: 792XBXC-240ACross Ref: 39DL38
7 In Stock
Ships within 2 days via
10.00% off
€15.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug-In Relay |
| Ac Contact Rating | 12A @ 277V |
| Base Type | Square |
| Coil Voltage | 240V AC |
| Contact Form | DPDT |
| Contact Material | Silver Alloy |
| Contact Rating (ac) | 6A @ Ac-1 (Nc), 12A @ 120V, 12A @ 277V, 12A @Ac-1 (No) |
| Current Rating | 12A |
| Dc Contact Rating | 6A @ DC-1 (Nc), 12A @ 30V, 12A @ DC-1 (No) |
| Dielectric Strength | 1300V AC Between Contacts, 2000V AC Between Coil And Contact, 2000V AC Between Poles |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Horsepower @ 120v Ac | 1/2 hp |
| Horsepower @ 240v Ac | Not Rated |
| Mechanical Operating Durability | 10000000 |
| Motor Rated | Yes |
| Number Of Pins | 8 |
| Number Of Pins/terminals | 8 |
| Number Of Poles | 2 |
| Push-to-test Button | Manual Push Test Button |
| Relay Mounting Style | Socket |
| Series | 792 Series |
| Socket Code | K |
| Socket Code | Q |
| Status Indicator | Mechanical Flag |
| Type | General Purpose |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.72 |
| Ship length (cm) | 4.17 |
| Ship width (cm) | 1.4 |
| Country of Origin | CN |
Product Variants
| Model | Number Of Poles | Coil Voltage | Contact Form | Ac Contact Rating | Number Of Pins | Status Indicator | Base Type | Push-to-test Button | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 750XBXRC-120A | 2 | 120V AC | DPDT | 10A @ 277V | 8 | Mechanical Flag | Octal | No Test Button | €38.01 | |
| 750XBXRC-12D | 2 | 12V DC | DPDT | 10A @ 277V | 8 | Mechanical Flag | Octal | No Test Button | €38.01 | |
| 750XBXRC-240A | 2 | 240V AC | DPDT | 10A @ 277V | 8 | Mechanical Flag | Octal | No Test Button | €38.01 | |
| 750XBXRC-24A | 2 | 24V AC | DPDT | 10A @ 277V | 8 | Mechanical Flag | Octal | No Test Button | €38.01 | |
| 750XBXRC-24D | 2 | 24V DC | DPDT | 10A @ 277V | 8 | Mechanical Flag | Octal | No Test Button | €38.01 | |
| 750XBXRM4L-120A | 2 | 120V AC | DPDT | 10A @ 277V | 8 | LED Indicator | Octal | Lockable Push Test Button | €47.05 | |
| 750XBXRM4L-12D | 2 | 12V DC | DPDT | 10A @ 277V | 8 | LED Indicator | Octal | Lockable Push Test Button | €47.05 |
