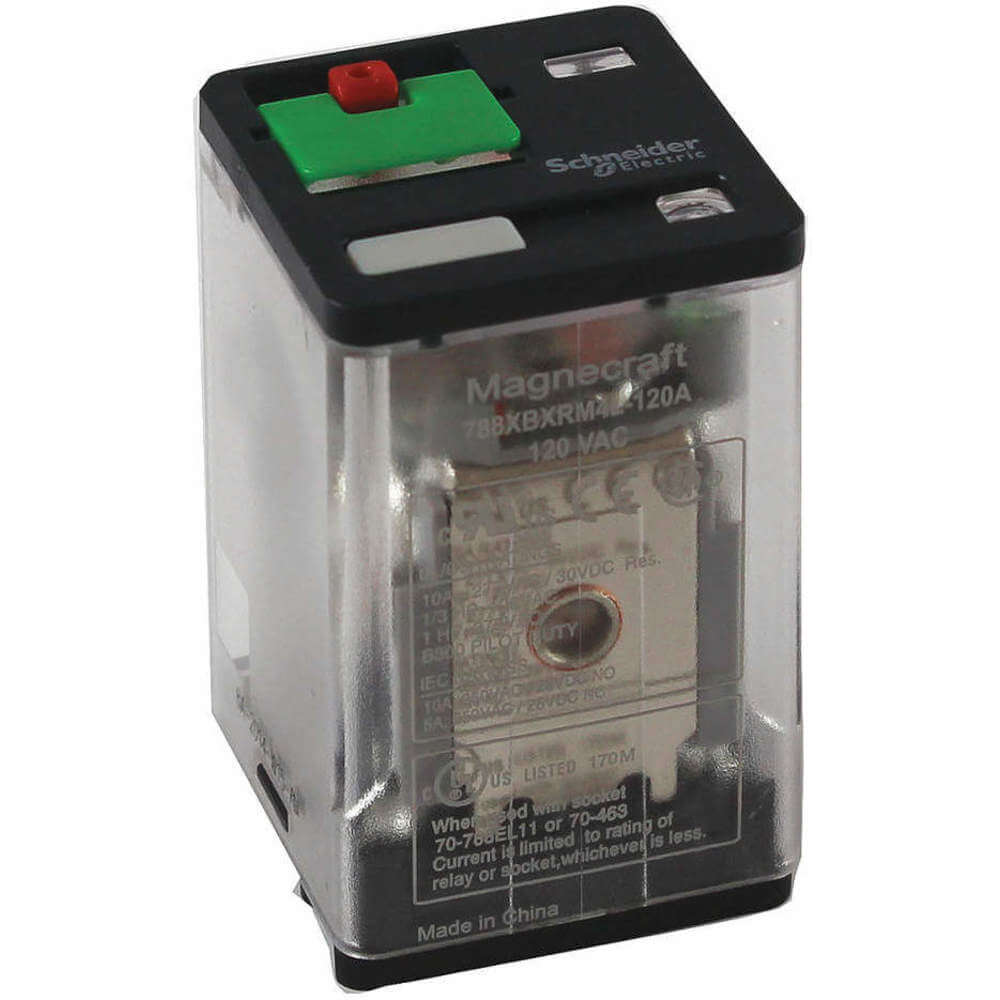

SCHNEIDER ELECTRIC 788XCXRM4L-120A Plug-In Relay 11 Pins Square 120VAC
Item: AH4TNXModel: 788XCXRM4L-120ACross Ref: 35KR75
7 In Stock
Ships within 2 days via
10.00% off
€48.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug-In Relay |
| Ac Contact Rating | 10A @ 277V |
| Base Type | Square |
| Coil Voltage | 120V AC |
| Contact Form | 3PDT |
| Contact Material | Silver Alloy |
| Contact Rating (ac) | 5A @ 250V-1 (NC), 10A @ 277V |
| Current Rating | 10A |
| Dc Contact Rating | 10A @ 28V |
| Dielectric Strength | 1500V AC Between Contacts, 2000V AC Between Poles, 2500V AC Between Coil And Contact |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Horsepower @ 240v Ac | 1/2 hp |
| Hp @ 120v Ac | 1/3 hp |
| Mechanical Operating Durability | 5000000 |
| Motor Rated | Yes |
| Number Of Pins | 11 |
| Number Of Pins/terminals | 11 |
| Number Of Poles | 3 |
| Push-to-test Button | Lockable Push Test Button |
| Relay Mounting Style | Socket |
| Sealing | Enclosed |
| Series | 788R Series |
| Socket Code | C |
| Status Indicator | LED Indicator |
| Status Indicator | LED and Mechanical Flag |
| Type | General Purpose |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 5.31 |
| Ship width (cm) | 3.51 |
| Country of Origin | CN |
Product Variants
| Model | Number Of Poles | Coil Voltage | Contact Form | Ac Contact Rating | Number Of Pins | Status Indicator | Base Type | Push-to-test Button | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 750XBXRC-120A | 2 | 120V AC | DPDT | 10A @ 277V | 8 | Mechanical Flag | Octal | No Test Button | €38.01 | |
| 750XBXRC-12D | 2 | 12V DC | DPDT | 10A @ 277V | 8 | Mechanical Flag | Octal | No Test Button | €38.01 | |
| 750XBXRC-240A | 2 | 240V AC | DPDT | 10A @ 277V | 8 | Mechanical Flag | Octal | No Test Button | €38.01 | |
| 750XBXRC-24A | 2 | 24V AC | DPDT | 10A @ 277V | 8 | Mechanical Flag | Octal | No Test Button | €38.01 | |
| 750XBXRC-24D | 2 | 24V DC | DPDT | 10A @ 277V | 8 | Mechanical Flag | Octal | No Test Button | €38.01 | |
| 750XBXRM4L-120A | 2 | 120V AC | DPDT | 10A @ 277V | 8 | LED Indicator | Octal | Lockable Push Test Button | €47.05 | |
| 750XBXRM4L-12D | 2 | 12V DC | DPDT | 10A @ 277V | 8 | LED Indicator | Octal | Lockable Push Test Button | €47.05 |
