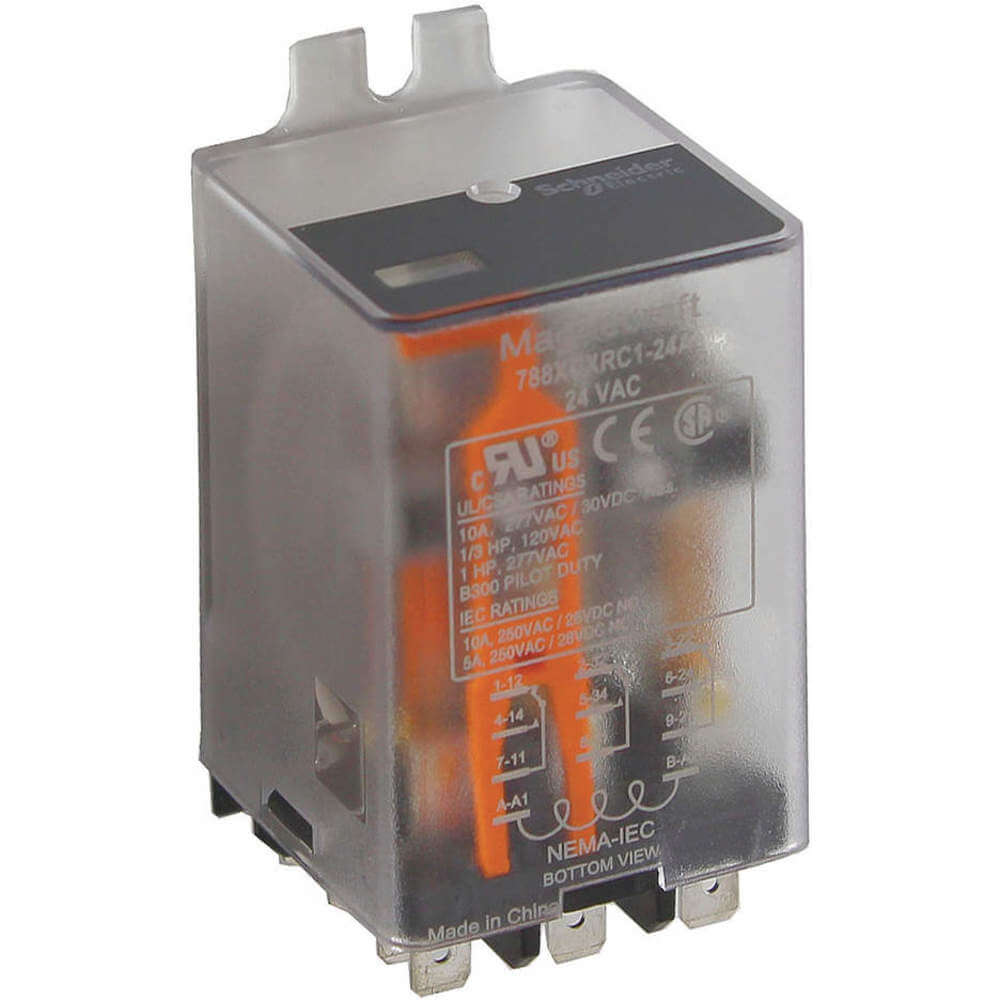

SCHNEIDER ELECTRIC 788XCXRC1-240A Relay Side Flange 3VA 3PDT 240VAC
Get it by Friday, Feb 13
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Mount Relay |
| Ac Contact Rating | 10A @ 277V |
| Amps Rating | 10A |
| Base Shape | Square |
| Body Depth | 1 2/5" , 1.9" |
| Body Height | 1 2/5" , 2 3/4" |
| Body Width | 1.37" , 1.38" |
| Coil Resistance | 6800 ohms |
| Coil Voltage | 240V AC |
| Contact Form | 3PDT |
| Contact Material | Silver Alloy |
| Contact Rating (ac) | 5A @ 250V-1 (NC), 10A @ 277V |
| Contacts Material | Gold Flashed, Silver Alloy |
| Current Rating | 10A |
| Dc Contact Rating | 10A @ 28V |
| Dielectric Strength | 1500V AC Between Contacts, 2000V AC Between Poles, 2500V AC Between Coil And Contact |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Enclosed |
| Flat Pin Width | 0.189" |
| Hp @ 120v | 1/3 hp |
| Mechanical Operating Durability | 5000000 |
| Mfr. Series | 788R Series |
| Min. Switching Amps | 10 mA |
| Motor Rating | Yes |
| Mounting | Side |
| Number Of Pins | 11 |
| Number Of Pins - Relay | 11 |
| Number Of Pins/terminals | 11 |
| Number Of Poles | 3 |
| Operating Time | 20 ms |
| Overall Depth | 2.77" |
| Overall Height | 2 3/4" |
| Pin Shape | Flat |
| Power Consumption | 3 VA |
| Power Consumption - Relay | 3 VA |
| Product Datasheet | schneider-electric-788xcxrc1-240a.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting | Side Flange |
| Relay Mounting Style | Surface (Side Flange) |
| Resistance | 6800 ohms |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Response Time | 20 ms |
| Sealing | Enclosed |
| Status Indicator | Mechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 3.51 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Number Of Pins/terminals | Electrical Connection Type | Coil Voltage | Current Rating | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 24V AC | 30A | - | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | - | €31.48 | |
| RPF2AP7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 230V AC | 30A | - | €31.48 | |
| RPF2BJD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 12V DC | 30A | - | €33.73 | |
| RPF2BBD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V DC | 30A | - | €33.73 | |
| RPF2BB7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V AC | 30A | - | €33.73 | |
| RPF2BF7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 120V AC | 30A | - | €33.73 |
