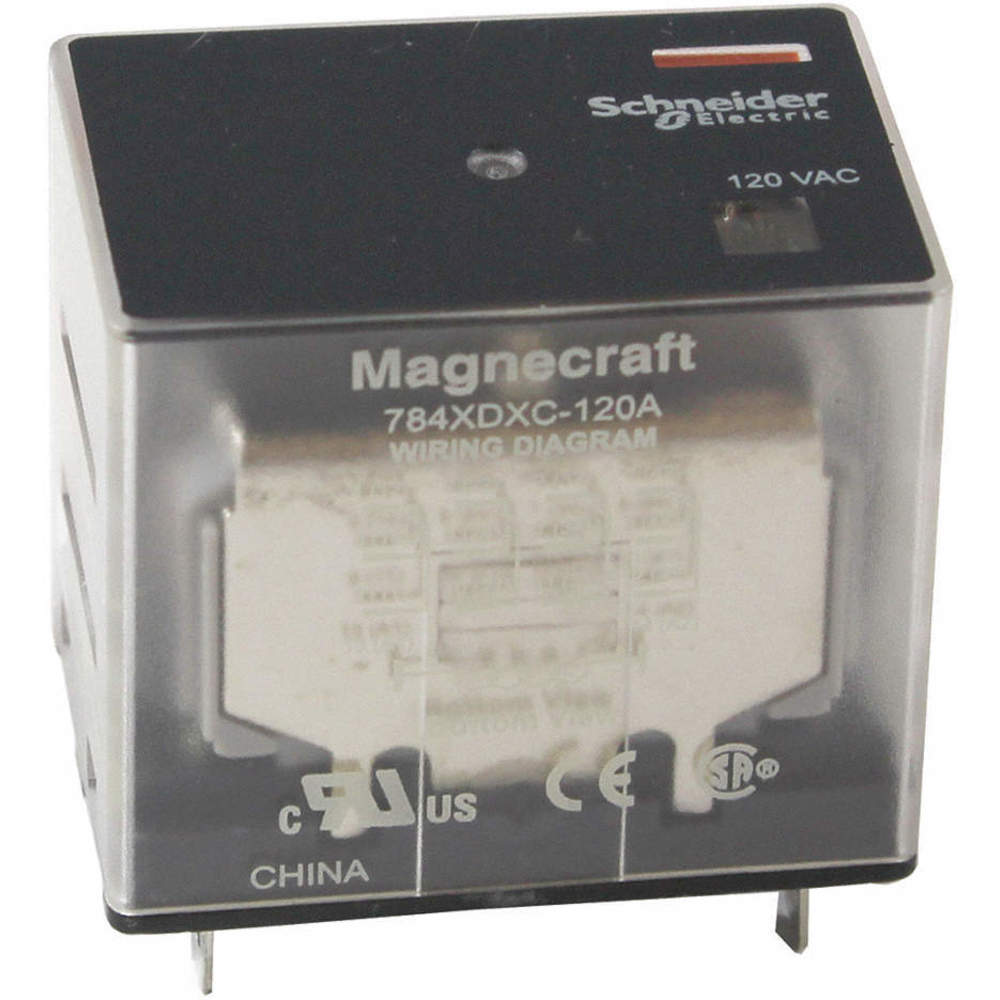

SCHNEIDER ELECTRIC 784XDXC-120A Plug-In Relay, Square Base, General Purpose, 14-Pin, 15A At 120V
Item: AX3MNBModel: 784XDXC-120ACross Ref: 6CWH9
7 In Stock
Ships within 2 days via
10.00% off
€34.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug-In Relay |
| Ac Contact Rating | 15A @ 120V, 12A @ 277V |
| Base Type | Square |
| Coil Va Rating | 1.5 VA |
| Coil Voltage | 120V AC |
| Contact Form | 4PDT |
| Contact Material | Silver Alloy |
| Contact Rating (ac) | 7.55A @ 250V, 10A @ 151/277V, 15A @ 120 to 277/120/150/250V |
| Contact Rating (dc) | 7.55A @ 28V (Nc), 15A @ 28V (No) |
| Current Rating | 15A |
| Dc Contact Rating | 12A @ 28V |
| Dielectric Strength | 1500V AC Between Contacts, 2000V AC Between Coil And Contact, 2000V AC Between Poles |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Horsepower @ 120v Ac | 1/2 hp |
| Hp @ 240v Ac | 3/4 hp |
| Mechanical Operating Durability | 10000000 |
| Motor Rated | Yes |
| Number Of Pins | 14 |
| Number Of Pins/terminals | 14 |
| Number Of Poles | 4 |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Series | 784 Series |
| Socket Code | F |
| Status Indicator | Mechanical Flag |
| Type | General Purpose |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.72 |
| Ship length (cm) | 3.48 |
| Ship width (cm) | 4.06 |
| Country of Origin | CN |
Product Variants
| Product | Model | Coil Voltage | Contact Form | Ac Contact Rating | Dc Contact Rating | Number Of Poles | Number Of Pins | Socket Code | Status Indicator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
782XDXH10-240A | 240V AC | 4PDT | 3A @ 240V | 3A @ 28V | 4 | 14 | K | No | €160.91 | |
 |
783XCXM4L-24A | 24V AC | 3PDT | 15A @ 120V, 12A @ 277V | 12A @ 28V | 3 | 11 | E | LED, Mechanical Flag | €38.55 | |
|
782XDXH10-24D | 24V DC | 4PDT | 3A @ 240V | 3A @ 28V | 4 | 14 | K | No | €193.54 | |
 |
RXG13F7 | 120V AC | SPDT | 10A @ 250V | 10A @ 30V | - | 5 | H | LED Indicatormechanical Flag | €20.73 | |
 |
RXG23F7 | 120V AC | DPDT | 5A @ 250V | 5A @ 30V | - | 8 | K | LED Indicatormechanical Flag | €25.21 |
