SCHNEIDER ELECTRIC 750XBXH-12D Hermetically Sealed Relay, Socket Mounted, 12 A Current Rating, 12 VDC, 8 Pins/Terminals
Item: CU2BKLModel: 750XBXH-12DCross Ref: 6CVN5
7 In Stock
Ships within 2 days via
13.00% off
€196.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hermetically Sealed Relay |
| Ac Contact Rating | 12A @ 120V12A @ 240V |
| Amps | 12A |
| Coil Voltage | 12V DC |
| Contact Form | DPDT |
| Contact Rating (ac) | 12A @ 120V, 12A @ 240V |
| Dc Contact Rating | 12A @ 28V |
| Dielectric Strength | 1500V AC Between Open Contacts, 1600V AC Between Coil And Contact, 1600V AC Between Poles |
| Electrical Connection | Pin |
| Electrical Connection Type | Pin |
| Electrical Operating Durability | 100000 |
| Hp @ 120v | 1/3 hp , 333/1000 hp |
| Hp @ 240v | 1/2 hp |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | 750H HAZ LOCATION Series |
| Motor Rating | Yes |
| No. Of Pins | 8 |
| No. Of Pins/terminals | 8 |
| Product Datasheet | schneider-electric-750xbxh-12d.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Sealing | Enclosed |
| Socket Code | A |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 4.11 |
| Ship length (cm) | 5.26 |
| Ship width (cm) | 3.66 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Coil Voltage | Amps | Hp @ 120v | Hp @ 240v | Sealing | No. Of Pins | No. Of Pins/terminals | Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
750XBXH-240A | 240V AC | 12A | 1/3 hp | 1/2 hp | Enclosed | 8 | 8 | DPDT | €160.79 | |
 |
782XDXH10-120A | 120V AC | 3A | 1/16 hp | 1/8 hp | Hermetically Sealed | 14 | 14 | 4PDT | €181.32 | |
 |

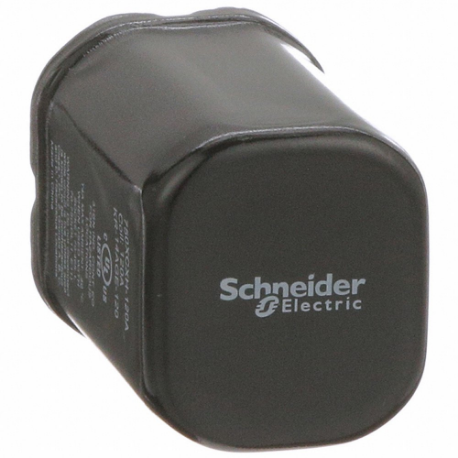

750XCXH-120A | 120V AC | 12A | 1/3 hp | 1/2 hp | Enclosed | 11 | 11 | 3PDT | €197.25 | |
 |
750XBXH-120A | 120V AC | 12A | 1/3 hp | 1/2 hp | Enclosed | 8 | 8 | DPDT | €225.34 | |
 |

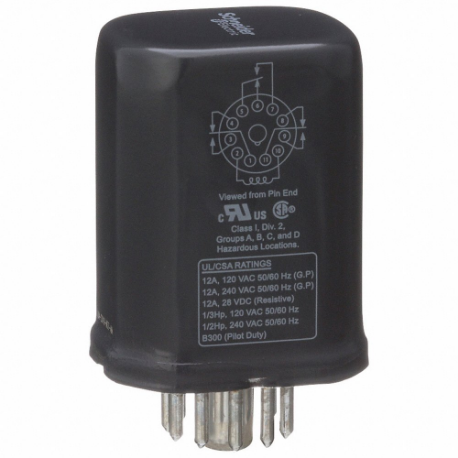

750XCXH-24A | 24V AC | 12A | 1/3 hp | 1/2 hp | Enclosed | 11 | 11 | 3PDT | - | RFQ
|
 |

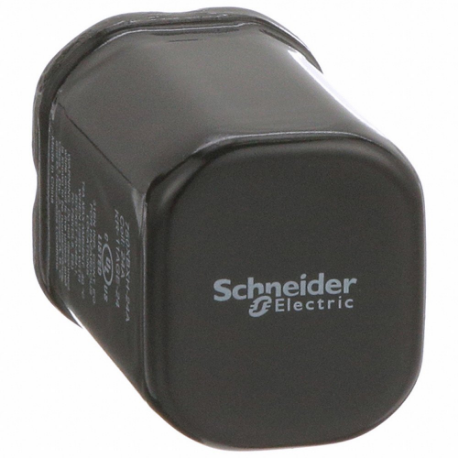

750XBXH-24A | 24V AC | 12A | 1/3 hp | 1/2 hp | Enclosed | 8 | 8 | DPDT | €225.34 | |
 |
750XCXH-24D | 24V DC | 12A | 1/3 hp | 1/2 hp | Enclosed | 11 | 11 | 3PDT | €278.85 |
