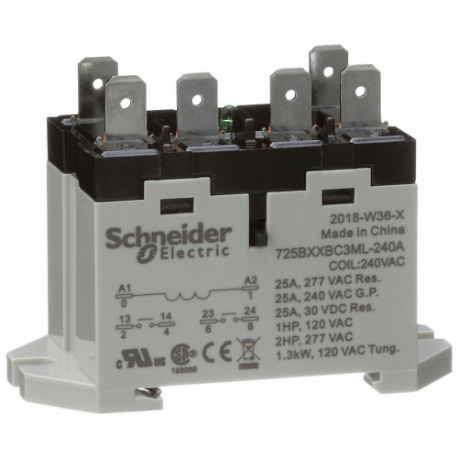

SCHNEIDER ELECTRIC 725BXXBC3ML-240A Enclosed Power Relay, Din-Rail & Surface Mounted, 25 A Current Rating, 240VAC, Dpst-No
Item: CU2BDFModel: 725BXXBC3ML-240ACross Ref: 6CVH1
7 In Stock
Ships within 2 days via
10.00% off
€38.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Enclosed Power Relay |
| Ac Contact Rating | 25A @ 240/277V |
| Average Coil Consumption | 2.5 VA |
| Base Shape | Square |
| Body Depth | 1.07" , 1.3" |
| Body Height | 1.3" , 1.94" |
| Body Width | 2.67" |
| Coil Resistance | 21000 ohms |
| Coil Voltage | 240V AC |
| Contact Form | Dpst-No |
| Contacts Material | Silver Alloy Contacts |
| Control Circuit Voltage | 240V |
| Current Rating | 25A |
| Dc Contact Rating | 25A @ 28/30V |
| Dielectric Strength | 2000V AC Between Poles, 4000V AC Between Coil And Contact |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Flat Pin Width | 1/4" |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 2 hp |
| Mechanical Operating Durability | 5000000 |
| Mfr. Series | Harmony 725 Power Series |
| Min. Switching Amps | 100 mA |
| Motor Rating | Yes |
| Number Of Pins | 6 |
| Number Of Pins - Relay | 6 |
| Number Of Pins/terminals | 6 |
| Number Of Poles | 2 |
| Overall Depth | 1.94" |
| Overall Height | 1.94" |
| Power Consumption | 2.5 VA |
| Power Consumption - Relay | 2.5 VA |
| Product Range | Harmony Electromechanical Relays |
| Push-to-test Button | Manual Push Test Button |
| Push-to-test Method | Test Button |
| Relay Mounting Style | Din Rail, Surface |
| Response Time | 30 ms |
| Status Indicator | LED Indicator |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 2.72 |
| Ship width (cm) | 6.78 |
| Country of Origin | CN |
Product Variants
| Model | Relay Mounting Style | Contact Form | Push-to-test Button | Electrical Connection Type | Number Of Pins/terminals | Coil Voltage | Current Rating | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Din-Rail, Surface | Dpst-No | No Test Button | Tab | 6 | 24V AC | 30A | Tab | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | Tab | €31.48 | |
| RPF2AP7 | Din-Rail, Surface | Dpst-No | No Test Button | Tab | 6 | 230V AC | 30A | Tab | €31.48 | |
| RPF2BJD | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 12V DC | 30A | Tab | €33.73 | |
| RPF2BBD | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 24V DC | 30A | Tab | €33.73 | |
| RPF2BB7 | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 24V AC | 30A | Tab | €33.73 | |
| RPF2BF7 | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 120V AC | 30A | Tab | €33.73 |
