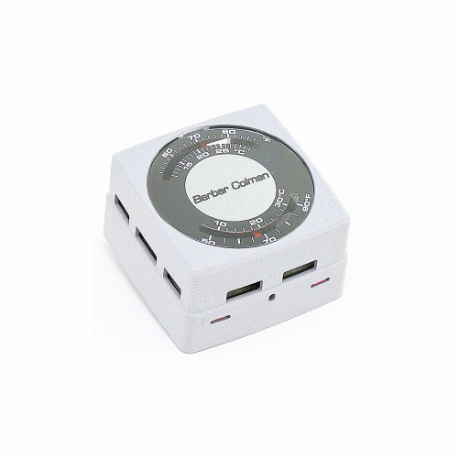

SCHNEIDER ELECTRIC 2212-118 Pneumatic Thermostat, Single Temp
Item: CU2CQAModel: 2212-118Cross Ref: 35YJ99
7 In Stock
Ships within 2 days via
10.00% off
€545.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pneumatic Thermostat |
| Air Connection Outside Dia. | 1/4" |
| Air Consumption | 15.6 SCIM |
| Air Flow Output | High Volume |
| Application | Heat Or Cool |
| Compatible System Type | Pneumatic Valves And Damper Actuators |
| Cover Color | Gray |
| Differential Type | Adjustable |
| Fits Brand | Schneider Electric |
| Fitting Connection | Barbed 3/16" |
| Fitting Connection Size | 0.188" |
| Fitting Connection Type | Barbed |
| Includes | 20-693 Tubing Kit, Mounting Kit |
| Includes Cover | Yes |
| Key Features | Leakproof, O-Ring Sealed, Spring-Loaded Self-Closing Branch Gauge Tap |
| Manual Indexing Switch | No |
| Max. Air Pressure | 30 psig |
| Max. Control Temp. | 85°F |
| Maximum Air Pressure | 30 psig |
| Min. Control Temp. | 55°F |
| Mounting Direction | Horizontal, Vertical |
| Mounting Location | Wall |
| Number Of Dials | 1 |
| Number Of Pipes | 2 |
| Overall Depth | 1 3/8" |
| Overall Height | 2 1/16" |
| Overall Width | 2 1/16" |
| Sensor Type | Bi Metallic Spring |
| Temp. Settings | Single Temperature |
| Temperature Scale | Celsius, Fahrenheit |
| Thermostat Action | Direct |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 5.24 |
| Ship length (cm) | 3.49 |
| Ship width (cm) | 5.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Application | Mounting Direction | Air Flow Output | Number Of Pipes | Temp. Settings | Temperature Scale | Number Of Dials | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TK-1711 | Heat Or Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €1,329.73 | |
 |
2214-121 | Heat And Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Celsius, Fahrenheit | 2 | 1 3/8" | €1,043.90 | |
 |
TK-1721 | Heat Or Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €2,500.69 | |
 |
TK-1301 | Heat And Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €1,335.55 | |
 |
TK-1741 | Heat And Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €1,710.05 | |
 |
TK-1281 | Heat And Cool | Horizontal/Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €1,460.13 | |
 |
TK-1201 | Heat And Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €1,386.33 |
